Sonance PS-C41RT WHITE (stk)

Varenummer: SON45165

From Sonance, the company that created the
architectural audio category comes a range
of professional loudspeakers that set a new
benchmark in sound quality and aesthetics for
commercial environments.
Sonance Professional Series includes a range of InCeiling, Pendant and Surface Mount Speakers that
deliver unequalled fidelity, extremely low distortion,
wide dispersion and a smooth power response. The
range feature Sonance’s Laminated Core Technology
transformer (SLCT), delivering full-fidelity sonic
performance in either 70V or 100V mode.

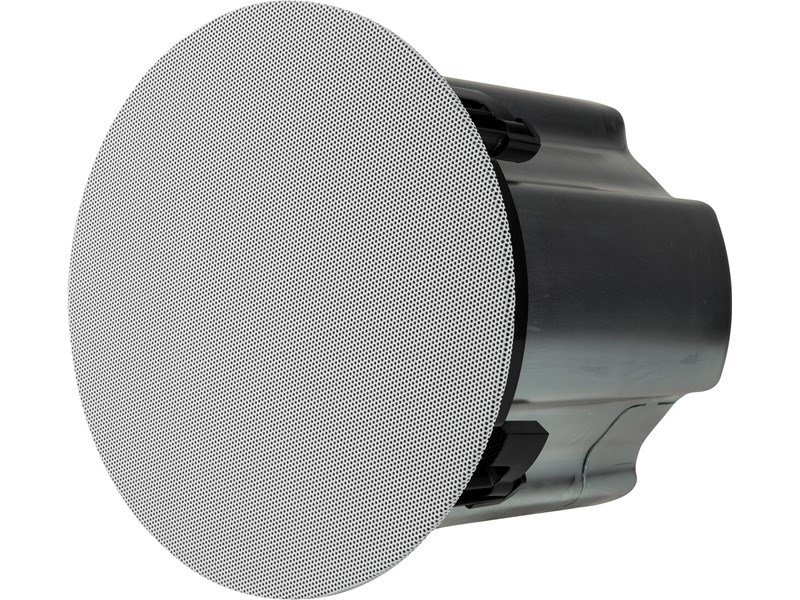

The Sonance Professional Series PS-C41RT InCeiling Speaker features a one-piece bezel-less grille
that is magnetically secured and allows for a onestep painting process to simplify installation and
minimize visual distraction.
An optional black grille is also available, as well
as Square Grille Adapters in either black or white,
allowing the installer to match the aesthetics of
square downlights, HVAC grilles or ceiling tiles.
A 4” (100mm) polypropylene woofer delivers
effortless low bass extension, while the .75” (19mm)
soft dome tweeter provides accurate high frequency
The PS-C41RT features a sealed Polymer Composite
UL94V-0 Sealed Enclosure, integrated cable and
conduit clamping, removable Euroblock connector
with loop-through, connecter cover and seismic
attachment. Certification includes UL2043, NFPA90,
NFPA70 S7232, UL1480 and EN54-24

Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
LF Driver
HF Driver
Input Connectors
Safety Agency
Ceiling Thickness Range
Suspension Points
70Hz – 25kHz
95Hz – 20kHz
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise
120 degrees conical coverage
102dB @ 1 meter (3.3 feet) average, 108dB peak
8 Ohms nominal, 6 Ohms minimum
25W, 12.5W, 6.3W, and (3.2W @70V)
6.3” x 6.5” Deep (160mm x 165mm)
5.875” Diameter (149mm)
5 lbs (2.27kg) Each
21.55 lbs (9.77kg) Pair
4” (100mm) Polypropylene Cone, Butyl Rubber Surround
0.75” (19mm) Cloth Dome, Ferrofluid Cooled
Four pin, Euroblock with loop output connections
Two – side and top mounted 3/4”
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 and NFPA70
S7232 UL Listed Signaling speaker and EN54-24.
0.125” - 2” (3mm - 50mm)
One on top surfce

• (1) C-Ring
• (2) Tile Support Rails
• (1) Cutout Template
• (1) Euroblock Connector
• (1) White Grille
