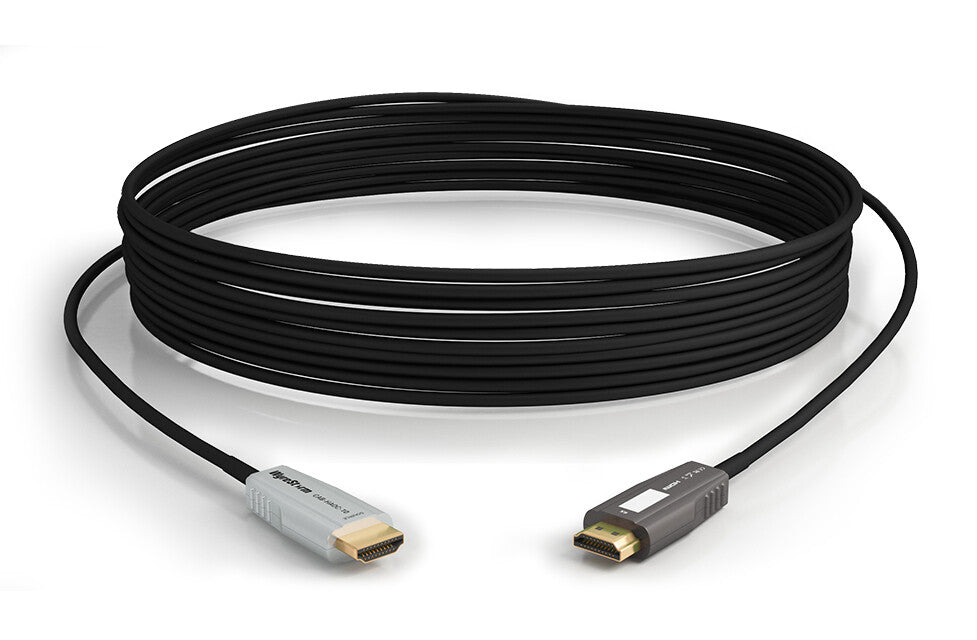

18Gbps, Active, Optical, 20m
Next generation active optical HDMI cables designed for next generation 4K UHD with HDR content, the WyreStorm CAB-HAOC-10 delivers uncompressed full bandwidth 18Gbps HDMI content up to 10m/33ft using the latest optical transmission technology.
UNCOMPRESSED 18GBPS OVER FIBER
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be sent, uncompressed with WyreStorm’s hybrid AOC cables using the latest optical transmission technology.
READY FOR ARC
Next generation active optical HDMI cables designed for next generation 4K UHD with HDR content, the WyreStorm CAB-HAOC-20 delivers uncompressed full bandwidth 18Gbps HDMI content up to 20m/65ft using the latest optical transmission technology.
COMPATIBLE WITH LATEST HDCP 2.2 CONTENT
Being essentially a long HDMI cable, source devices see this cable as such meaning that complicated electronics to handle encryption “handshaking” are not required meaning a cheaper extension solution.
HIGH RESISTANCE TO EM OR RF INTERFERENCE
The only electronic signals are kept within the 1” HDMI head, meaning that electronically “noisy” environments such as industrial or retail premises previously were unsuitable for copper transmission. Using optical transmission over 4 fibre cores, the CAB-HAOC’s provide a much stronger, more reliable signal.
| Features |
|---|
| Quantity per pack |
1 pc(s) |
| Certification |
CE | FCC |
| Connector contacts plating |
Gold |
| Maximum refresh rate |
60 Hz |
| Data transfer rate |
18 Gbit/s |
| HDCP |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Pull-off force |
15 kg |
| Pull-resistant connector(s) |
Yes |
| Dolby technologies |
DTS:X, Dolby Atmos |
| Supported video modes |
1080p, 2160p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Product colour |
Black, White |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 |
HDMI Type A (Standard) |
| Cable length |
20 m |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-10 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
