100 m, HDMI, HDCP, EDID, RJ-45, RS-232, 12 W, 250 x 90.2 x 21 mm

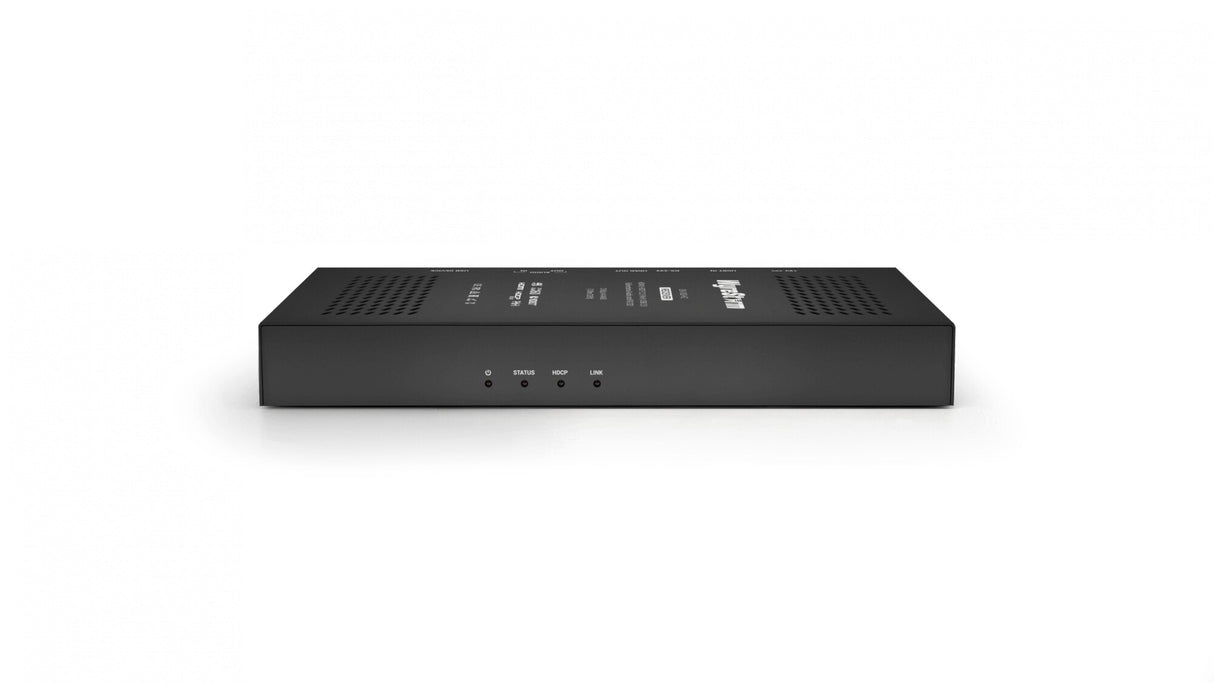

The EX-100-H2 uses the powerful HDBaseT 2.0 chipset to send along 4K, USB, PoH and HD audio up to 100m/328ft with a single Cat 6 cable. This extender hosts the perfect combination of features to give you the tools you need to set up your next conference or presentation. With separate audio lanes, you’re free to send audio independently to overlay your presentation.
With data transfers in mind, the EX-100-H2 is equipped with the fastest USB hardware HDBaseT is currently capable of; USB 2.0 and up to 190Mbps, which is everything you need to set up HD webcams, smart whiteboards, transfer data and so much more!
HDBASET SPEC 2.0
Featuring the powerful Class C HDBaseT chipset, UHD video & audio, USB, RS-232 and PoH are sent and distributed losslessly over distances of 100m/328ft.
USB 2.0 PASSTHROUGH
Equipped with the HDBaseT 2.0 spec, the EX-100-H2 not only provides KVM functionality for extension of keyboard/mouse or touchscreen, but also transfers the highest data rate that HDBaseT has to offer of 190Mbps, for webcams, white boards and USB data drives.
BIDIRECTIONAL AUDIO LANE
Two separate audio feeds can also be sent bidirectionally, thanks to a dedicated audio pass-through that allows 2ch analog to be sent and received at either end completely independent of the HDMI signal.
Power Over HDBaseT
A standard feature in most WyreStorm extenders, simply power the transmitter side of the extender and the receiver will power over the category cable. Reducing points of failure and making installation easier.
| Features |
|---|
| Certification |
FCC, RCM, EAC |
| Product colour |
Black |
| Supported video modes |
1080p, 2160p |
| Bandwidth |
10.2 Gbit/s |
| LED indicators |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Audio formats supported |
LPCM, PCM |
| Colour depth |
12 bit |
| HDCP |
Yes |
| Rack mounting |
Yes |
| HDCP version |
2.2 |
| CEC pass-through |
Yes |
| Extended display identification data (EDID) |
Yes |
| Audio system |
Multichannel |
| Maximum refresh rate |
60 Hz |
| Maximum transfer distance |
100 m |
| Cable types supported |
Cat6, Cat6a, Cat7, HDMI |
| Maximum resolution |
3840 x 2160 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
|---|
| 3.5 mm (1/8-inch) out |
Yes |
| 3.5 mm (1/8-inch) in |
Yes |
| RS-232 input ports |
1 |
| USB connector type |
USB Type-A, USB Type-B |
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
| HDBaseT port |
Yes |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Power |
|---|
| Power consumption (max) |
12 W |
| Input current |
2 A |
| Operating voltage |
12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
900 g |
| Height |
21 mm |
| Depth |
90.2 mm |
| Width |
250 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
