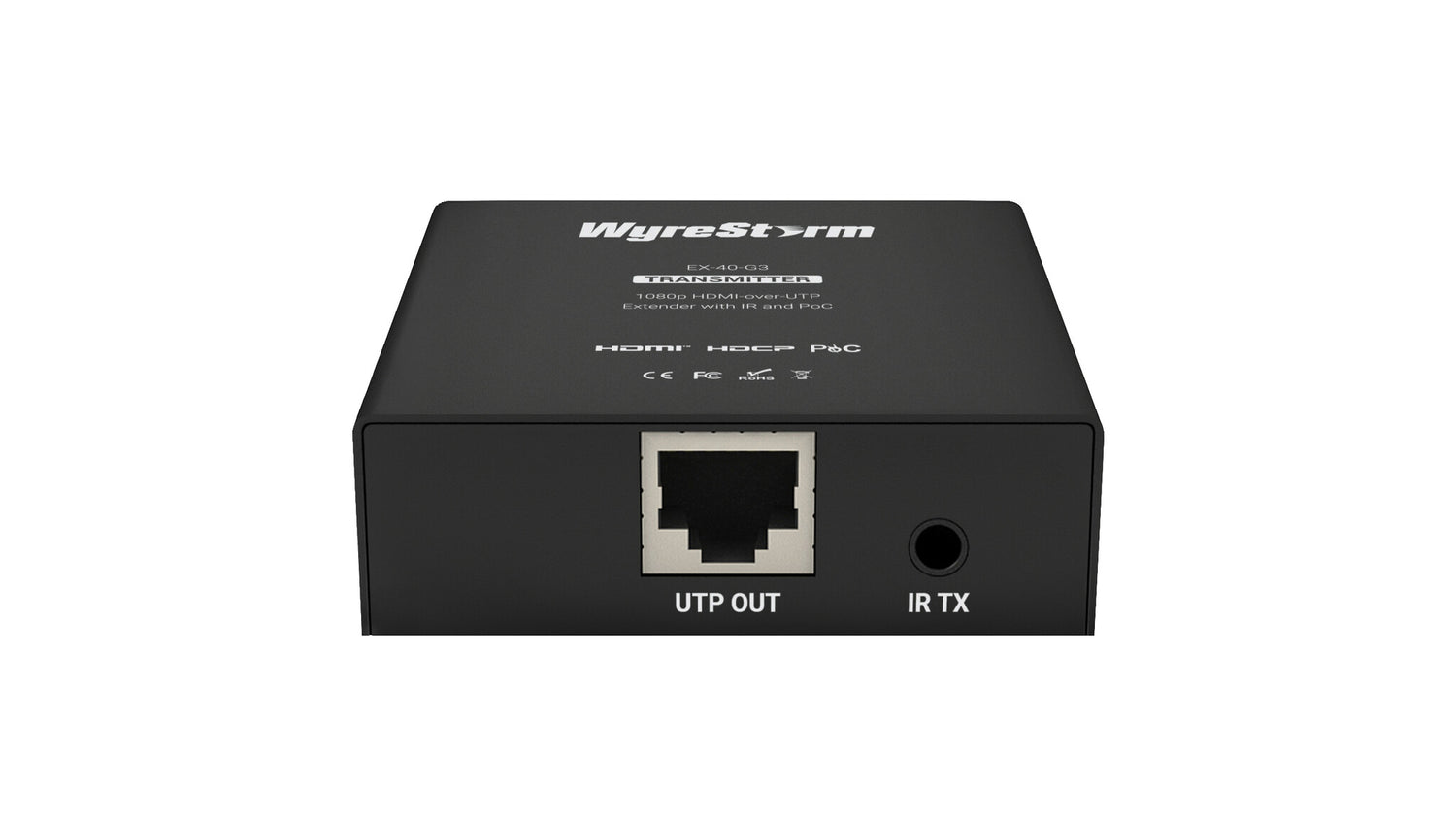

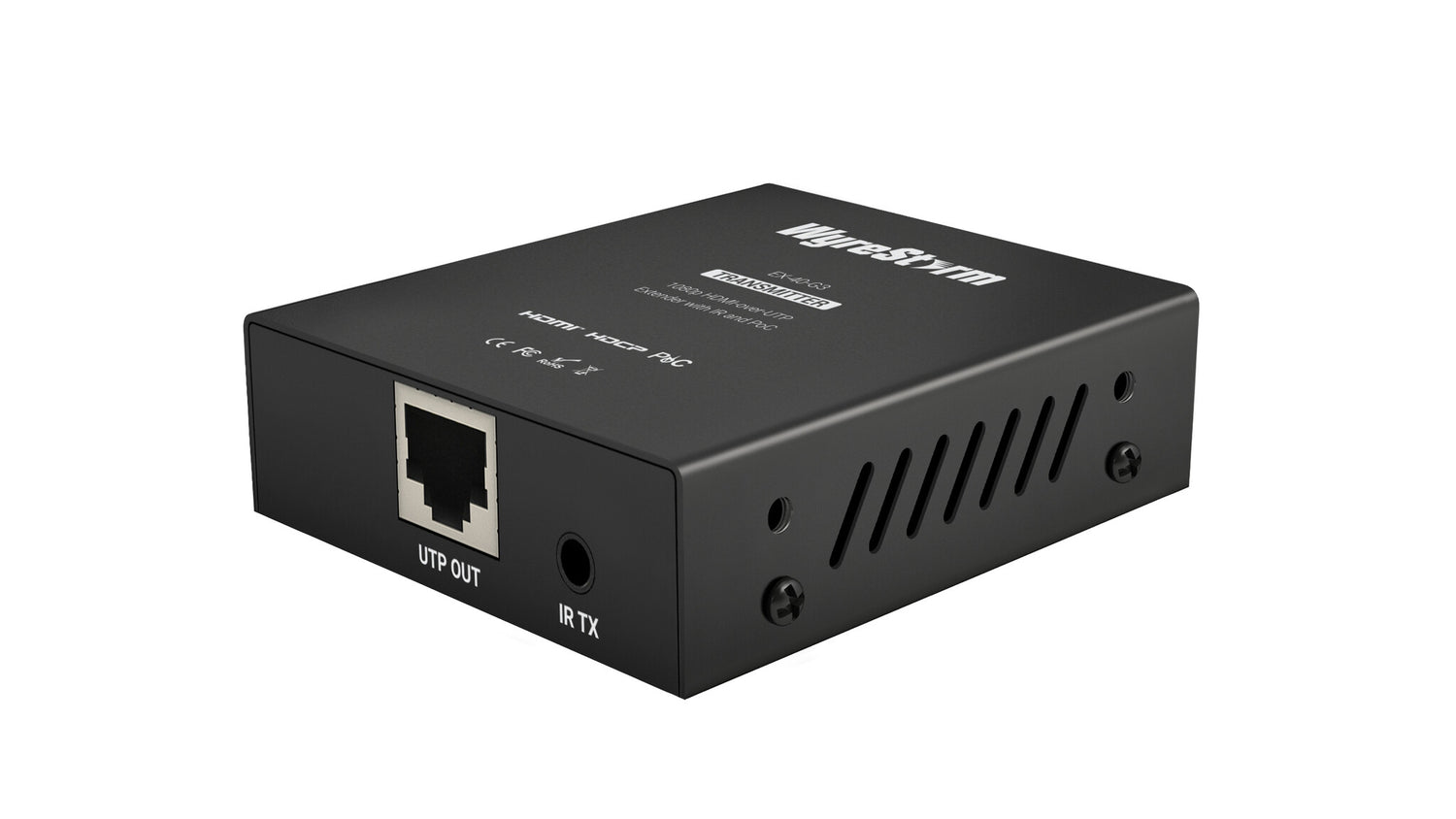

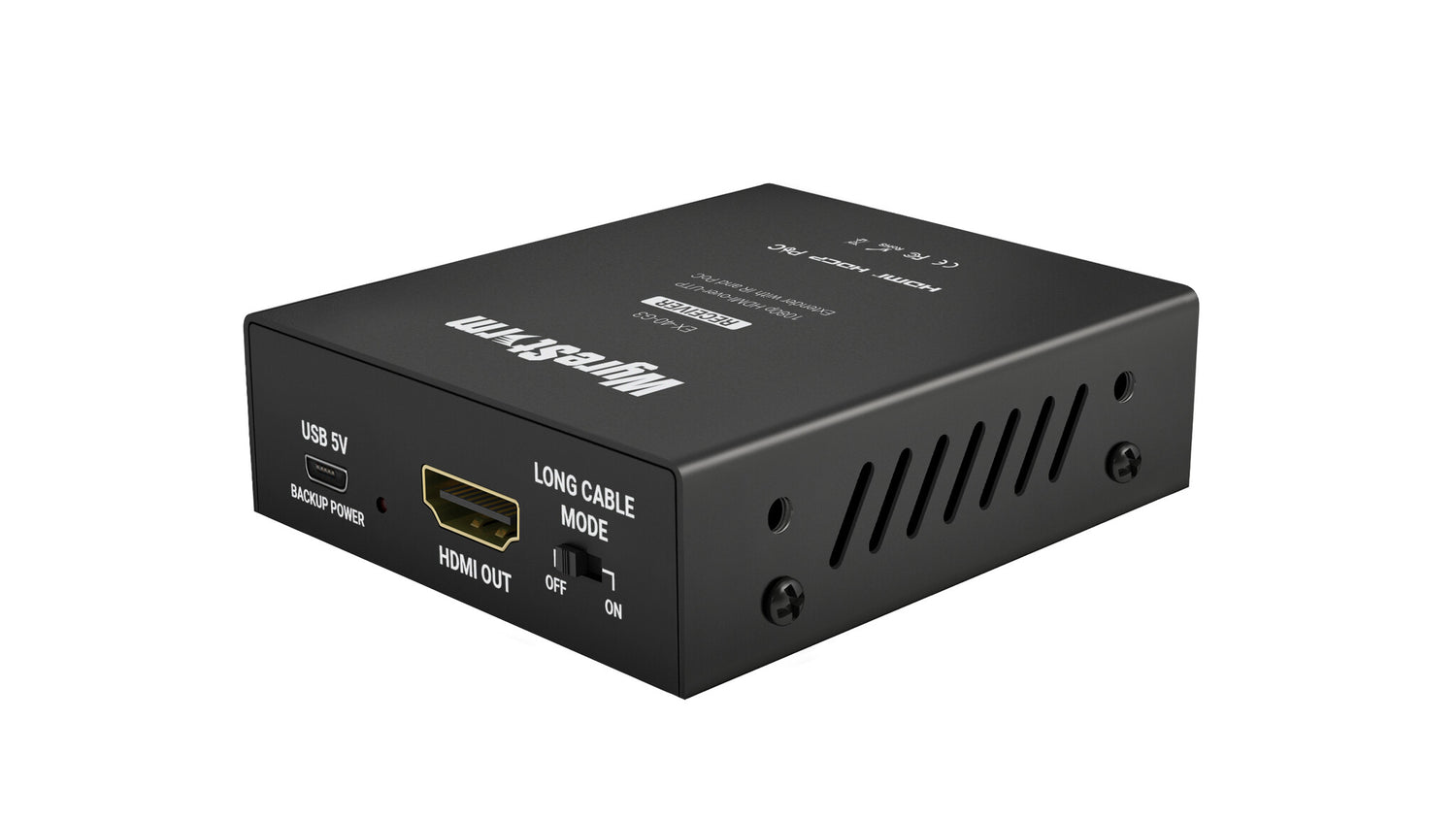

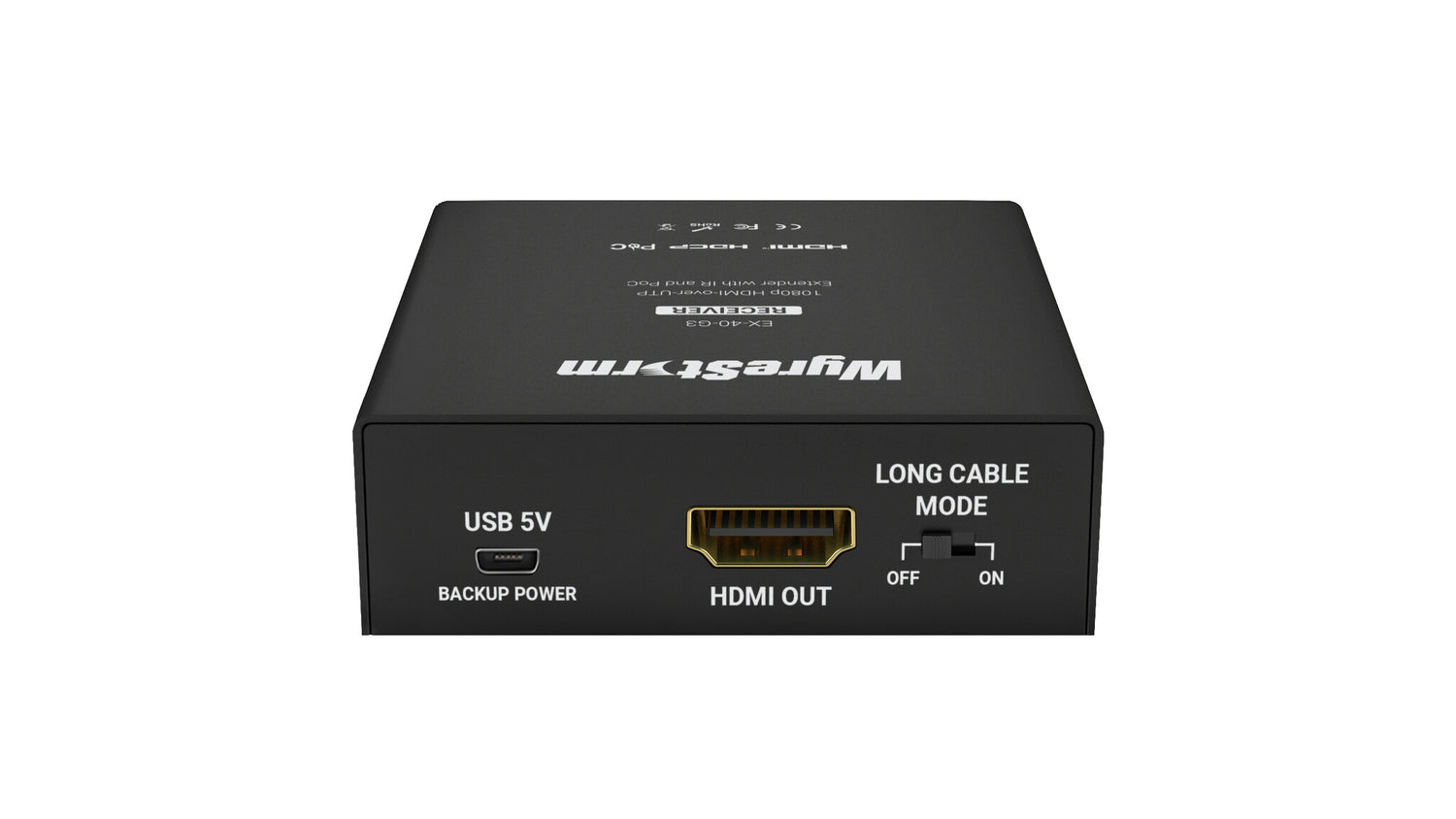

WyreStorm EX-40-G3 AV extender AV transmitter & receiver Black

Varenummer: EX-40-G3

Sendes fra fjernlager

Leveres normalt indenfor 10 dage

Specifikationer

1080p HDMI-over-UTP Extender, IR, PoC

With the low-profile point-to-point EX-40-G3 extender set, it’s never been easier to extend full 1080p HD video over a Cat5e cable; HD audio is also supported. Plus, IR source control and PoC (Power-over-Cable) all wrapped up in a compact chassis for unbeatable value, reliability and ease of installation.

DISCREET, SMALLER FOOTPRINT
WyreStorm’s newly designed 40 meter extender, the EX-40-G3, is now smaller than ever. With almost half the width of its predecessor, this makes the G3 lighter in weight and easier to keep discreet.

POC READY
Size isn’t the only upgrade found in the newly designed 40 meter extender. The G3 now includes Power over Cable abilities, saving the installer time and headache from having to supply local power discreetly to the receiver. But don’t fret if PoC isn’t available, as the receiver is capable of accepting local power.

FEATURE RICH; UNBEATABLE VALUE
With features such as PoC, automatic EDID, long cable mode capability and IR source control, the EX-40-G3 brings a tremendous amount of features to any simple installation at a cost effective price.

HDCP COMPLIANT
WyreStorm extender solutions play nice with the equipment they’re connected to, ensuring that the HDCP encryption is maintained throughout the process.

Features
Product colour Black
Bandwidth 6.75 Gbit/s
LED indicators Yes
HDCP Yes
Rack mounting Yes
HDCP version 1.4
Audio output channels 2.0 channels
Extended display identification data (EDID) Yes
Audio system stereo
Maximum refresh rate 60 Hz
Maximum transfer distance 40 m
Cable types supported Cat6, Cat6a, Cat7, HDMI
Maximum resolution 1920 x 1200 pixels
Type AV transmitter & receiver
Ports & interfaces
Remote (IR) input 1
Remote (IR) output 1
Number of HDMI outputs 1
HDMI version 1.3b
HDMI in 1
RJ-45 output ports 1
RJ-45 input ports 1
Ethernet LAN Yes
Connectivity technology Wired
Power
Current 1 A
External power adapter Yes
Power consumption (max) 2.5 W
Operating voltage 5 V
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Weight 200 g
Height 21 mm
Depth 70.2 mm
Width 70 mm
Technical details
Compliance certificates RoHS
  • Maksimal opløsning
    1920 x 1200 pixel
  • Type
    AV sender & modtager
  • Forbindelsesteknologi
    Ledningsført
WyreStorm
