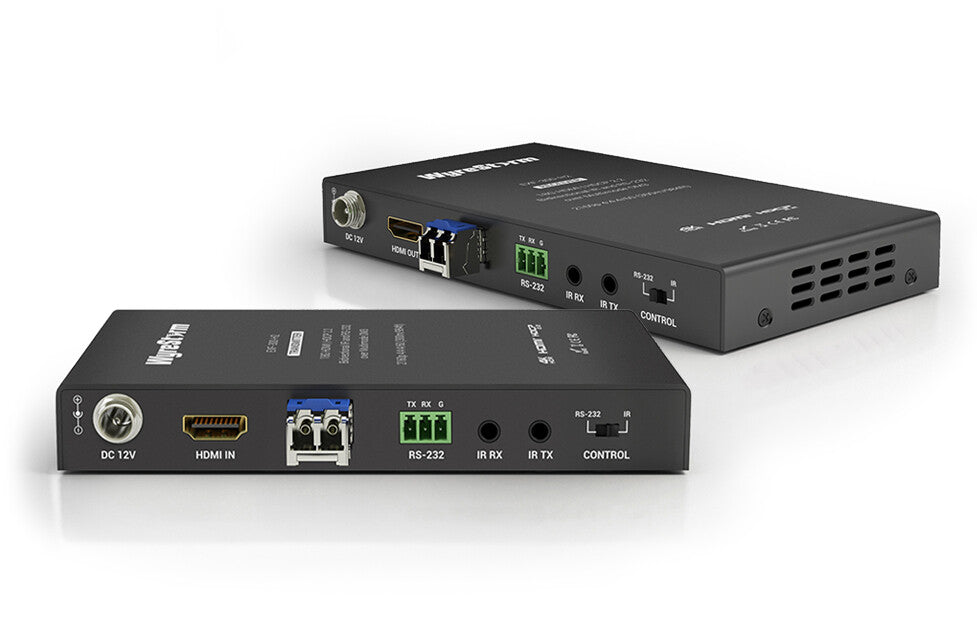

4K 4:4:4 60Hz 18Gbps HDMI HDCP 2.2 Bidirectional IR / RS-232 over OM3 Multi-Mode Fiber
WyreStorm’s first fiber-optical extender, ensuring perfect transmission of 18Gbps HDMI signals to 300m/984ft. The EXF-300-H2, is compatible with 2160p 4:4:4/60 or high frame rate HDR content with HDCP 2.2 encryption and will send it via a 10G OM3 multi-mode cable, without any effect from EM or RF interference along the way.
| Features |
|---|
| Certification |
FCC, CE |
| Product colour |
Black |
| Supported video modes |
1080p, 2160p |
| Bandwidth |
18 Gbit/s |
| LED indicators |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| HDCP |
Yes |
| Maximum transfer distance |
300 m |
| Cable types supported |
Fiber |
| Maximum resolution |
4096 x 2160 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| RS-232 input ports |
1 |
| RS-232 output ports |
1 |
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Power consumption (max) |
4 W |
| Output current |
0.5 A |
| Operating voltage (receiver) |
12 V |
| Operating voltage (transmitter) |
12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
400 g |
| Height |
20 mm |
| Depth |
74.4 mm |
| Width |
150 mm |
| Packaging content |
|---|
| IR blaster included |
Yes |
| IR receiver included |
Yes |
| Mounting brackets included |
Yes |
| Quick start guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
