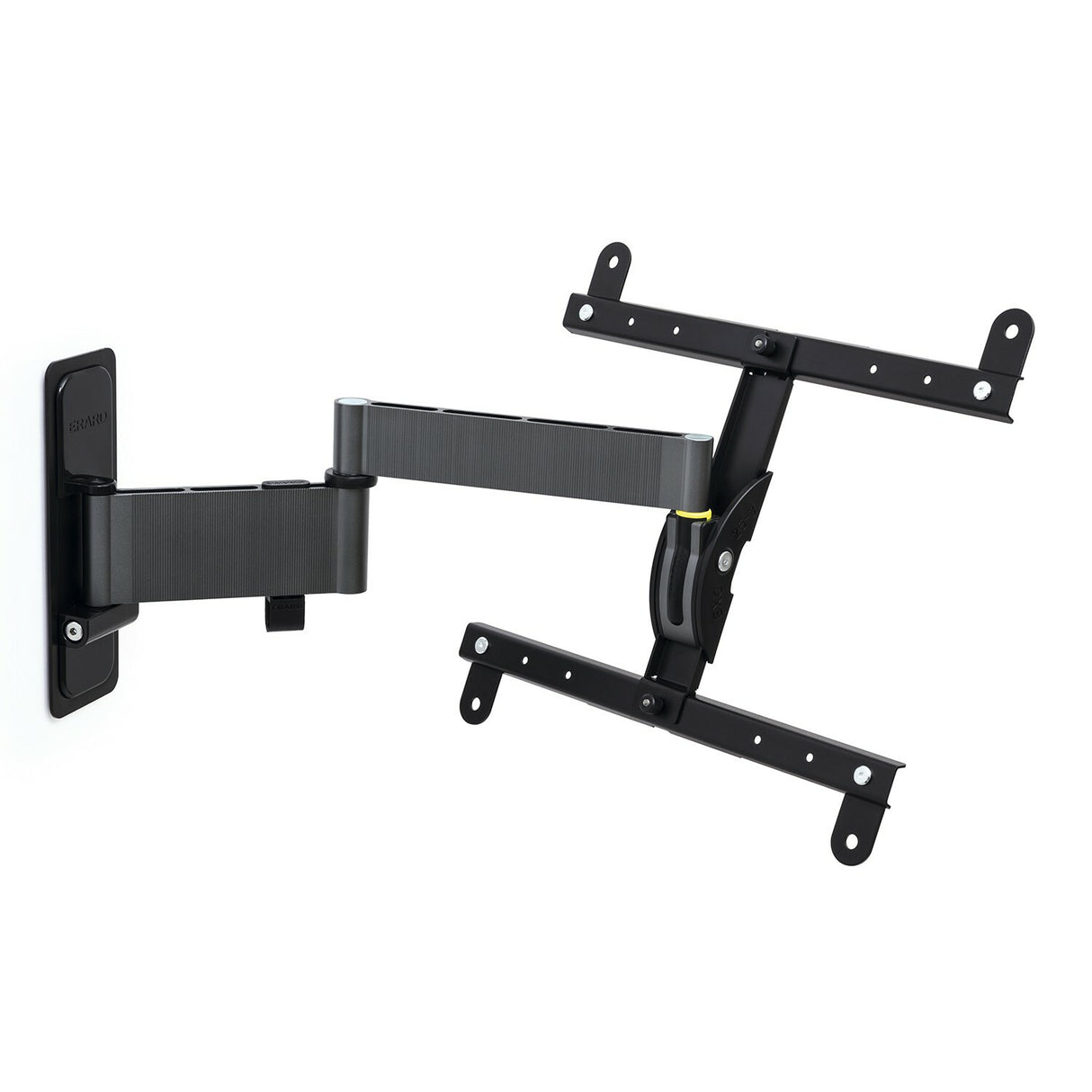

Erard EXO 400TW3
Varenummer:
048340
Sendes fra fjernlager
Leveres normalt indenfor 7 dage
Beskrivelse
Beskrivelse

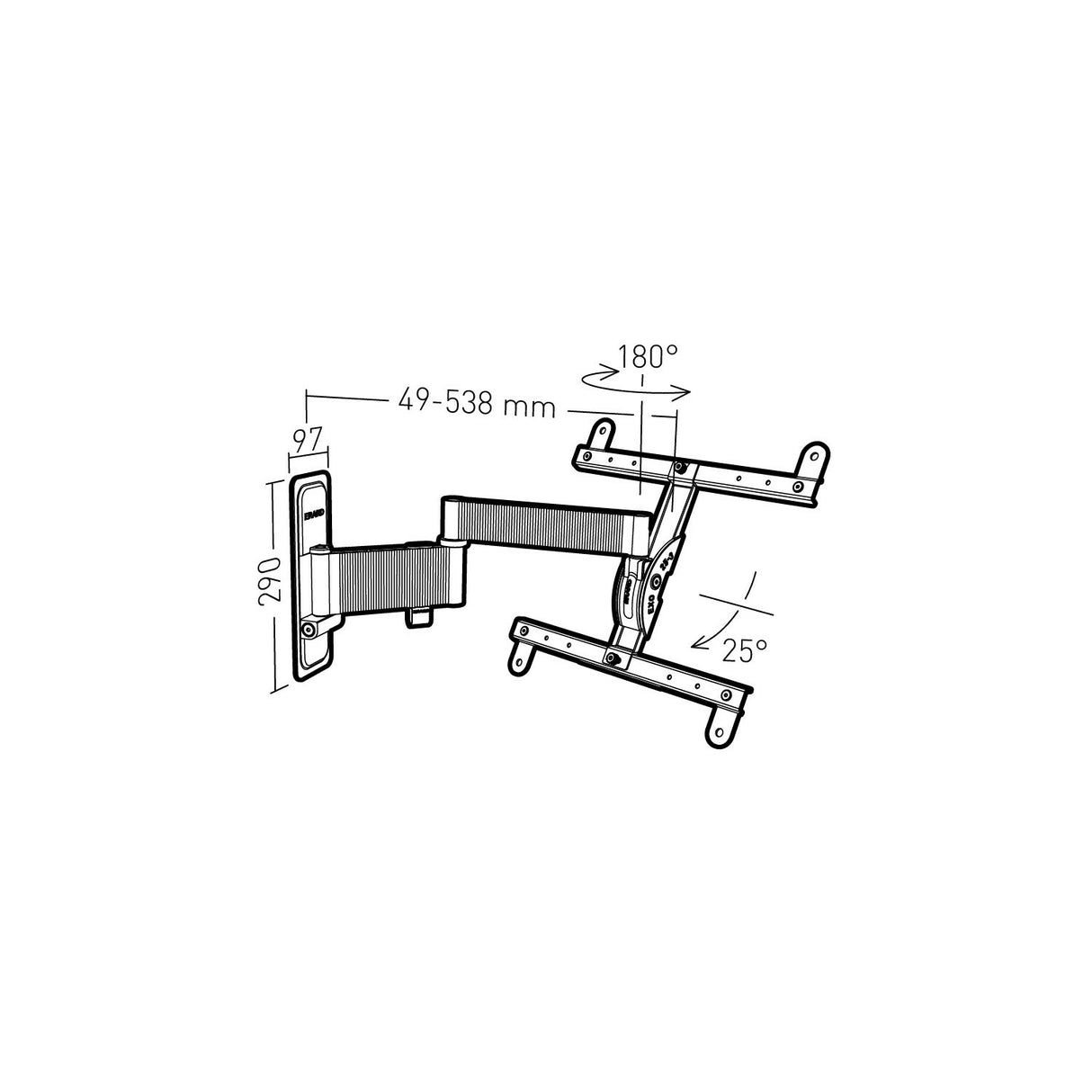

Tilting and swiveling, 30"-55", Max 35kg, VESA 200>400, Aluminium/Steel, Black
- Offset 538 mm - 2 arm
- Off-centre spacers to correct horizontality after drilling
- Patented micro adjustment system for perfect horizontality of the screen
- Texturized anodized aluminium arm, Titanium colour epoxy painting
- Screen and wall mount made of steel, black epoxy painting
- Compatible with flat and curved screens (screws and spacers included)
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200,300 x 300,400 x 400 |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Maximum screen size | 139.7 cm (55") |
| Minimum screen size | 76.2 cm (30") |
| Maximum weight capacity | 25 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 53.8 cm |
| Swivel angle range | 0 - 180° |
| Tilt angle range | -25 - 0° |
| Design | |
|---|---|
| Housing material | Aluminium, Steel |
| Product colour | Black |
| Packaging content | |
|---|---|
| User guide | Yes |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Screws included | Yes |
| Weight & dimensions | |
|---|---|
| Height | 290 mm |
| Width | 97 mm |
| Packaging data | |
|---|---|
| Package type | Box |
