Erard FIT-UP XL
Varenummer:
035310
Beskrivelse
Beskrivelse

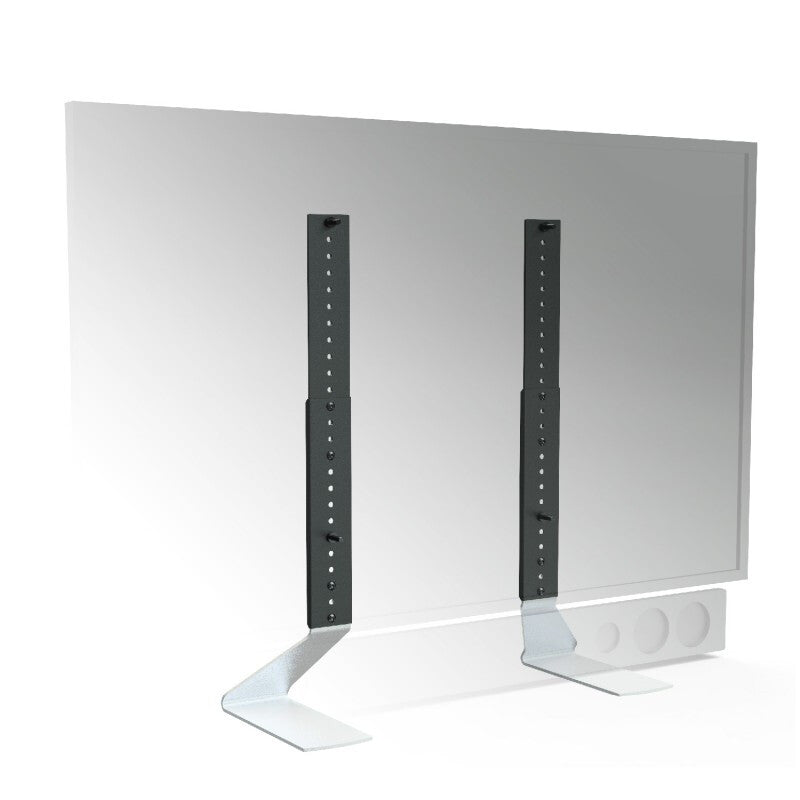

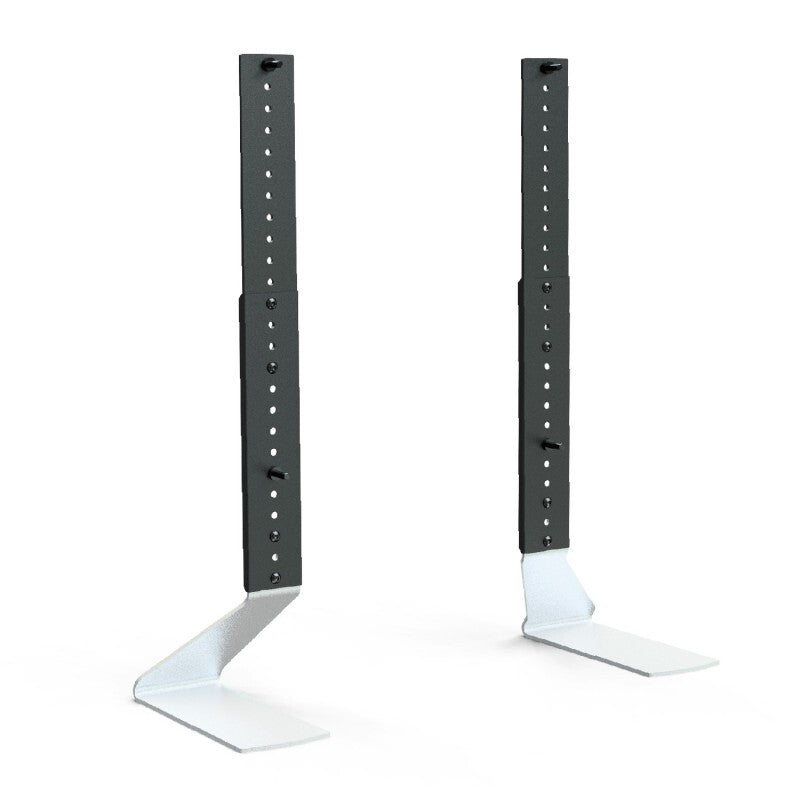

Universal table top mount for screens up to 30kg - max. thickness 70mm
FIT-UP XL is a universal table mount for screen which can replace any original base.

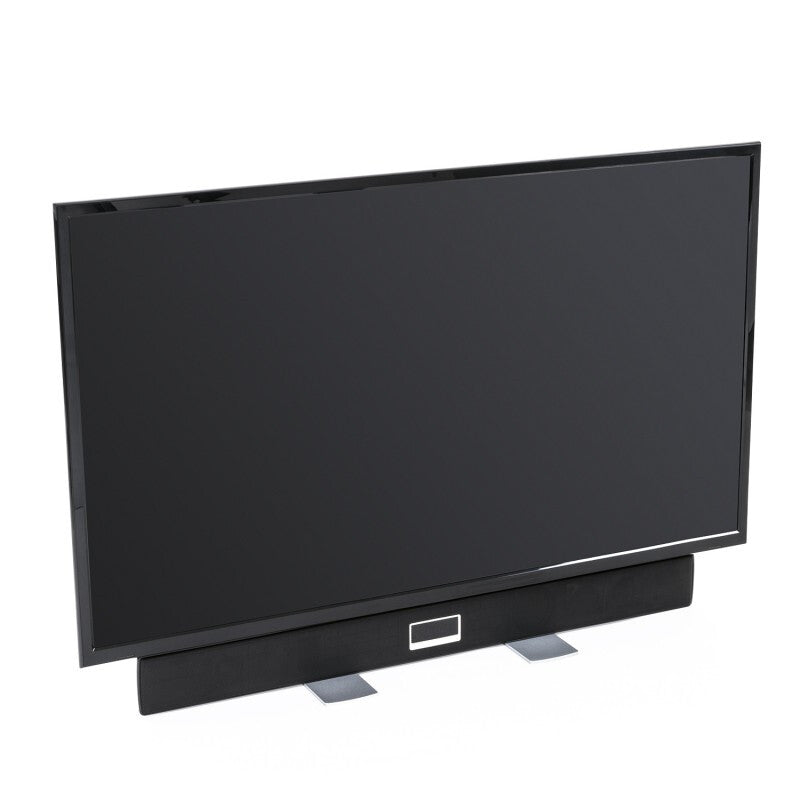

Dimensions of the mount and the colours make of the FITUP XL a discrete solution. You can place a sound bar under the screen.
Assembly is easy and quick, a single person can do it.
You can adapt screens from 40 up to 65’’ (101.6 to 165 cm). Max. load: 30kg.
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Maximum VESA mount | 500 x 400 mm |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Desk |
| Maximum screen size | 165.1 cm (65") |
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 30 kg |
| Ergonomics | |
|---|---|
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | Black, Silver |
| Weight & dimensions | |
|---|---|
| Depth | 271 mm |
| Width | 114 mm |
| Other features | |
|---|---|
| Mounting | Bolt-through |
