43” 4K UHD IPS Digital Signage Display - 24/7 Operation
Varenummer:
43DM66D
Sendes fra fjernlager
Beskrivelse
Beskrivelse
43", DLED 3840 x 2160, 500nits, 60 Hz, WI-FI 2.4/5.0GHz, Bluetooth 5.1, IP5X, 970.4 x 557.5 x 62.8mm, 8.5 kg
Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by connecting a series of displays to a single video output.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 109.2 cm (43") |
| LED backlight | Yes |
| Panel type | ADS |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Display diagonal (metric) | 108 cm |
| Number of displays | 1 |
| Panel life | 50000 h |
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| RGB colour space | NTSC |

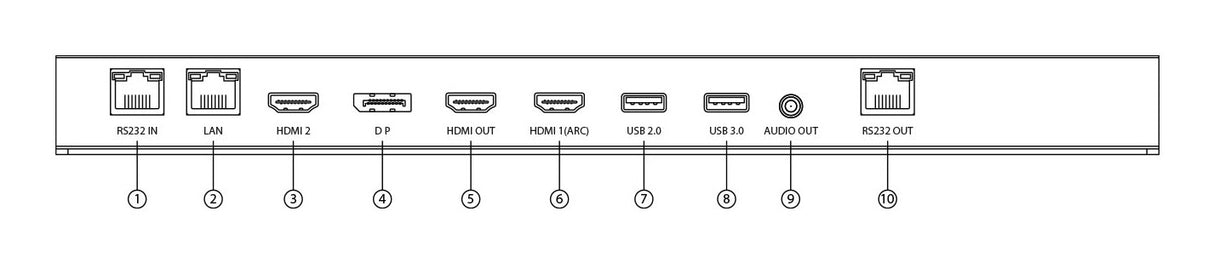

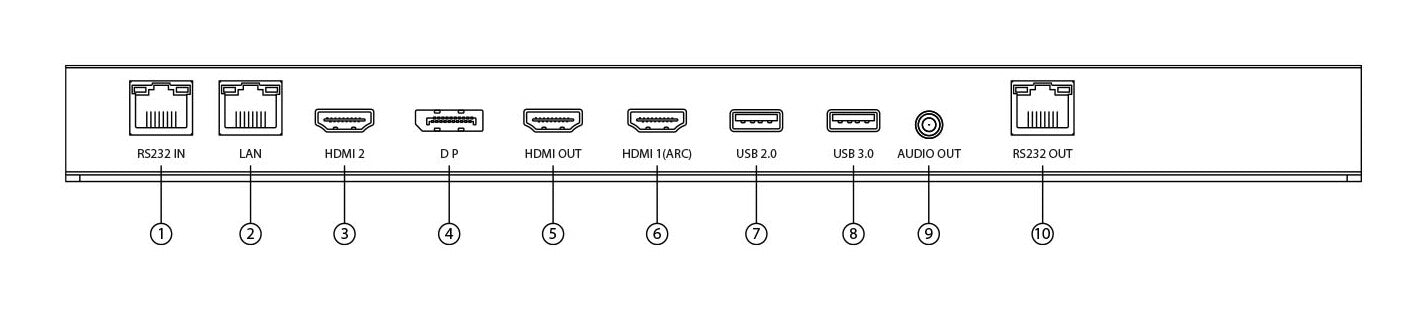

| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Number of speaker outputs | 1 |
| RS-232 interface | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product design | Digital A-board |
| Product colour | Black |
| Placement supported | Indoor/outdoor |
| Orientation | Horizontal/Vertical |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Commercial |
| Wi-Fi Direct | Yes |
| Browsing | Yes |
| Operating hours (hours/days) | 24/7 |
| Automatic brightness control | Yes |
| International Protection (IP) code | IPX5 |
| Power | |
|---|---|
| Power consumption (typical) | 80 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 120 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 105 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A55 |
| Processor model | A55 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Weight & dimensions | |
|---|---|
| Display width | 970.4 mm |
| Display depth | 62.8 mm |
| Display height | 557.5 mm |
| Display weight | 8.5 kg |
| Packaging data | |
|---|---|
| Package width | 1092 mm |
| Package depth | 145 mm |
| Package height | 663 mm |
| Package weight | 12.5 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Features | |
|---|---|
| Suitable for indoor use | Yes |
| Suitable for outdoor use | Yes |
| Wall mountable | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), cTUVus |
| Other features | |
|---|---|
| Power supply type | Internal |
| Manual | Yes |
| Bluetooth | Yes |
| Quick start guide | Yes |
