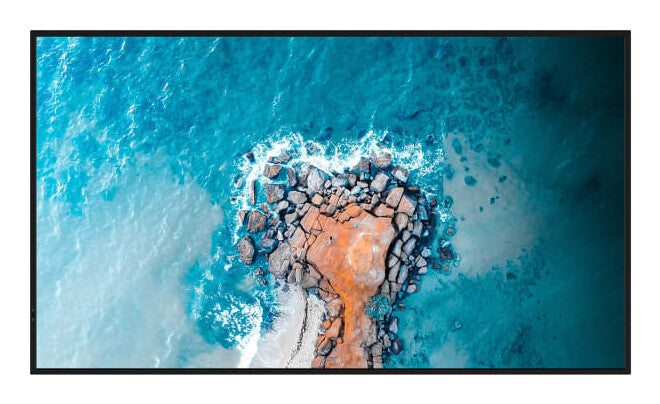

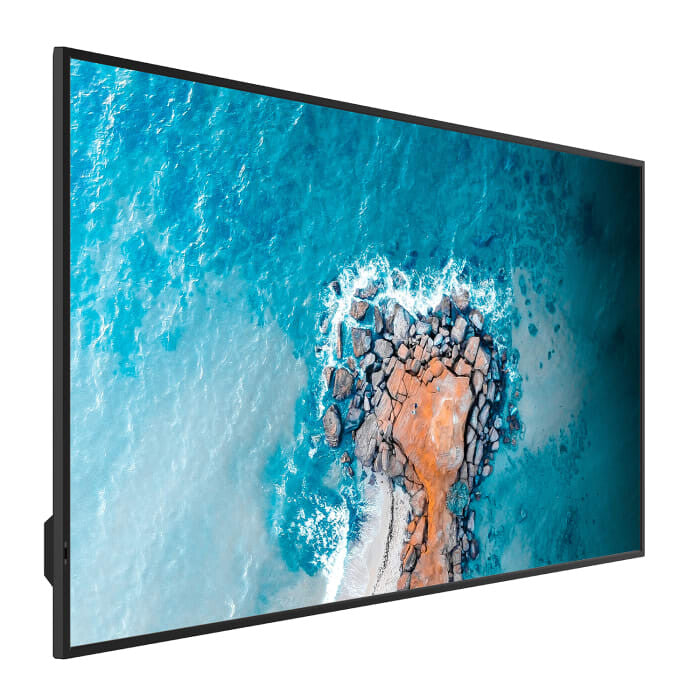

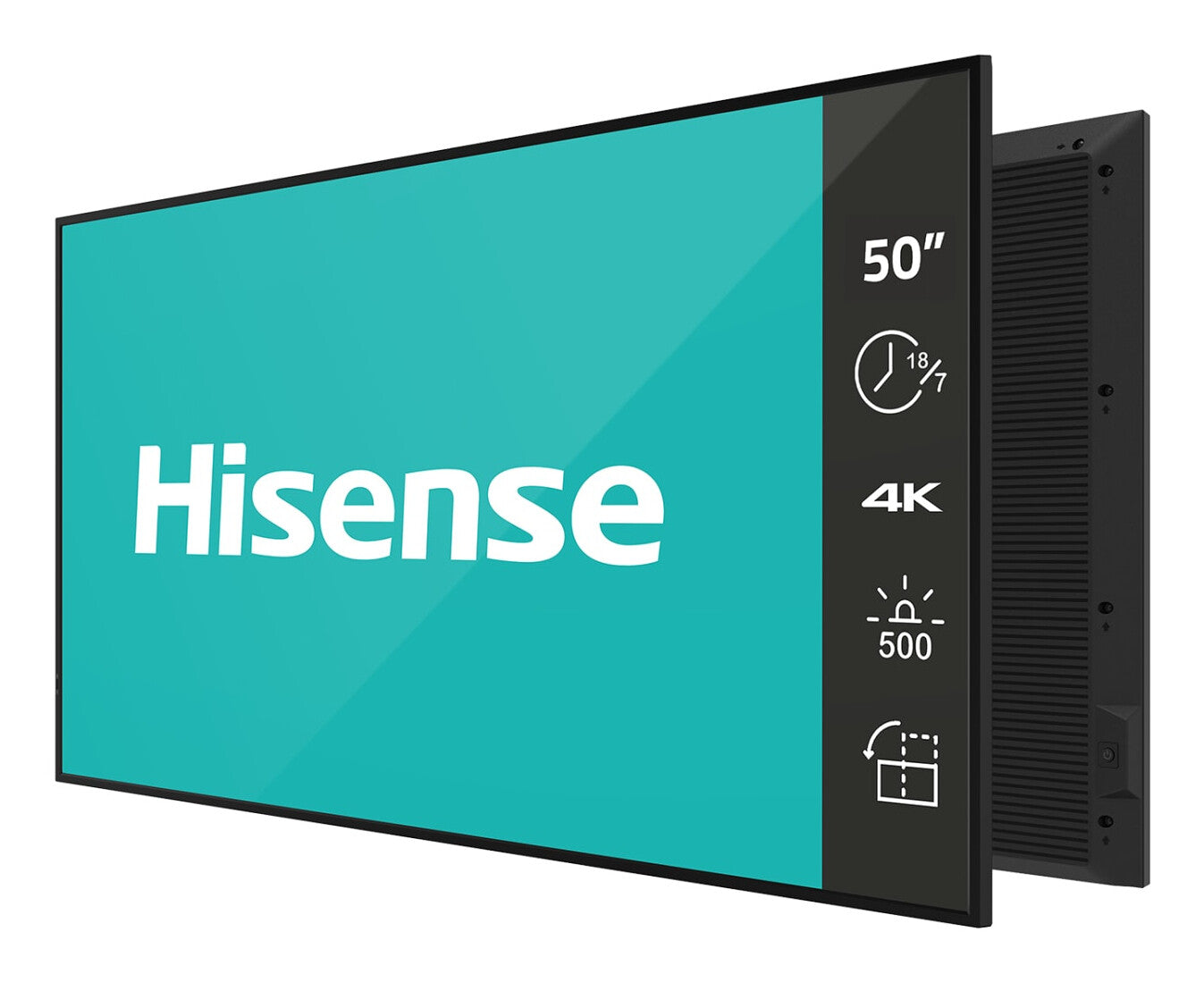

50” 4K UHD IPS Digital Signage Display - 24/7 Operation
Varenummer:
50DM66E
Beskrivelse
Beskrivelse
50” 4K UHD IPS Digital Signage Display - 24/7 Operation
Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by connecting a series of displays to a single video output.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 127 cm (50") |
| Display technology | LED |
| LED backlight | Yes |
| Panel type | VA |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Rated lifetime | 50000 h |
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2a |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.11 cm |
| Bezel width (side) | 1.04 cm |
| Bezel width (top) | 1.04 cm |
| Performance | |
|---|---|
| Purpose | Commercial |
| On Screen Display (OSD) languages | Simplified Chinese, English, French, German, Spanish, Polish, Russian, Italian, Finnish, Norwegian, Swedish, Hebrew, Arabic, Thai, Indonesian |
| Number of OSD languages | 16 |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
| Power | |
|---|---|
| Power consumption (typical) | 100 W |
| Input voltage | 100-240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 150 W |
| Computer system | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | A55 |
| Processor cores | 4 |
| Internal memory | 3 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Weight & dimensions | |
|---|---|
| Display width | 1124.1 mm |
| Display depth | 32.5 mm |
| Display height | 644.3 mm |
| Display weight | 11 kg |
| Packaging data | |
|---|---|
| Package width | 1251 mm |
| Package depth | 154 mm |
| Package height | 777 mm |
| Package weight | 16.2 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | Power, RS-232 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
|---|---|
| Certification | CB / CE / ERP / South Africa Energy Efficiency / cTUVus / CEC / FCC |
| Other features | |
|---|---|
| Power supply type | Internal |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
Download
Download
PDF download:
50” 4K UHD IPS Digital Signage Display - 24/7 Operation
