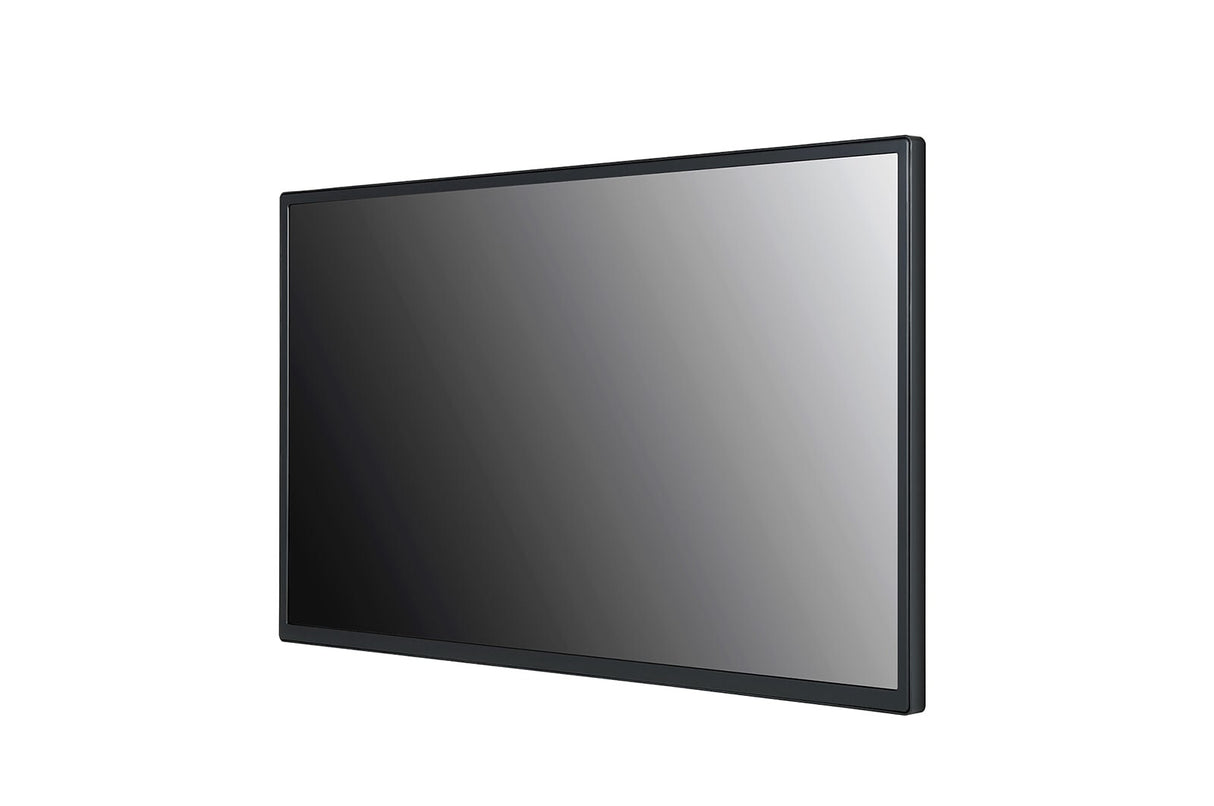

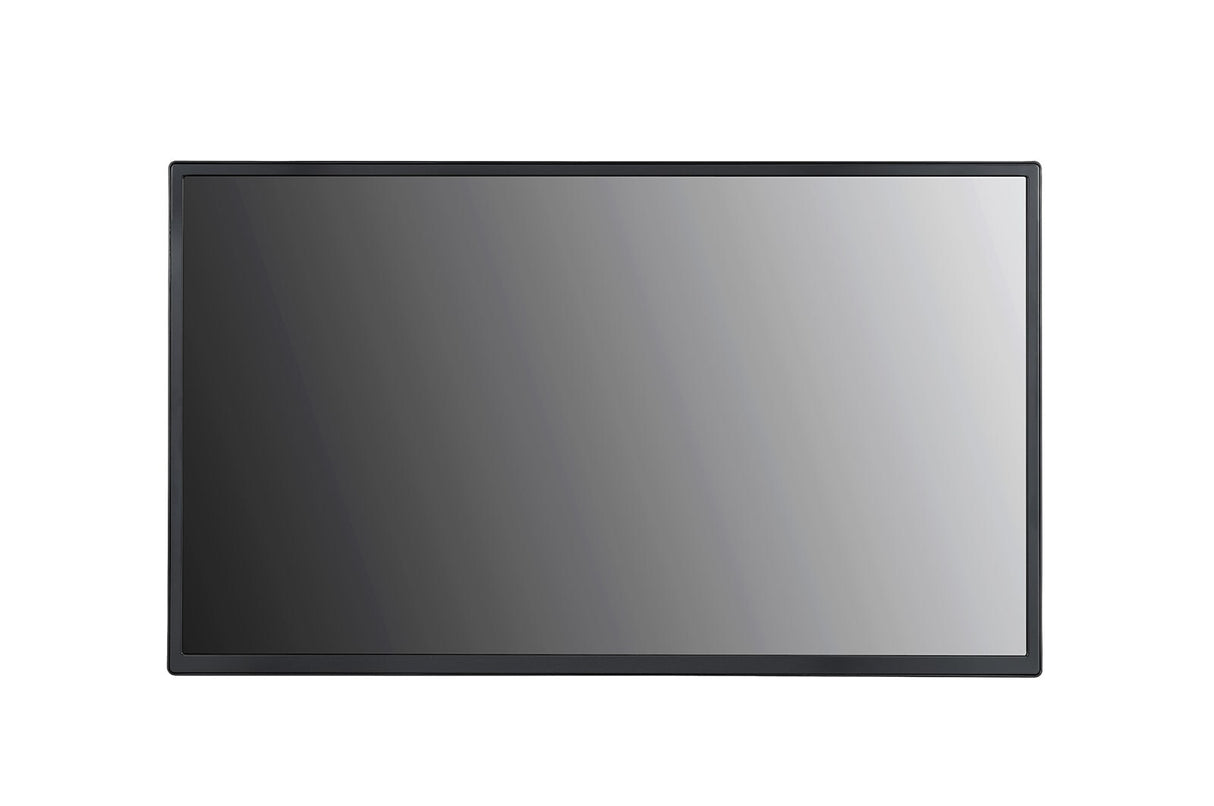

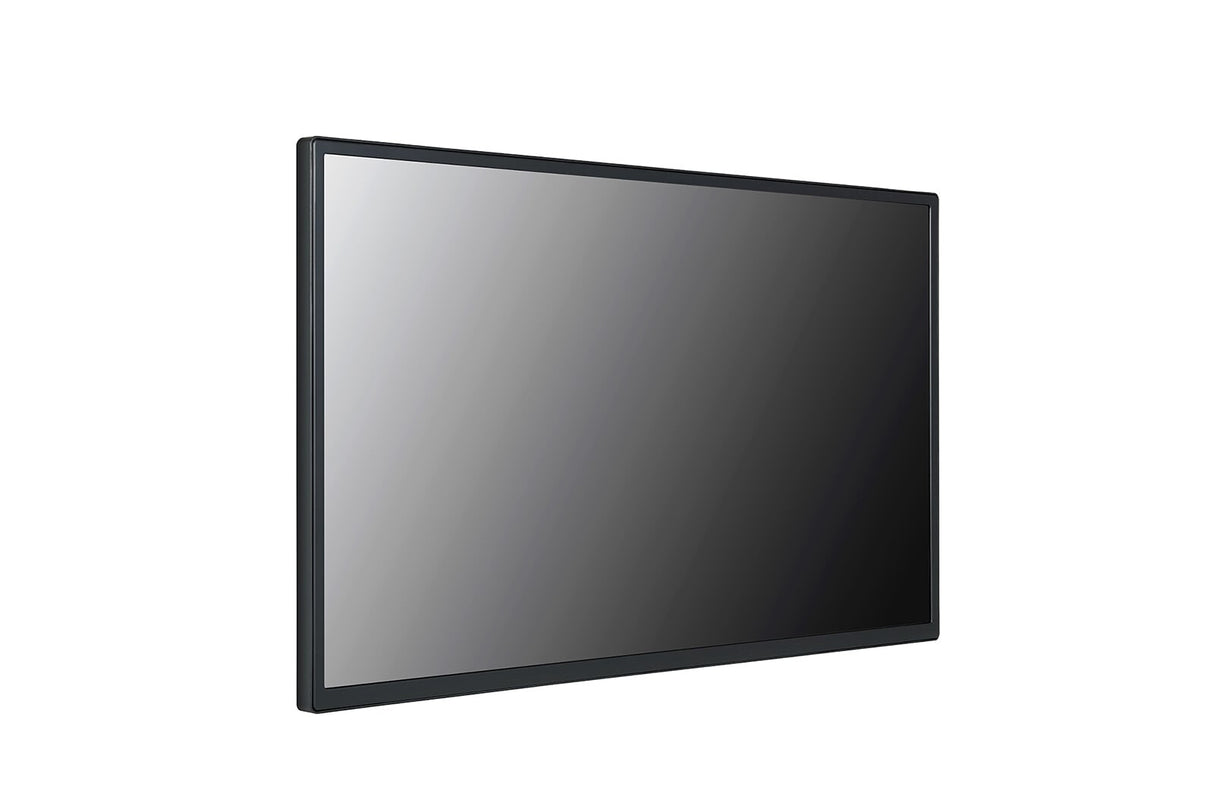

Full HD Standard Signage, 32", 1920 x 1080 px, IPS, 400 cd/m², 10 ms, 178°/178°, HDMI, USB, RJ-45, black
Various Sensor Connection
LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Mobile & Web Monitoring
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.
Compatible with AV Control System
The SM5J series supports Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
LG's Simple Advertisement Helper, Promota
Using LG's Promota application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more while recommending easy-to-use templates relevant to your industry.
Real-Time Promotion
With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a Wi-Fi network.
Wireless Access Point
The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.
| Display |
|---|
| Haze rate |
1% |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
1000000:1 |
| Contrast ratio (typical) |
1100:1 |
| Response time |
10 ms |
| HD type |
Full HD |
| Display brightness |
400 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
IPS |
| Display diagonal |
81.3 cm (32") |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB port |
Yes |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel width (top) |
1.3 cm |
| Bezel width (side) |
1.3 cm |
| Bezel width (bottom) |
1.8 cm |
| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Ambient light sensor |
Yes |
| Purpose |
Universal |
| Power |
|---|
| Heat dissipation |
187.67 BTU/h |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
55 W |
| Weight & dimensions |
|---|
| Weight (with stand) |
6.5 kg |
| Height (with stand) |
481 mm |
| Depth (with stand) |
154.2 mm |
| Width (with stand) |
729.4 mm |
| Display weight |
5.7 kg |
| Display height |
428.9 mm |
| Display depth |
55.5 mm |
| Display width |
729.4 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
