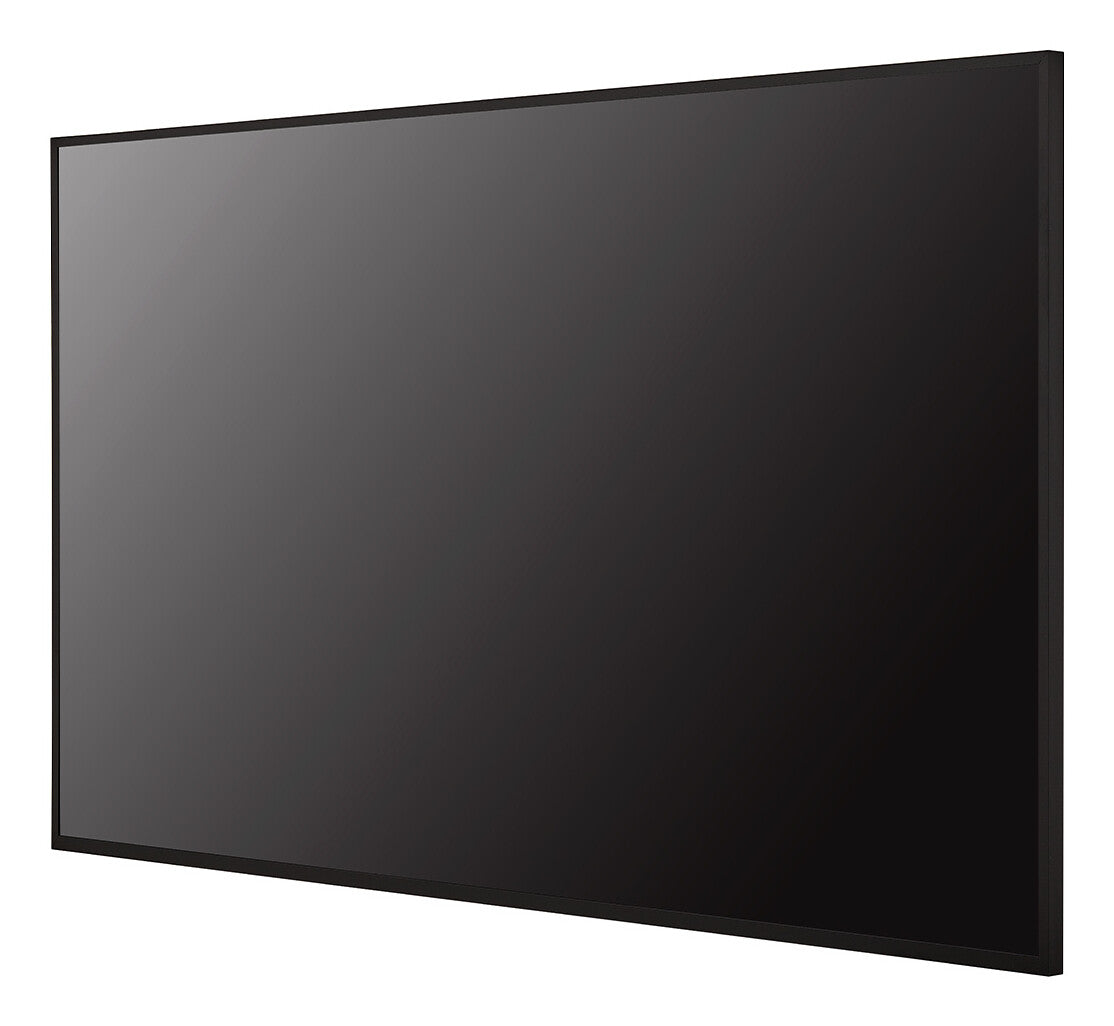

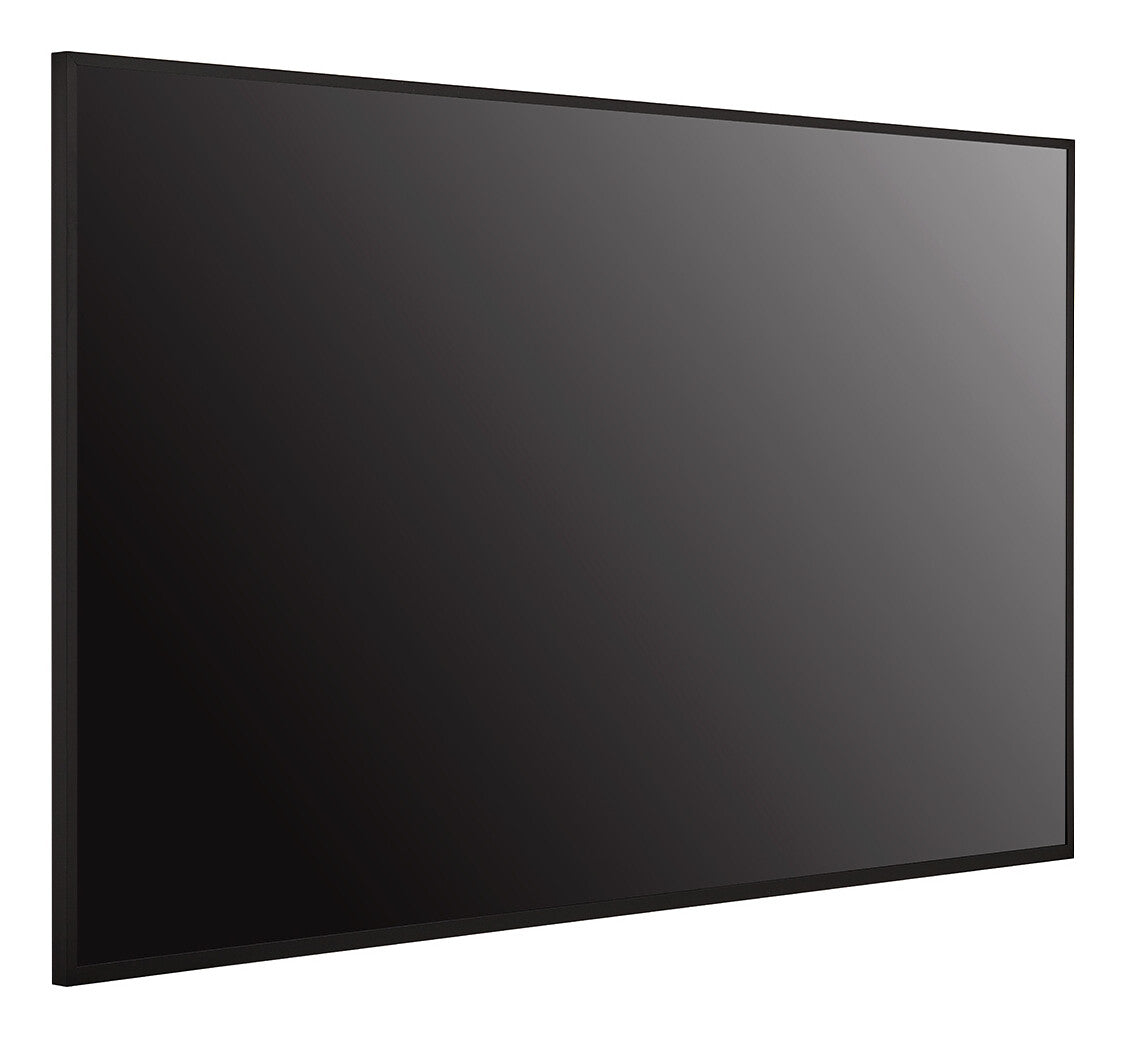

LG 65UH5N-M Signage Display Digital signage flat panel 165.1 cm (65") LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

Varenummer: 65UH5N-M

Sendes fra fjernlager

Beskrivelse

65", 4K UHD (3840 x 2160), IPS, 500 nits, 8 ms, 16 : 9, 178 x 178, 50,000 Hrs, Black

UHD Signage Display with
LG webOS Platform and Advanced Security

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Design for Space Utilization

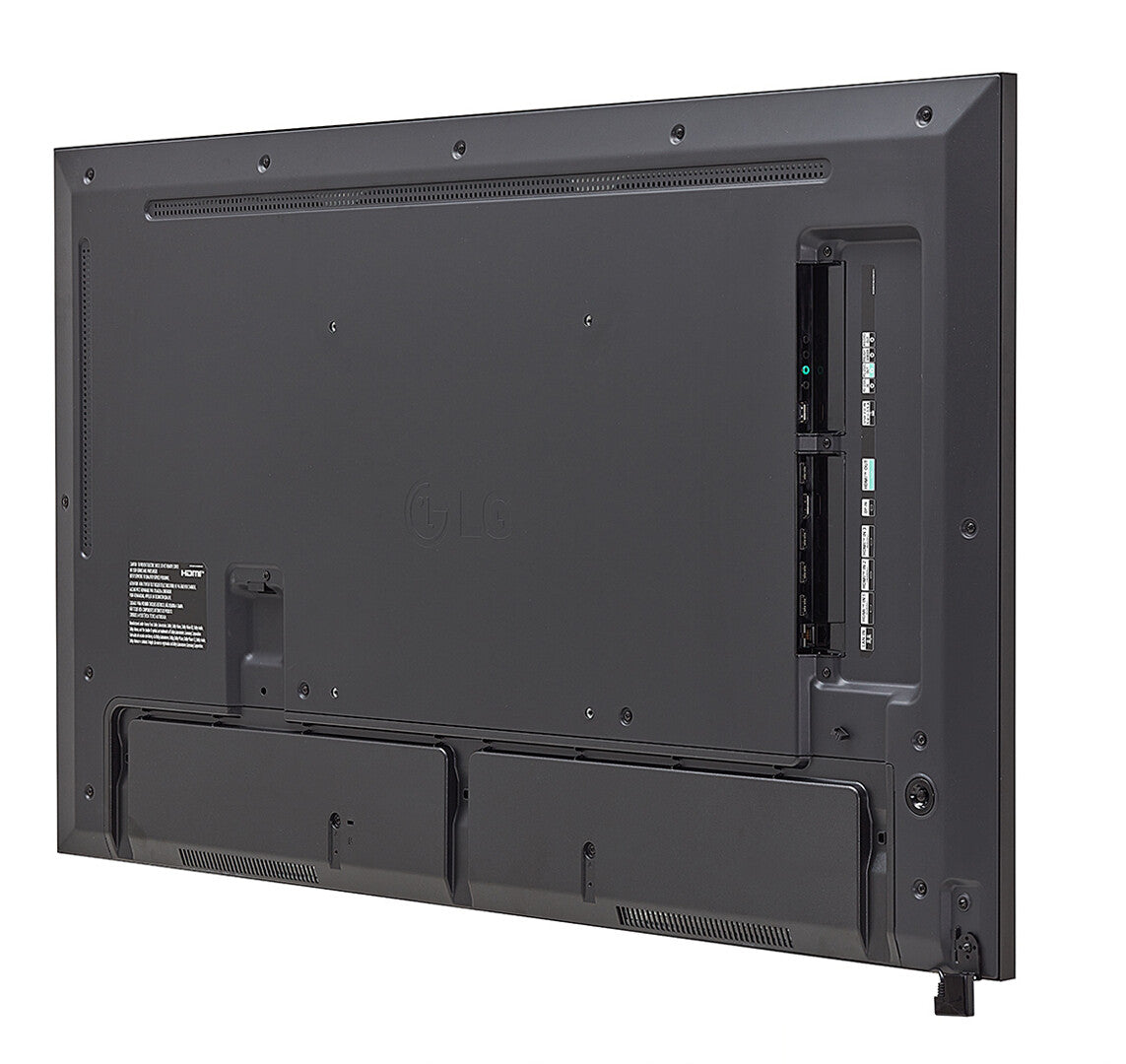

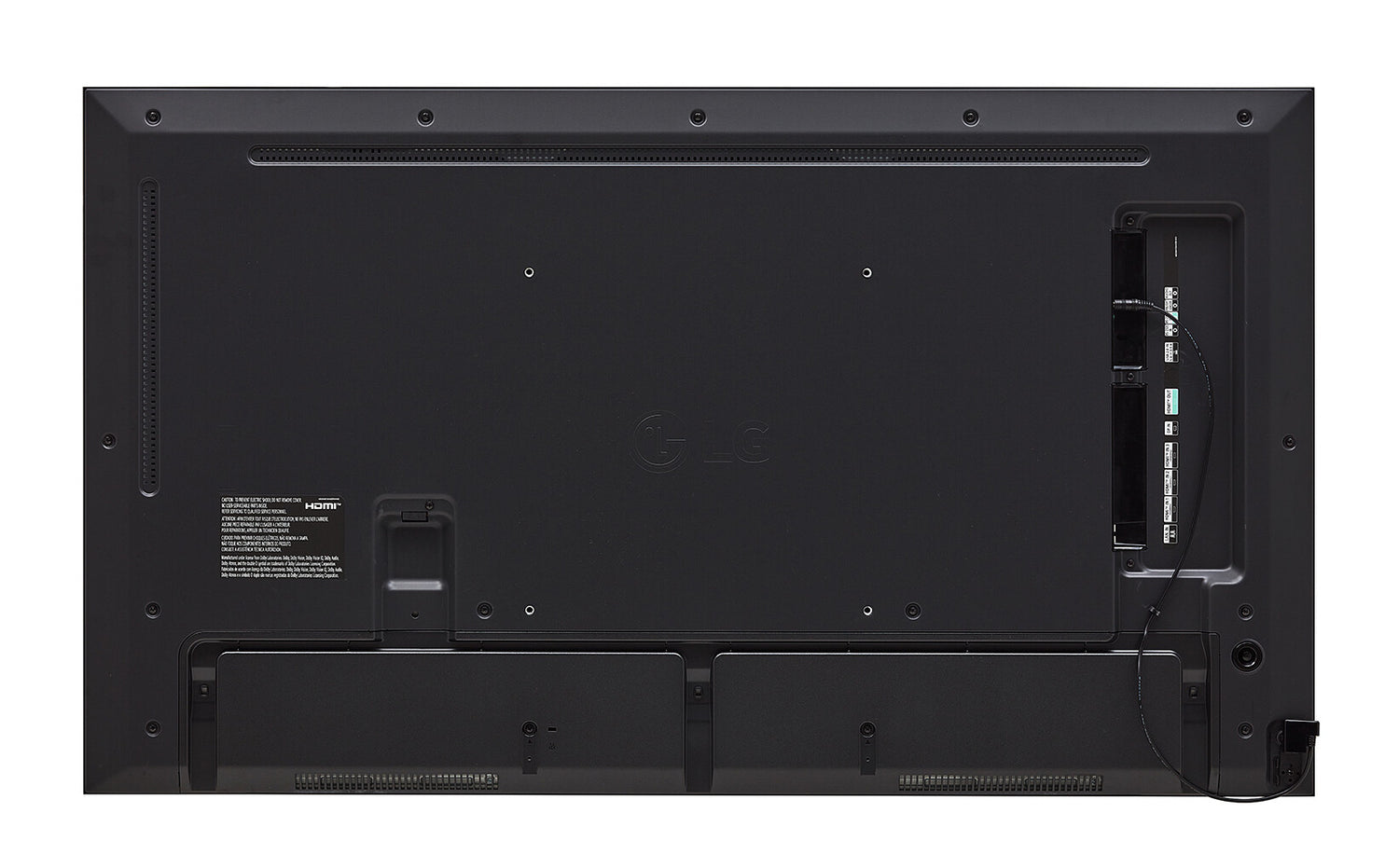

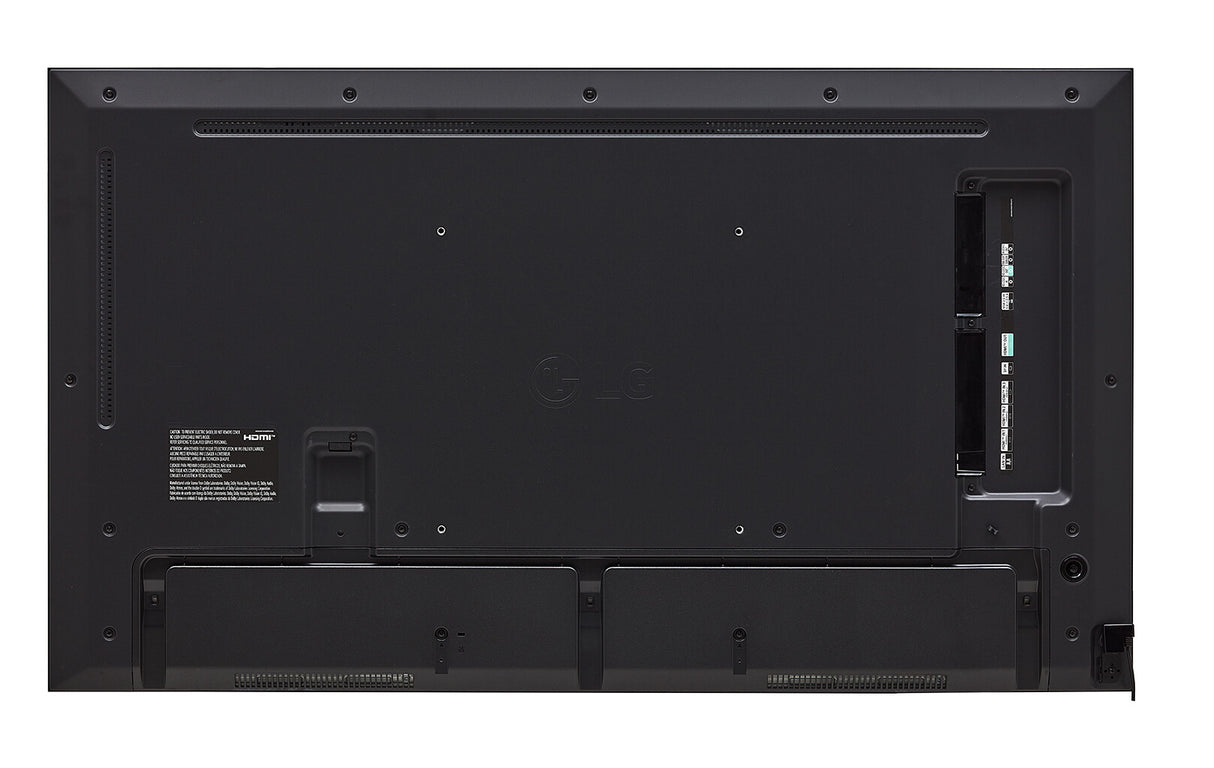

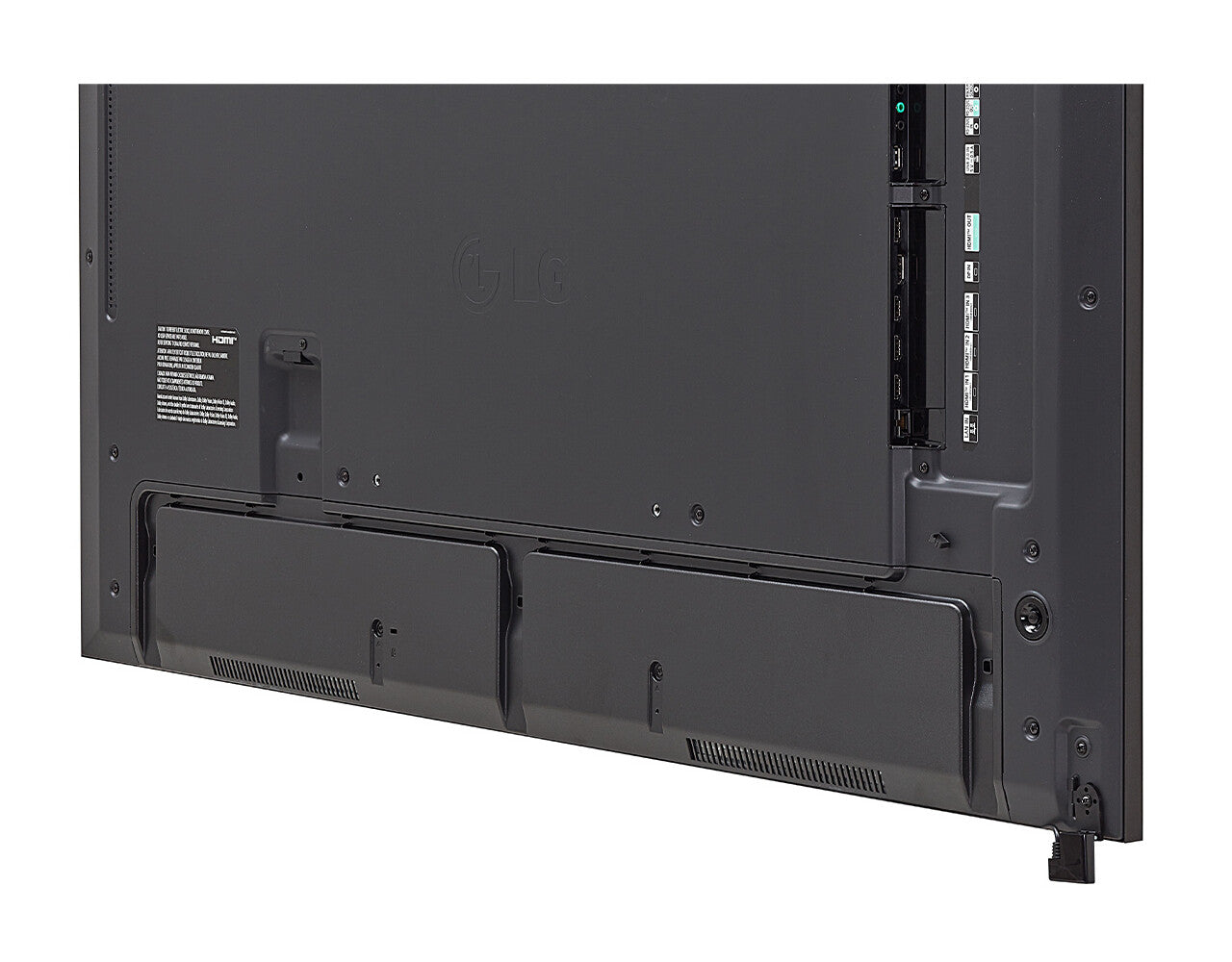

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specifikationer

Display
Colour gamut 95%
Colour depth 10 bit
Native refresh rate 60 Hz
Haze rate 28%
Panel life 50000 h
Display number of colours 1.07 billion colours
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Contrast ratio (dynamic) 1000000:1
Contrast ratio (typical) 1100:1
Response time 8 ms
Native aspect ratio 16:9
Touchscreen No
HD type 4K Ultra HD
Display brightness 500 cd/m²
Display resolution 3840 x 2160 pixels
LED backlighting type Edge-LED
Panel type IPS
LED backlight Yes
Display technology LED
Display diagonal 165.1 cm (65")
Ports & interfaces
Remote (IR) input 1
RS-232C Yes
Wi-Fi Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
USB connector type USB Type-A
USB version 2.0
USB ports quantity 2
USB port Yes
DisplayPorts quantity 1
DVI port No
HDMI input ports quantity 3
HDMI ports quantity 3
Audio
RMS rated power 20 W
Built-in speaker(s) Yes
Design
Bezel colour Black
Bezel width (top) 8.9 mm
Bezel width (side) 8.9 mm
Bezel width (bottom) 1.29 cm
Panel mounting interface 200 x 200 mm
VESA mounting Yes
Screen shape Flat
Orientation Horizontal/Vertical
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
HDCP Yes
International Protection (IP) code IP5X
HDCP version 1.4/2.2/2.3
Automatic brightness control Yes
Operating hours (hours/days) 24/7
Purpose Universal
Power
Energy efficiency scale A to G
Heat dissipation 444 BTU/h
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy consumption (SDR) per 1000 hours 130 kWh
Energy efficiency class (SDR) G
Power consumption (max) 205 W
Power consumption (standby) 0.5 W
Power consumption (typical) 130 W
Computer system
Operating system version 6.0
Operating system installed WebOS
Internal memory 16 GB
Computer system type System on Chip (SoC)
Computer system Yes
Weight & dimensions
Display weight 24.2 kg
Display height 830.3 mm
Display depth 29.7 mm
Display width 1450.3 mm
Packaging data
Package weight 30.4 kg
Package height 970 mm
Package depth 172 mm
Package width 1600 mm
Packaging content
Cables included Power
Batteries included Yes
Remote control included Yes
Operational conditions
Operating relative humidity (H-H) 10 - 80%
Operating temperature (T-T) 0 - 40 °C
Features
Heat dissipation (max) 699 BTU/h
Technical details
Real Time Clock (RTC) Yes
Other features
Plug and Play Yes
Audio output 1
