LG 75UH5N-M Signage Display Digital signage flat panel 190.5 cm (75") LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

Varenummer: 75UH5N-M

Sendes fra fjernlager

Beskrivelse

75", 4K UHD (3840 x 2160), ADS 500 nit, 8 ms, IP5X, Wi-Fi, webOS 6.0

Large UHD Signage Display with Slim Design
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

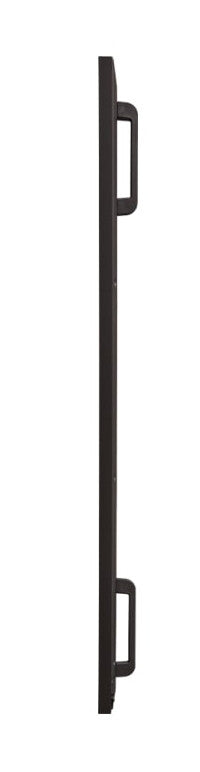

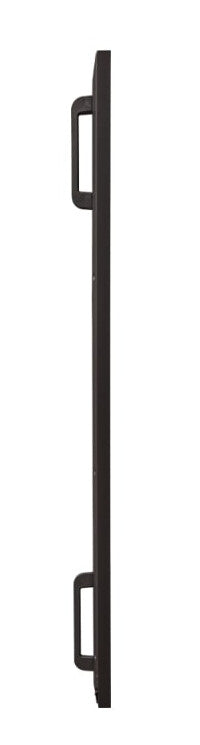

Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

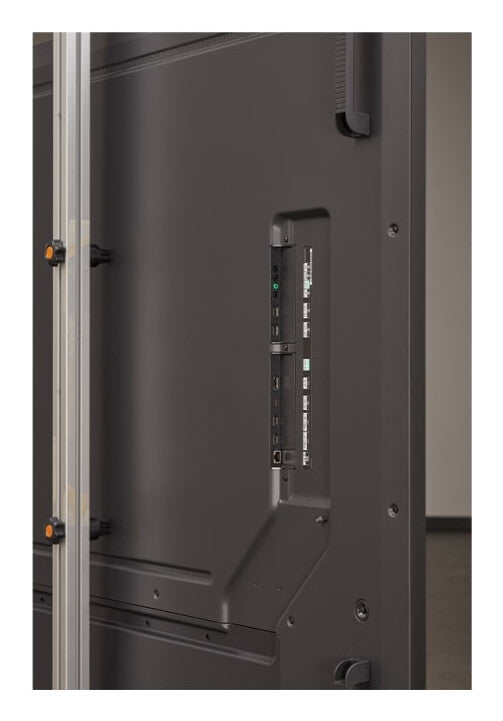

Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specifikationer

Display
Colour gamut 95%
Colour depth 8 bit
Native refresh rate 60 Hz
Haze rate 25%
Panel life 50000 h
Display number of colours 1.07 billion colours
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Contrast ratio (dynamic) 1000000:1
Contrast ratio (typical) 1200:1
Response time 8 ms
Native aspect ratio 16:9
Touchscreen No
HD type 4K Ultra HD
Display brightness 500 cd/m²
Display resolution 3840 x 2160 pixels
LED backlighting type Edge-LED
Panel type ADS
LED backlight Yes
Display technology LED
Display diagonal 190.5 cm (75")
Ports & interfaces
Remote (IR) input 1
RS-232C Yes
Wi-Fi Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
USB connector type USB Type-A
USB version 2.0
USB ports quantity 2
USB port Yes
DisplayPorts quantity 1
DVI port No
HDMI input ports quantity 3
HDMI ports quantity 3
Audio
RMS rated power 20 W
Built-in speaker(s) Yes
Design
Bezel width (bottom) 1.29 cm
Panel mounting interface 600 x 400 mm
VESA mounting Yes
Orientation Horizontal
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
HDCP Yes
International Protection (IP) code IP5X
HDCP version 1.4/2.2/2.3
Automatic brightness control Yes
Operating hours (hours/days) 24/7
On Screen Display (OSD) Yes
Purpose Universal
Power
Heat dissipation 546 BTU/h
AC input frequency 50-60 Hz
AC input voltage 100-240 V
Power consumption (max) 247 W
Power consumption (standby) 0.5 W
Power consumption (typical) 160 W
Computer system
Operating system version 6.0
Operating system installed WebOS
Internal memory 16 GB
Computer system type System on Chip (SoC)
Computer system Yes
Weight & dimensions
Display weight 35.7 kg
Display height 958.7 mm
Display depth 29.7 mm
Display width 1679.5 mm
Packaging data
Package weight 44 kg
Package height 1115 mm
Package depth 200 mm
Package width 1820 mm
Packaging content
Cables included AC, Phone
Batteries included Yes
Remote control included Yes
Operational conditions
Operating relative humidity (H-H) 10 - 80%
Operating temperature (T-T) 0 - 40 °C
Features
Heat dissipation (max) 843 BTU/h
Technical details
Real Time Clock (RTC) Yes
Other features
Plug and Play Yes
Audio output 1
