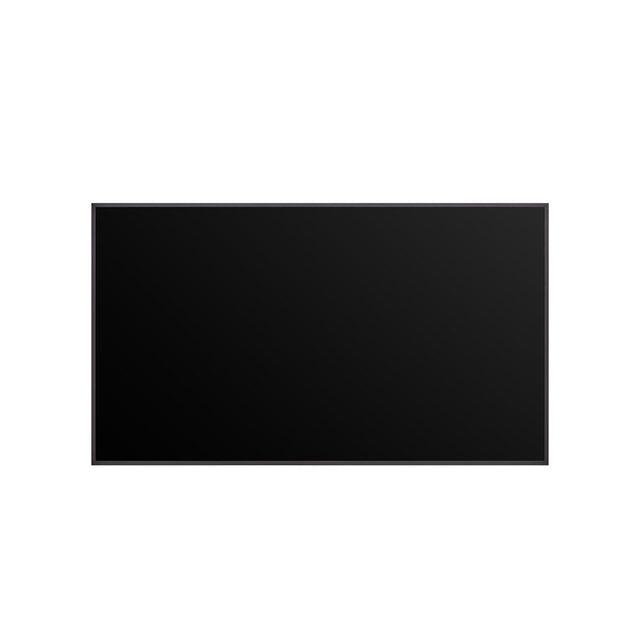

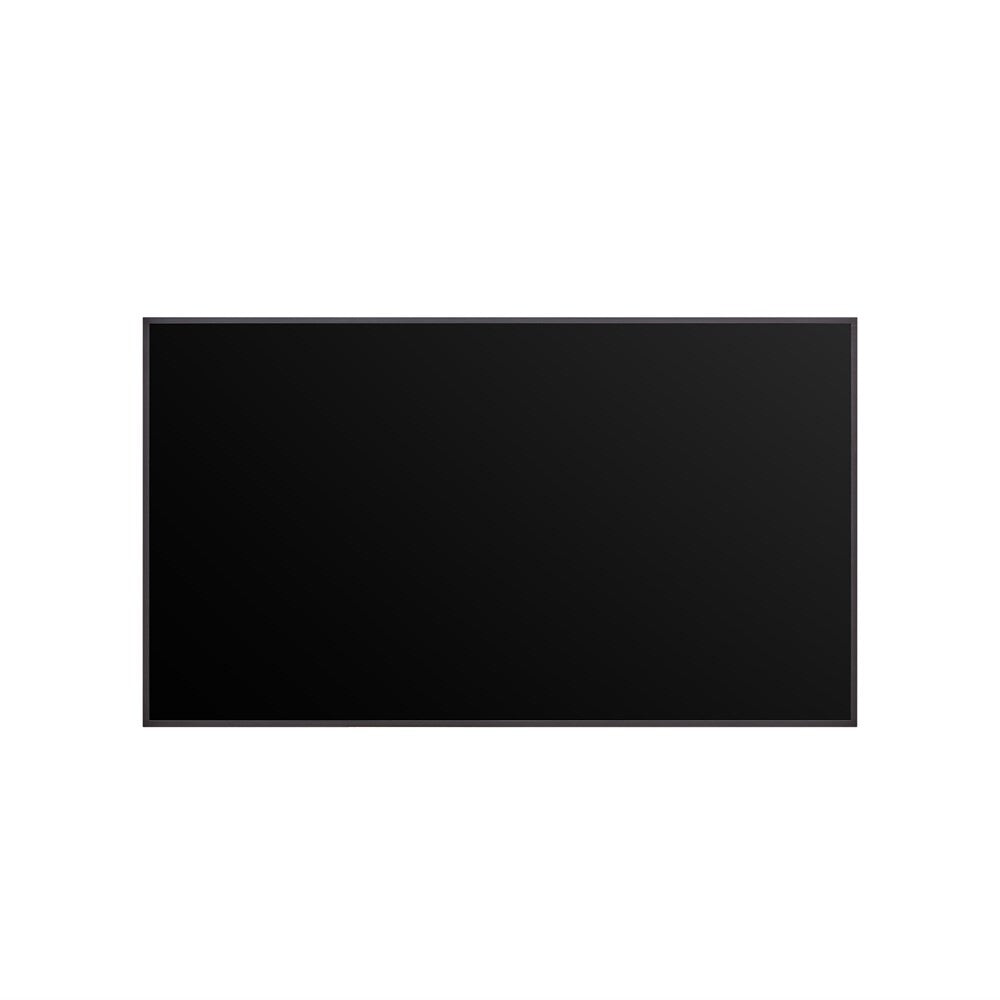

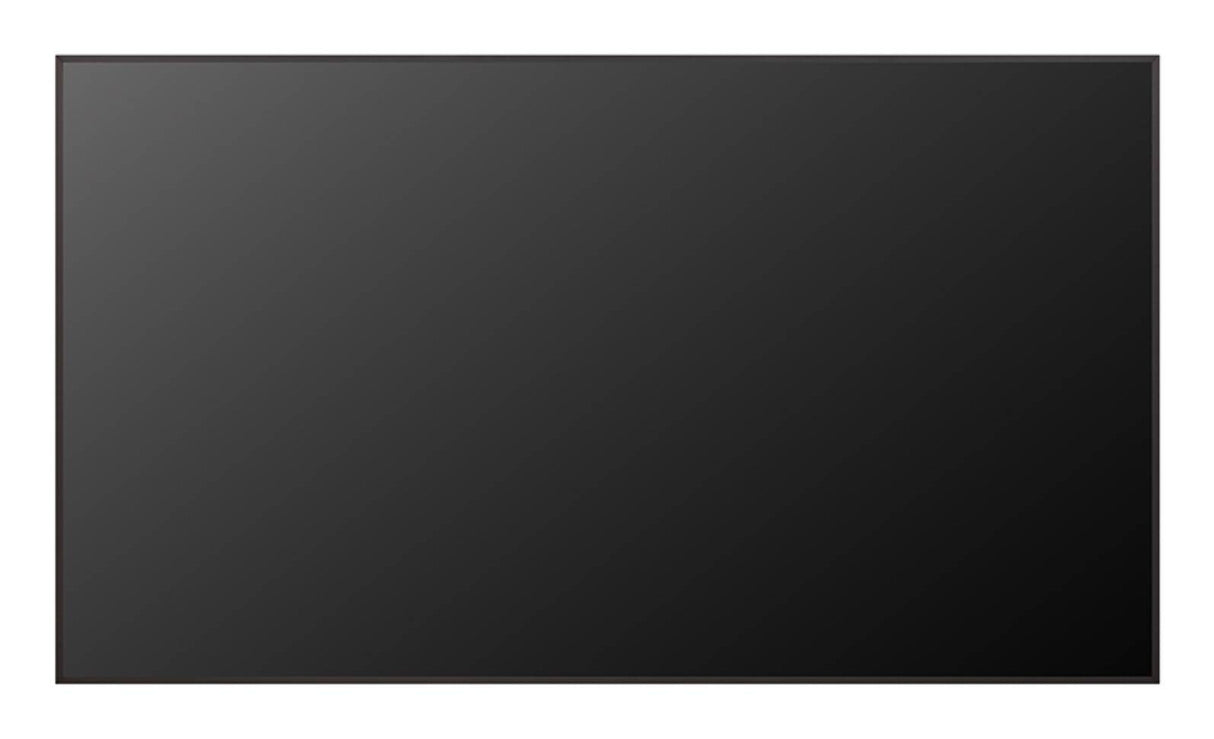

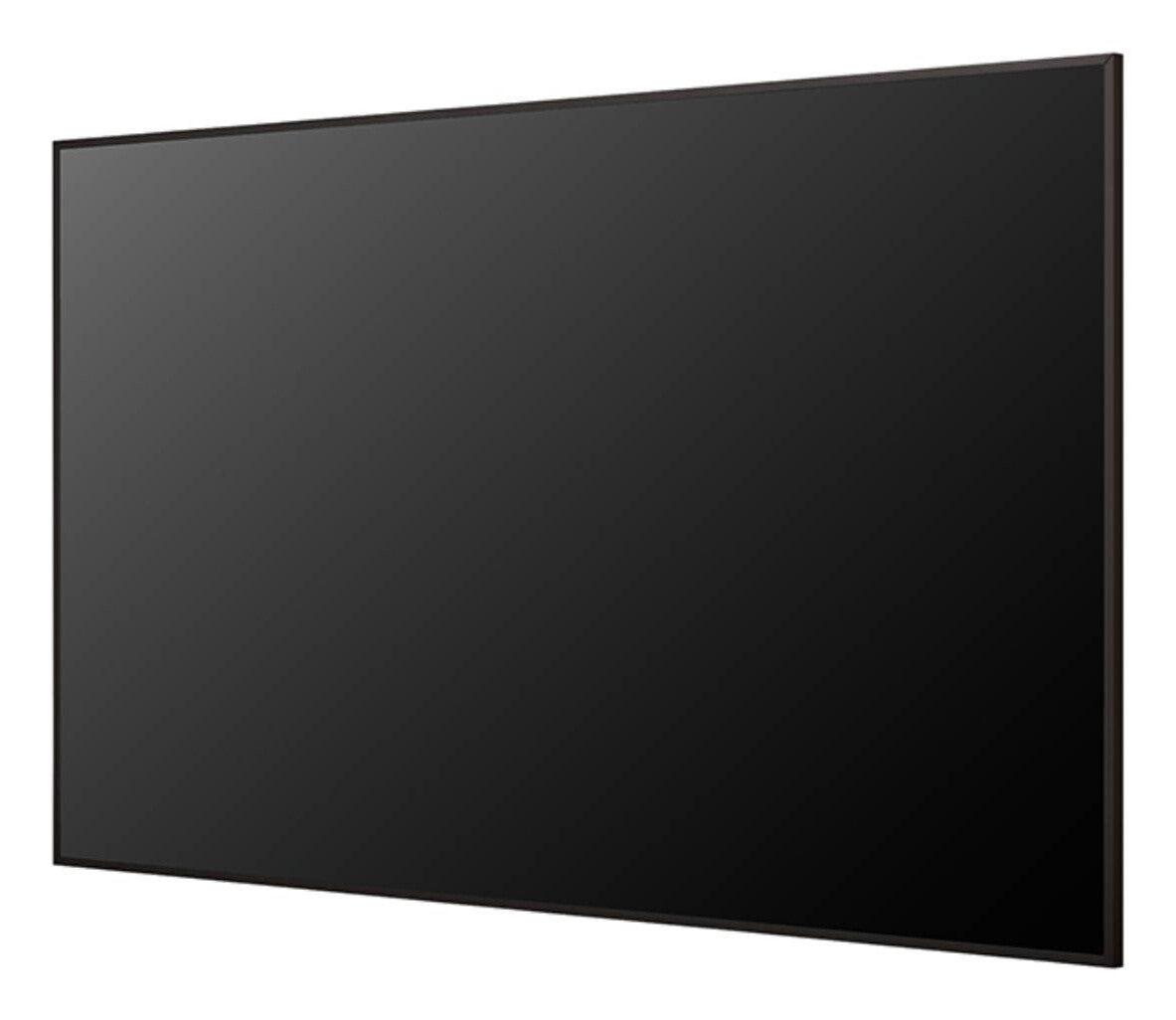

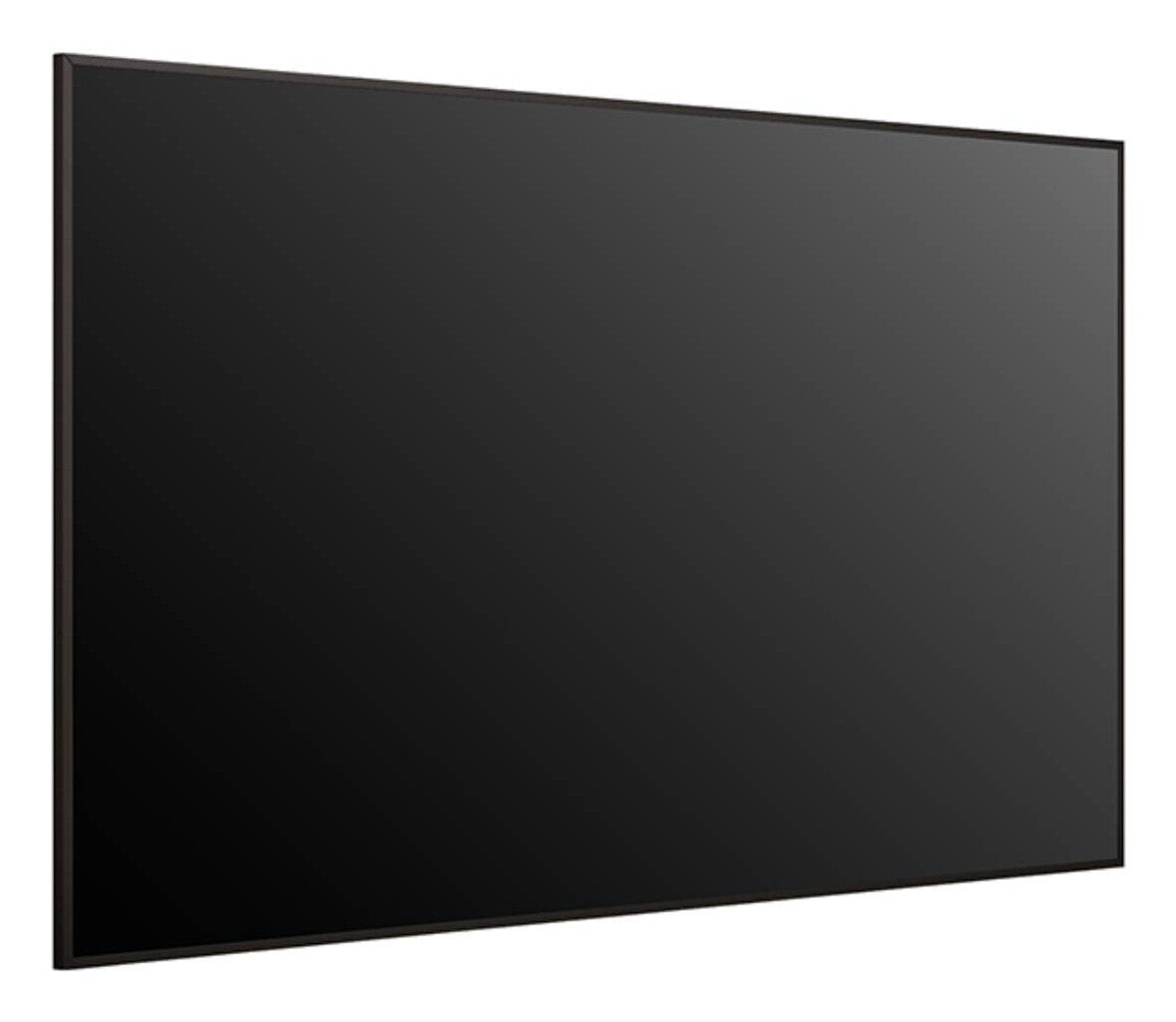

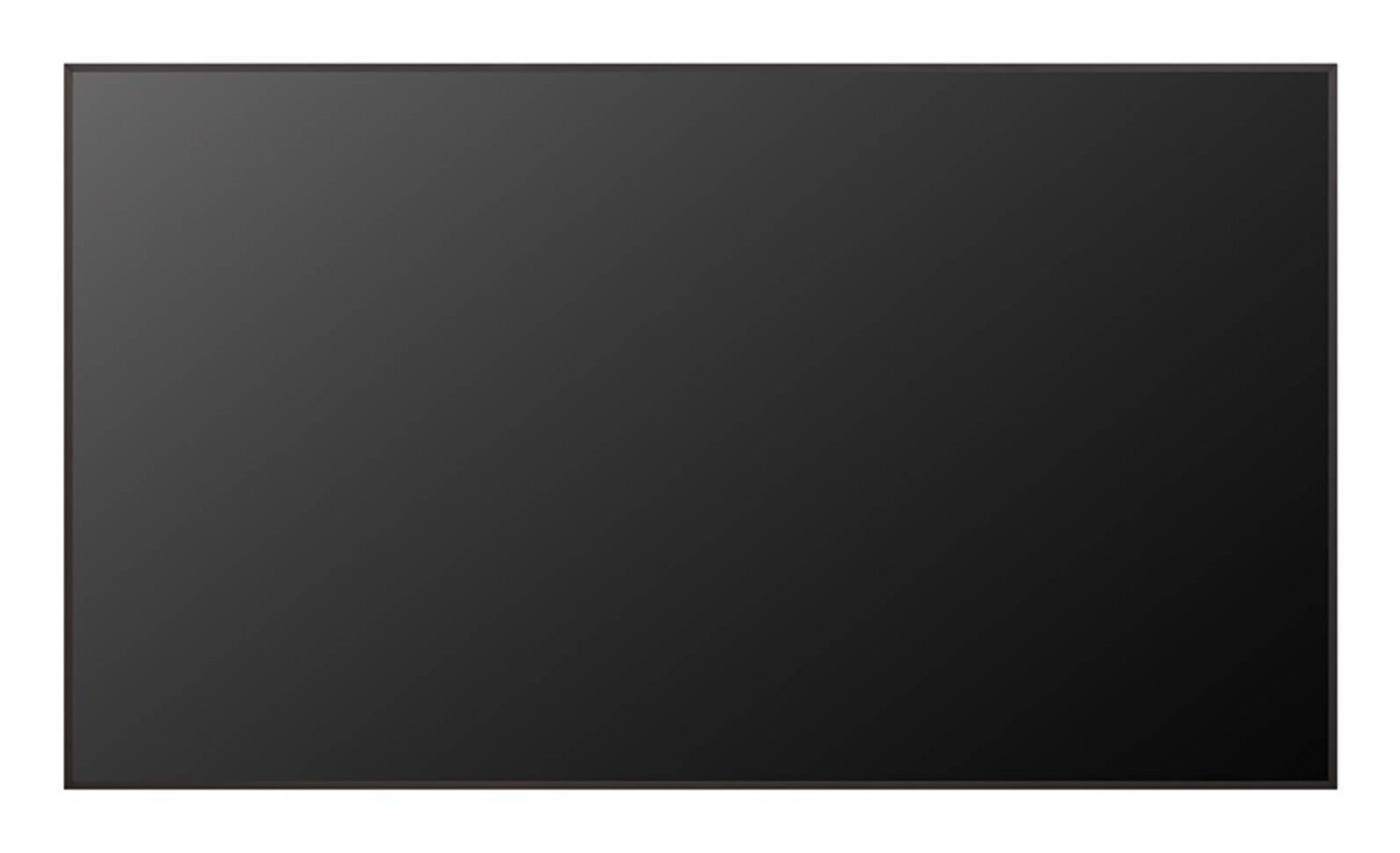

LG 4K UHD Signage Digital signage flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Beskrivelse
Beskrivelse
Large UHD Signage Display with LG webOS Platform and Advanced Security
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 190.5 cm (75") |
| LED backlight | Yes |
| Panel type | ADS |
| LED backlighting type | Edge-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life | 50000 h |
| Supported video modes | 2160p |
| Supported graphics resolutions | 3840 x 2160 |
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| Colour gamut | 95% |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| Consumer Electronics Control (CEC) | Yes |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232C | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.29 cm |
| Bezel width (side) | 1.29 cm |
| Bezel width (top) | 1.29 cm |
| Bezel colour | Black |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Commercial |
| Digital Rights Management (DRM) type | Pro:Idiom |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) languages | Multi |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| webRTC support | Yes |
| Automatic brightness control | Yes |
| HDCP version | 1.4/2.2 |
| International Protection (IP) code | IP5X |
| HDCP | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 160 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 247 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Heat generation (typical) | 546 BTU/h |
| Heat generation (max) | 843 BTU/h |
| Computer system | |
|---|---|
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Internal memory | 16 GB |
| Operating system installed | WebOS |
| Operating system version | 8.0 |
| Weight & dimensions | |
|---|---|
| Display width | 1679.5 mm |
| Display depth | 29.7 mm |
| Display height | 958.7 mm |
| Display weight | 35.7 kg |
| Packaging data | |
|---|---|
| Package width | 1820 mm |
| Package depth | 200 mm |
| Package height | 1115 mm |
| Package weight | 44 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Cables included | Power |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Brand-specific features | |
|---|---|
| LG technologies (AV/TV) | Control Manager, Gapless Playback, ISM Method, SI Server Setting, Local Contents Scheduling, Booting Logo Image, Auto Set ID, Group Manager, No Signal Image, Setting Data Cloning, Status Mailing, Smart Energy Saving |
| Sensors | |
|---|---|
| Gyroscope | Yes |
| Temperature sensor | Yes |
| Network | |
|---|---|
| Security algorithms | SNMP |
| Wake-on-LAN | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CB, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), CE, KC |
| Other features | |
|---|---|
| Bluetooth | Yes |
| Quick start guide | Yes |
| Power consumption (PowerSave) | 112 W |
| Plug and Play | Yes |
