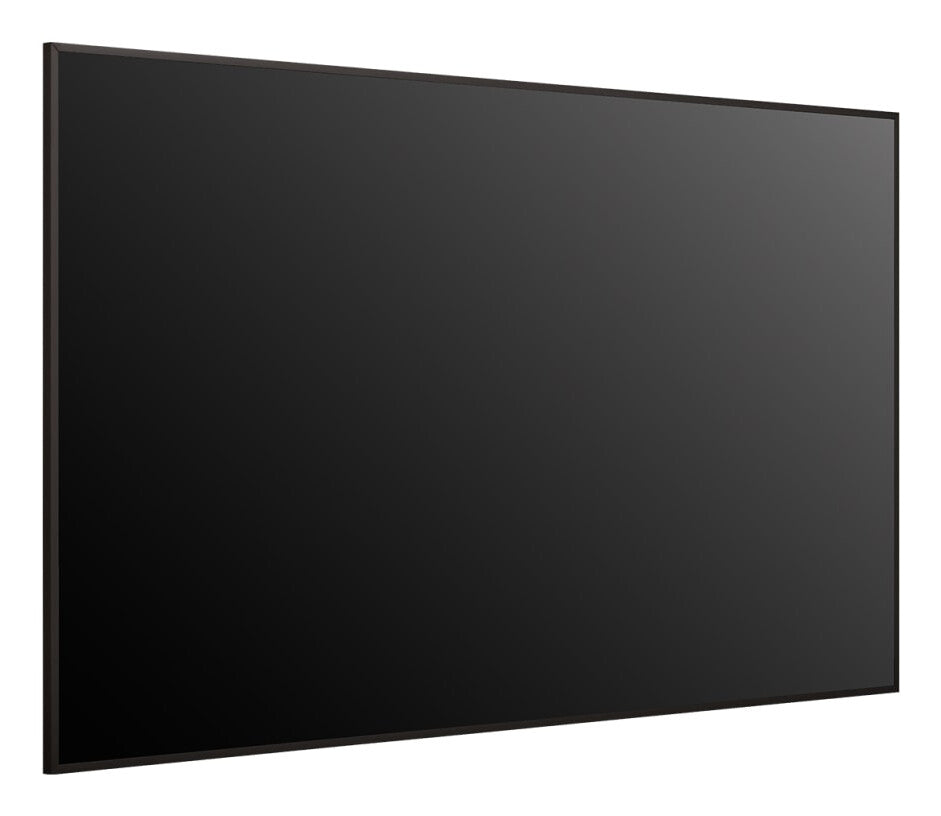

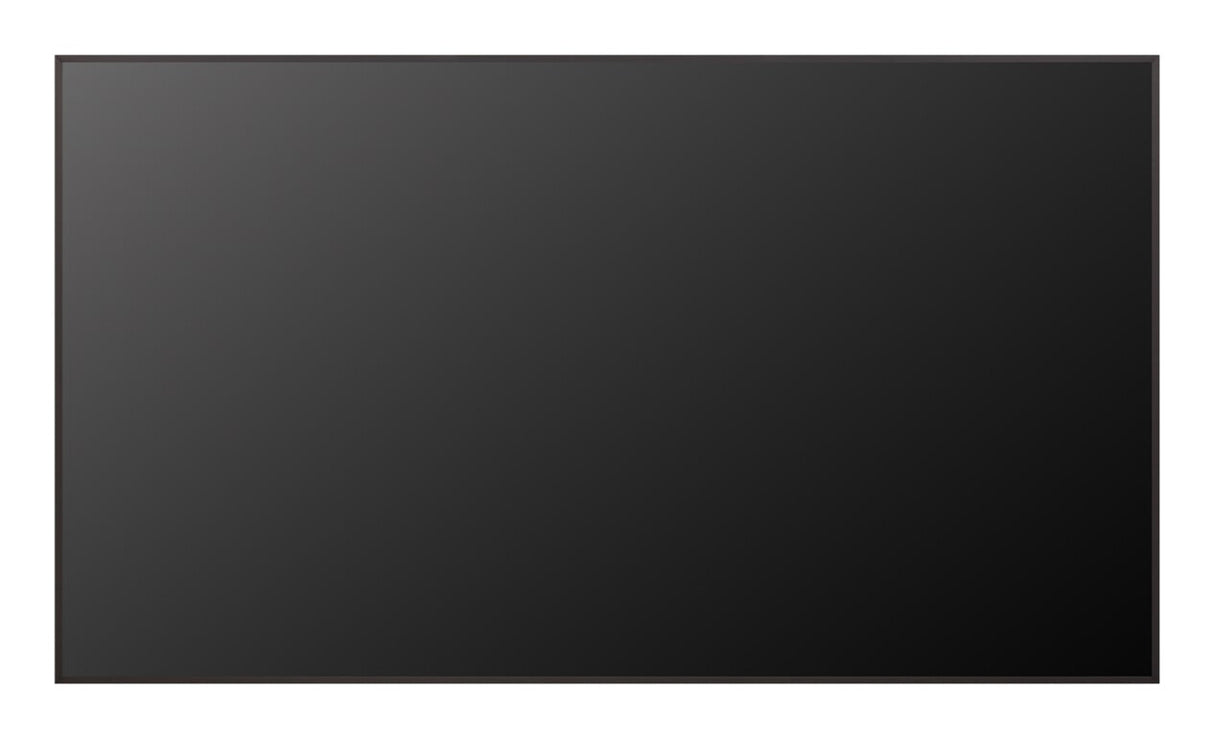

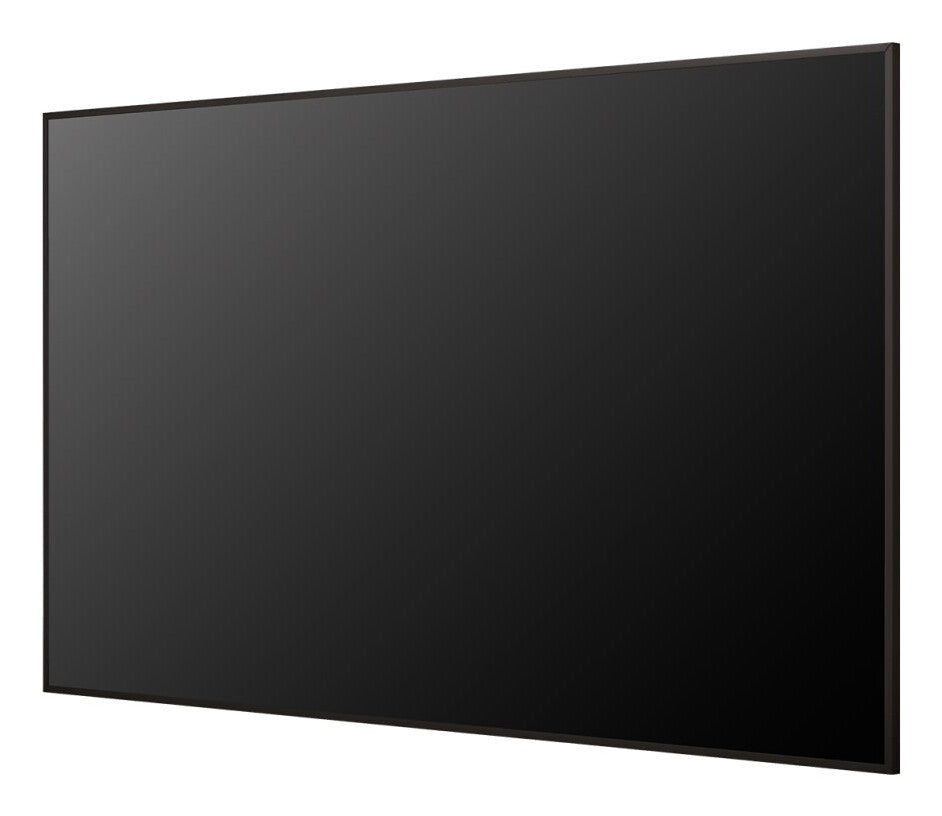

LG 86UH5N-M Digital signage flat panel 2.18 m (86") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

Varenummer: 86UH5N-M

Beskrivelse

86", 4K UHD (3840 x 2160), IPS, 500 nit, 8 ms, IP5X, SoC, Wi-Fi, PIP, PBP, Pro:Idiom, Beacon, Control Manager, SuperSign CMS, webOS 6.0

UHD Signage Display with
LG webOS Platform and Advanced Security

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Design for Space Utilization

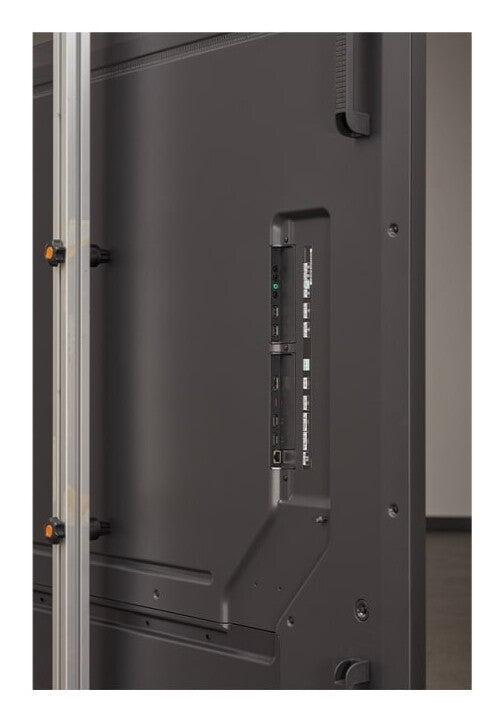

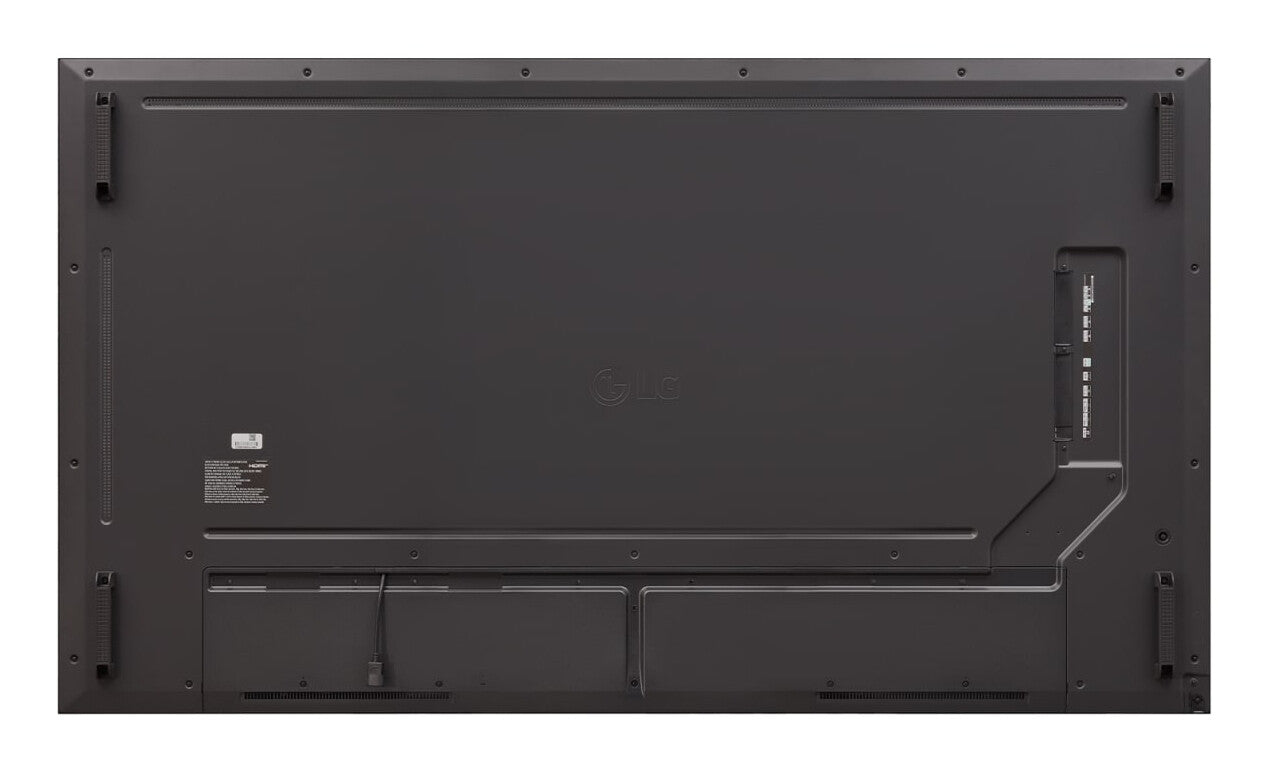

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specifikationer

Display
Display diagonal 2.18 m (86")
Display technology LCD
LED backlight Yes
Panel type IPS
LED backlighting type Edge-LED
Display resolution 3840 x 2160 pixels
Display brightness 500 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Contrast ratio (dynamic) 1000000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Panel life 50000 h
Haze rate 25%
Native refresh rate 120 Hz
Ports & interfaces
HDMI ports quantity 4
HDMI input ports quantity 3
HDMI output ports quantity 1
DVI port No
DisplayPorts quantity 1
USB port No
USB ports quantity 1
USB version 2.0
USB connector type USB Type-A
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
RS-232C Yes
Remote (IR) input 1
Audio
Built-in speaker(s) Yes
RMS rated power 20 W
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Orientation Horizontal/Vertical
VESA mounting Yes
Panel mounting interface 600 x 400 mm
Bezel width (bottom) 1.34 cm
Performance
Purpose Universal
Picture-in-Picture Yes
On Screen Display (OSD) Yes
Operating hours (hours/days) 24/7
HDCP version 1.4/2.2/2.3
International Protection (IP) code IPX5
HDCP Yes
Power
Power consumption (standby) 0.5 W
Power consumption (max) 297 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Heat dissipation 699 BTU/h
Computer system
Computer system Yes
Computer system type System on Chip (SoC)
Internal memory 16 GB
Operating system installed WebOS
Operating system version 6.0
Weight & dimensions
Display width 1928.8 mm
Display depth 29.7 mm
Display height 1099.8 mm
Display weight 53 kg
Packaging data
Package width 2100 mm
Package depth 253 mm
Package height 1250 mm
Package weight 66.7 kg
Packaging content
Remote control included Yes
Batteries included Yes
Cables included AC
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
Features
Heat dissipation (max) 1013 BTU/h
