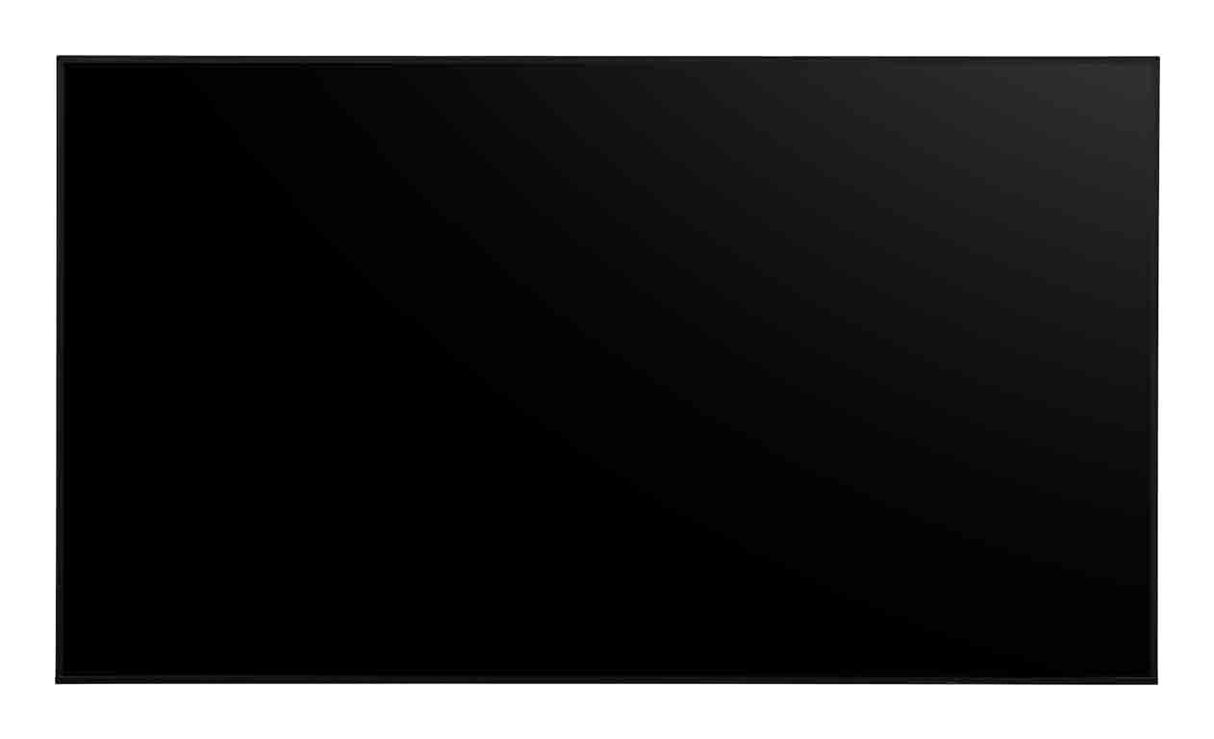

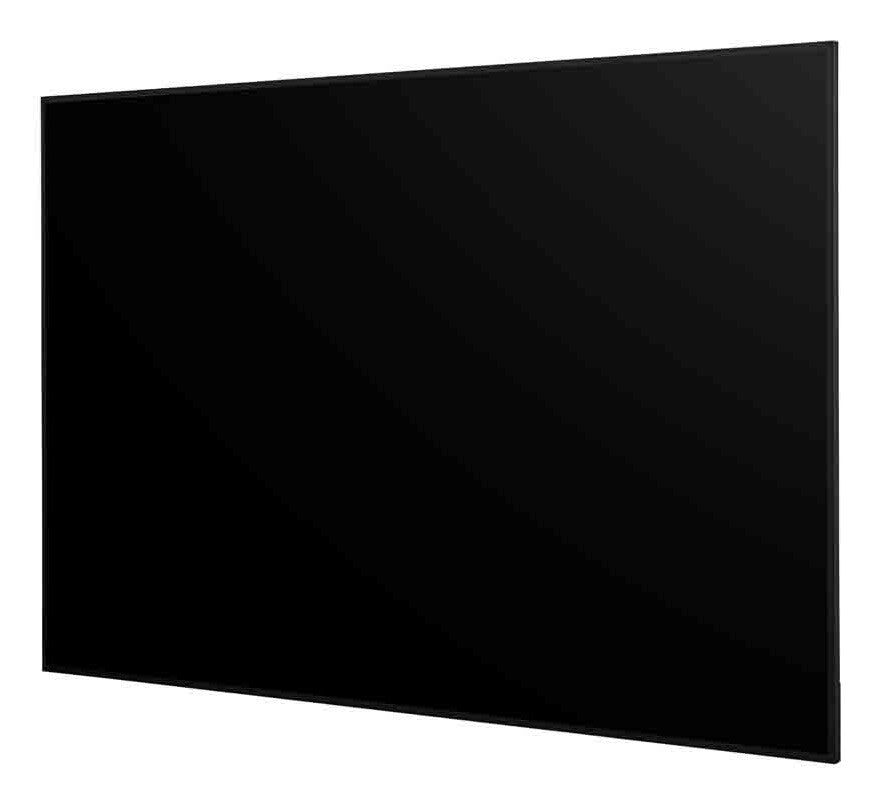

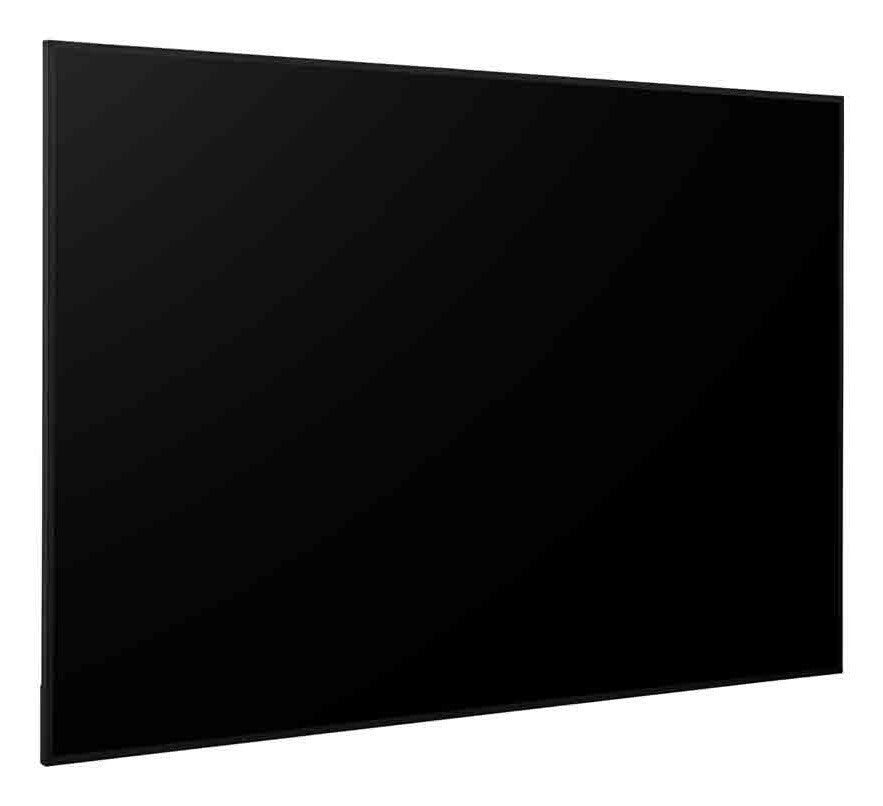

LG 86UL3Q-E Signage Display Digital signage flat panel 2.18 m (86") LED Wi-Fi 350 cd/m² 4K Ultra HD Black WebOS 16/7

Varenummer: 86UL3Q-E

Vælg størrelse

Sendes fra fjernlager

Beskrivelse

86", 3840 × 2160 (UHD), 16:9, 60Hz, HDMI (3), USB, RS232C (Phone Jack Type) In, RJ45 In, 205 W / 287 W, 1926.6 × 1098 × 60 mm

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

High-Performance with LG webOS 6.1
LG webOS 6.1 is available on the UL3Q series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.

Easy Installation with Uniform Bezel Design
The UL3Q series features perfectly balanced horizontal and vertical bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience. The sophisticated, symmetrical bezels enhance the aesthetic appeal of any space, transforming ordinary displays into elegant focal points.

Adaptive Viewing Experience
Experience enhanced flexibility with the UL3Q's innovative Face Up/Down tilt support. Whether mounted high or low, each display can adjusted to better meet viewers at eye level, promoting maximum engagement regardless of installation height. This versatility optimizes both spatial efficiency and visual comfort, delivering clear information from various viewing angles.

Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Built-In Brightness Sensor
The UL3Q's front-mounted sensor automatically adjusts brightness to match various lighting conditions, helping to optimize viewing quality and energy efficiency without manual intervention. This adaptive feature helps maintain consistent display performance while supporting power savings, delivering improved visual experience that responds to environmental changes.

Advanced Security Architecture
The UL3Q incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.

Award-Winning Sustainability
The UL3Q series embodies LG Display's ESG commitment: "Better Life for All." This company-wide dedication to environmental responsibility has earned the prestigious 2025 EcoVadis Platinum medal, placing us among the top 1% of global companies for sustainability excellence.

LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.










Specifikationer

Display
Display diagonal 2.18 m (86")
Display technology LED
Panel type ADS
Display resolution 3840 x 2160 pixels
Display brightness 350 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Contrast ratio (dynamic) 1000000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Colour saturation 80%
Rated lifetime 30000 h
Haze rate 1%
Native refresh rate 60 Hz

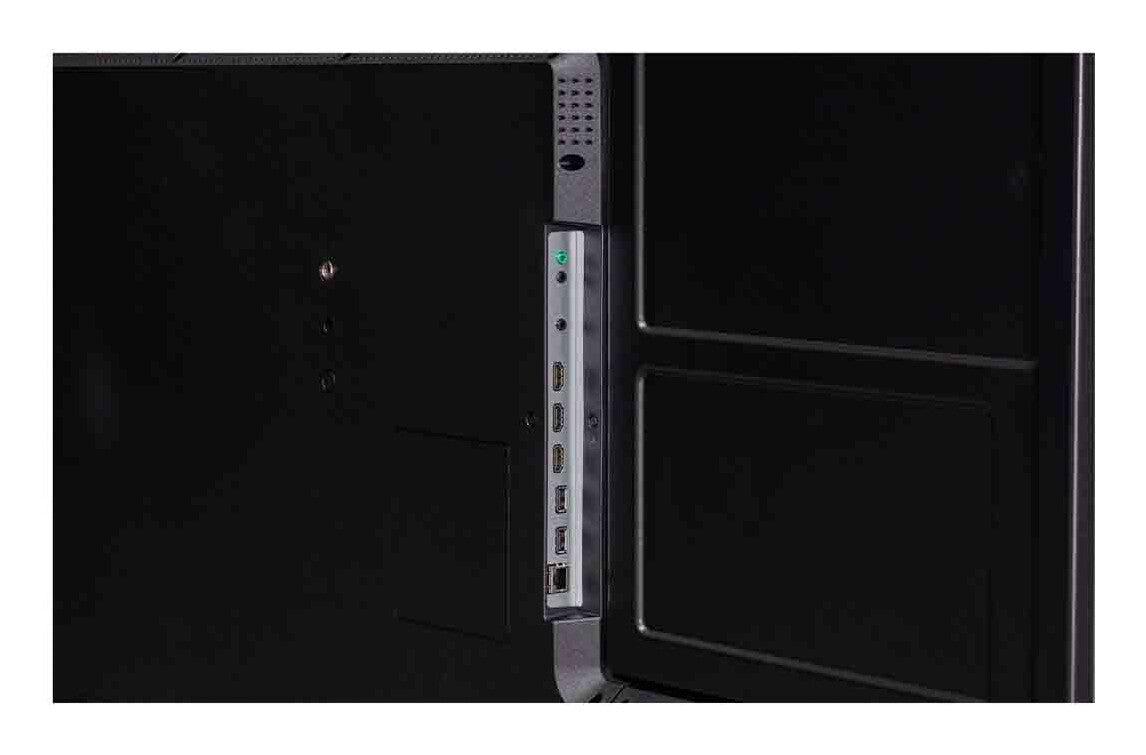

Ports & interfaces
HDMI ports quantity 3
HDMI version 2.2/1.4
USB port Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
RS-232C Yes
PC Audio out Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 20 W
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Orientation Horizontal/Vertical
VESA mounting Yes
Panel mounting interface 600 x 600 mm
Bezel width (bottom) 1.29 cm
Bezel width (side) 1.29 cm
Bezel width (top) 1.29 cm
Bezel colour Black
Performance
Purpose Commercial
On Screen Display (OSD) languages Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days) 16/7
webRTC support Yes
Web browser Yes
Power
Power consumption (typical) 205 W
Power consumption (off) 0.5 W
Power consumption (max) 287 W
Power consumption (economy mode) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Heat generation (typical) 699.489 BTU/h
Heat generation (max) 979.284 BTU/h
Computer system
Internal memory 8 GB
Operating system installed WebOS
Operating system version 6.1
Weight & dimensions
Display width 1926.6 mm
Display depth 60 mm
Display height 1098 mm
Display weight 31.8 kg
Packaging data
Package width 2080 mm
Package depth 1255 mm
Package height 220 mm
Package weight 42.6 kg
Packaging content
Remote control included Yes
Cables included Power
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
Sensors
Gyroscope Yes
Temperature sensor Yes
Technical details
Compliance certificates CB, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC)
