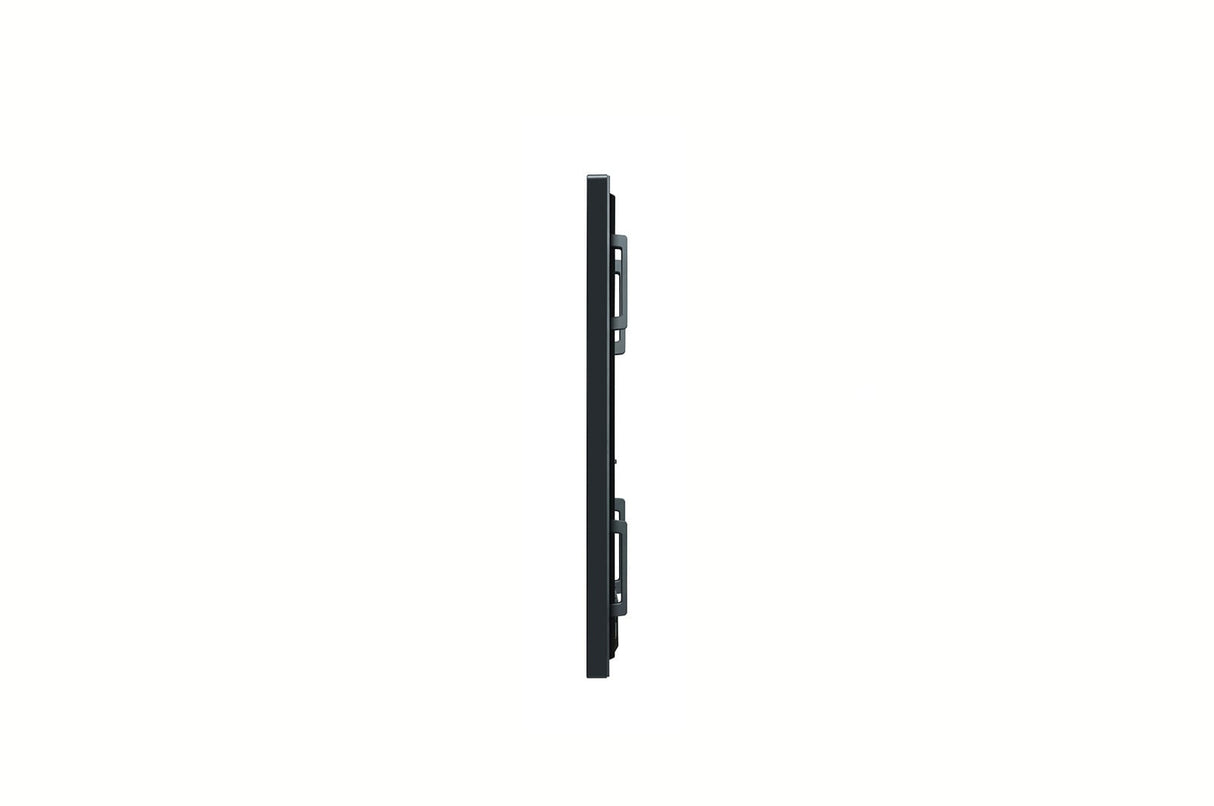

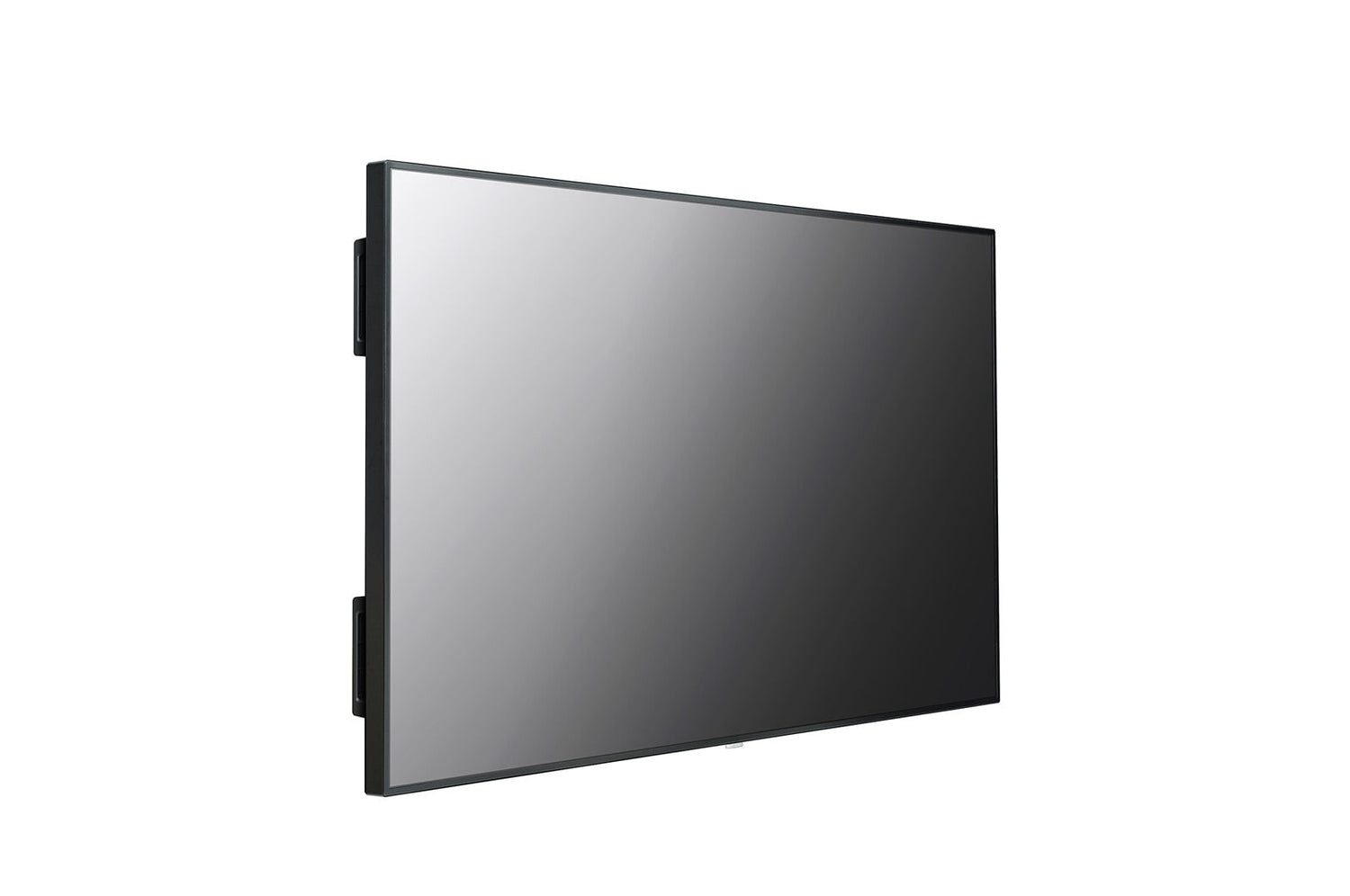

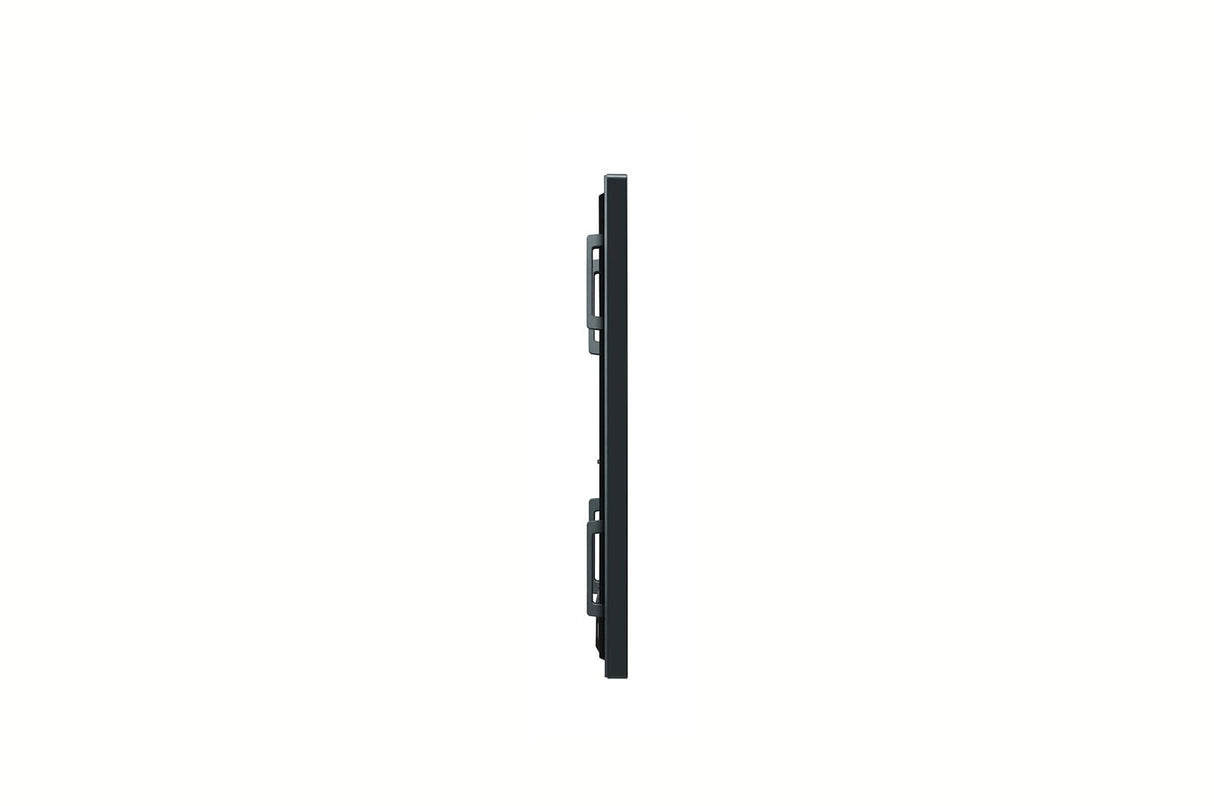

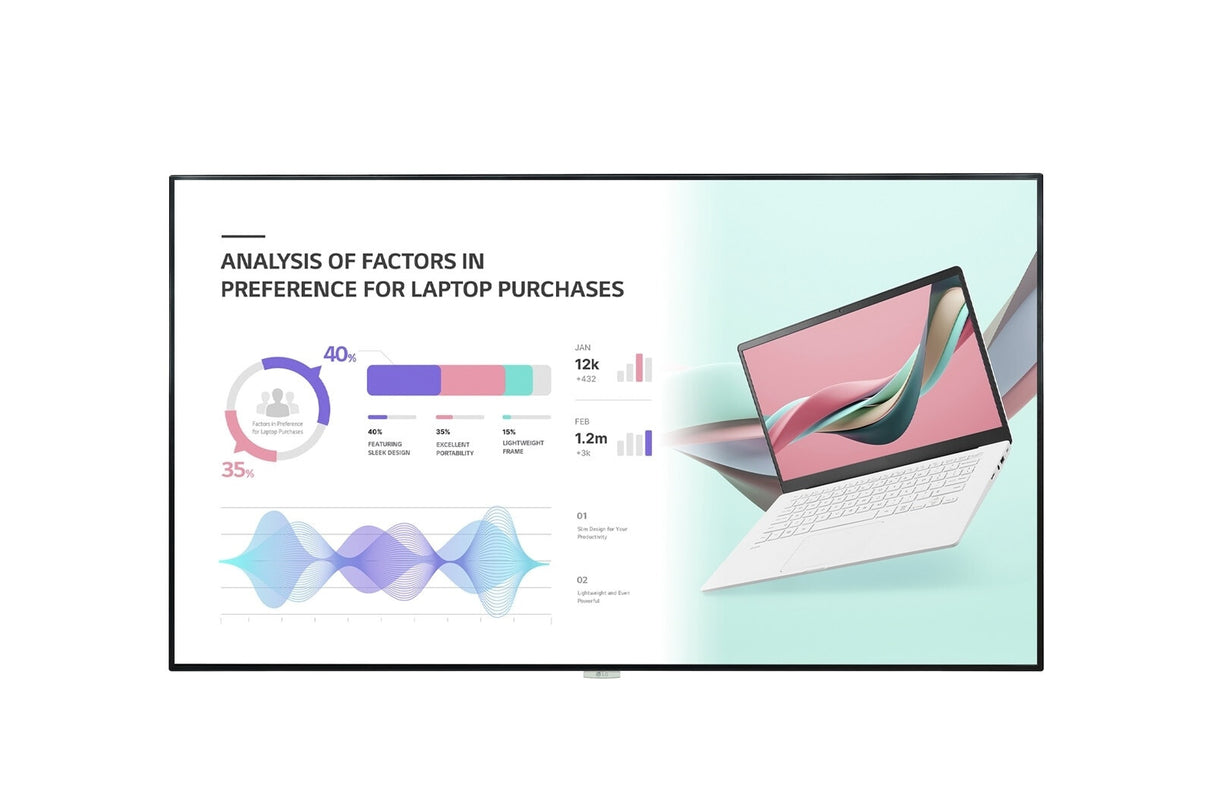

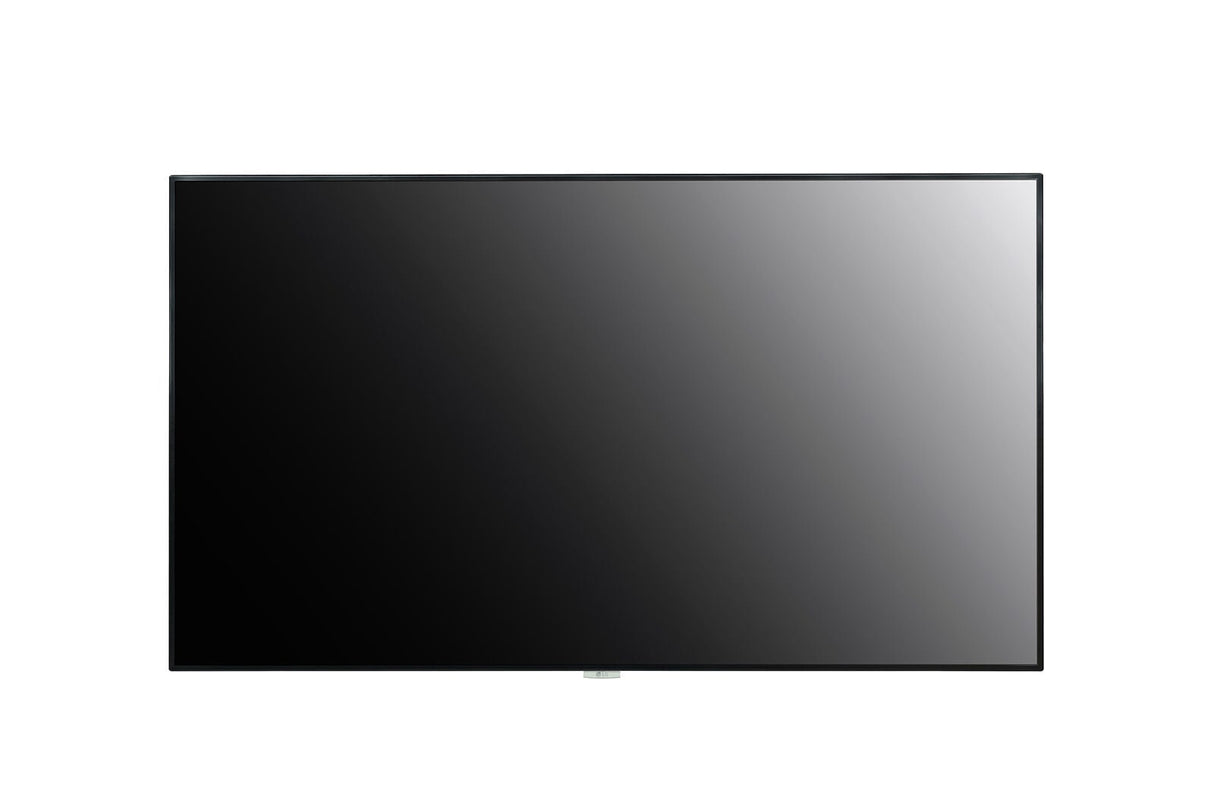

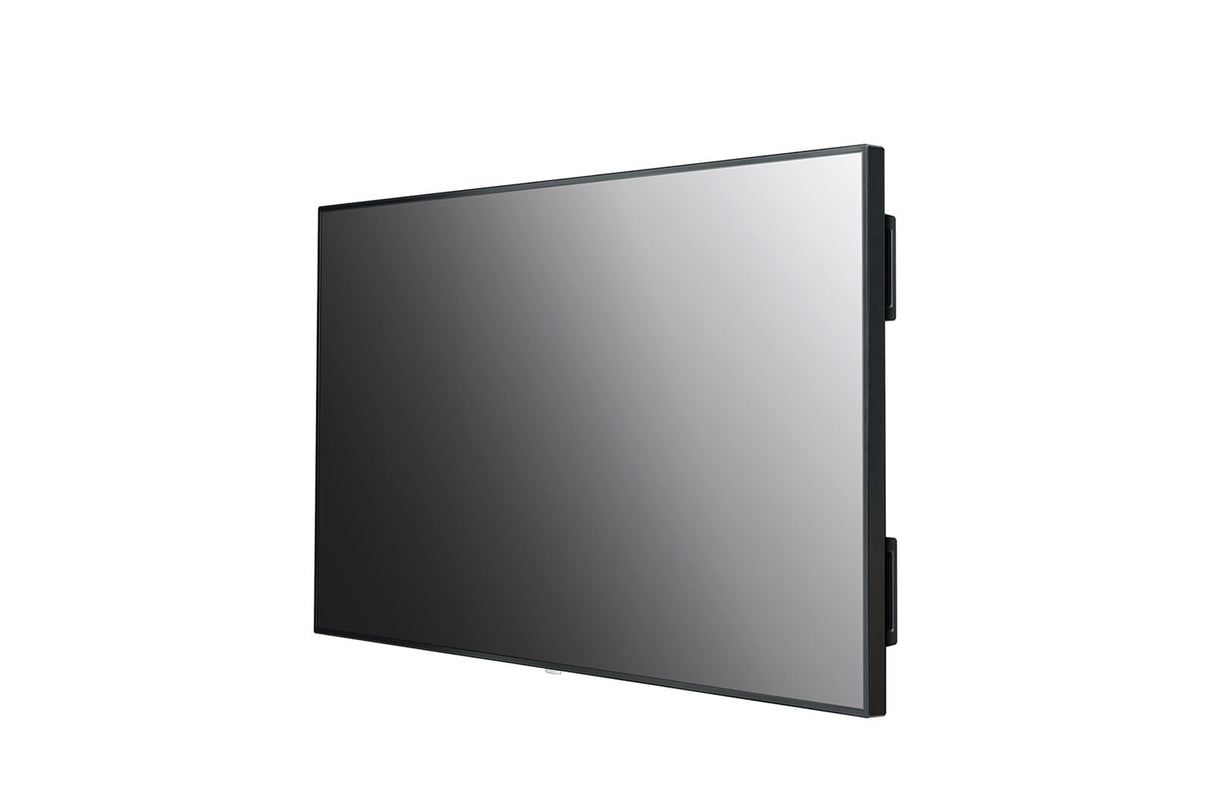

LG 98UH5J-H Signage Display Digital signage flat panel 2.49 m (98") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Beskrivelse
Beskrivelse
Appropriate Display Brightness
With a recommend brightness of 500 cd/m² for indoor display, the UH5J-H series clearly delivers content and attracts public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls, etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
| Panel life | 50000 h |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Response time | 8 ms |
| HD type | 4K Ultra HD |
| Display brightness | 500 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| LED backlighting type | Direct-LED |
| Display technology | LCD |
| Display diagonal | 2.49 m (98") |
| Ports & interfaces | |
|---|---|
| Remote (IR) input | 1 |
| RS-232C | Yes |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 1 |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| USB connector type | USB Type-A |
| USB ports quantity | 1 |
| USB port | Yes |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| HDMI output ports quantity | 1 |
| HDMI version | 2.2/1.4 |
| HDMI ports quantity | 3 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Bezel width (top) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (bottom) | 1.49 cm |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Orientation | Horizontal |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish |
| Purpose | Universal |
| Power | |
|---|---|
| Heat dissipation | 1433 BTU/h |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 420 W |
| Computer system | |
|---|---|
| Operating system installed | WebOS |
| Internal memory | 16 GB |
| Weight & dimensions | |
|---|---|
| Display weight | 66 kg |
| Display height | 1246.8 mm |
| Display depth | 86.1 mm |
| Display width | 2191.8 mm |
| Packaging data | |
|---|---|
| Package weight | 99 kg |
| Package height | 1386 mm |
| Package depth | 420 mm |
| Package width | 2342 mm |
| Packaging content | |
|---|---|
| Cables included | Power |
| Batteries included | Yes |
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CB/NRTL, NewErP, FCC Class "A"/CE/KC |
| Features | |
|---|---|
| Heat dissipation (max) | 1945 BTU/h |
| Other features | |
|---|---|
| Quick start guide | Yes |
