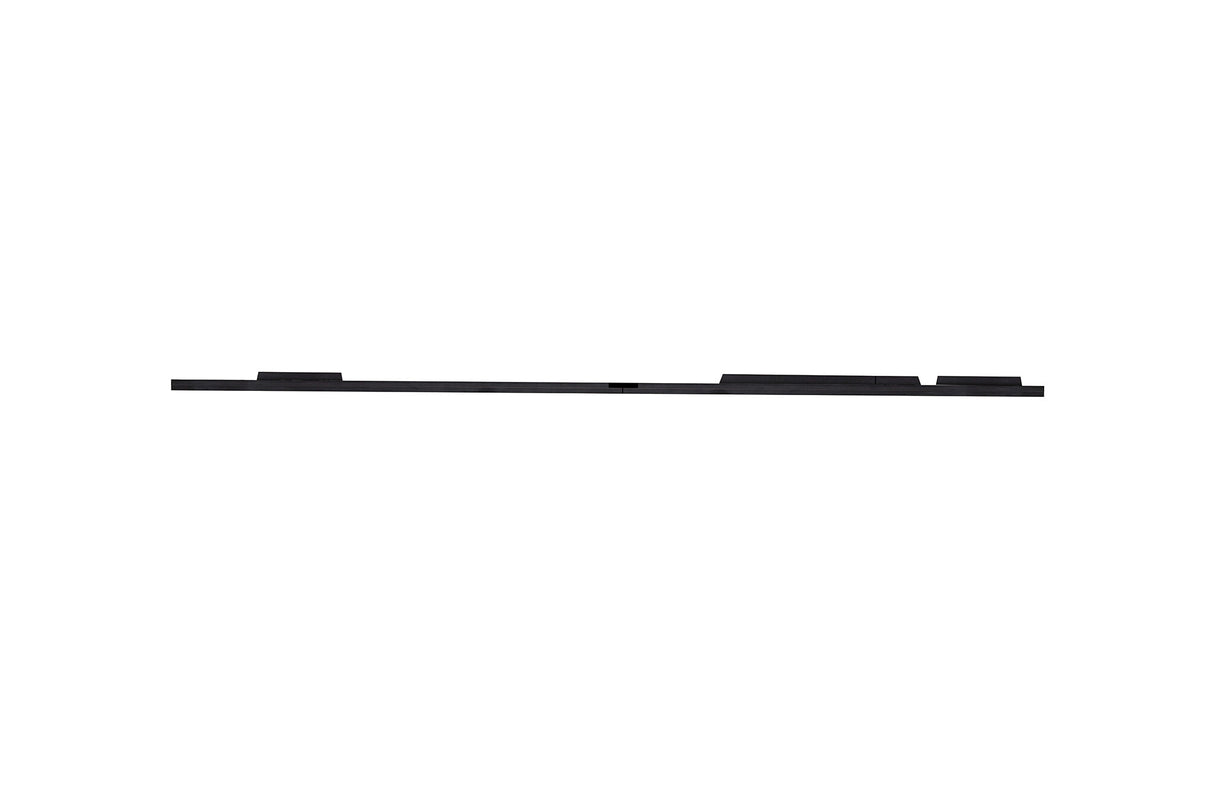

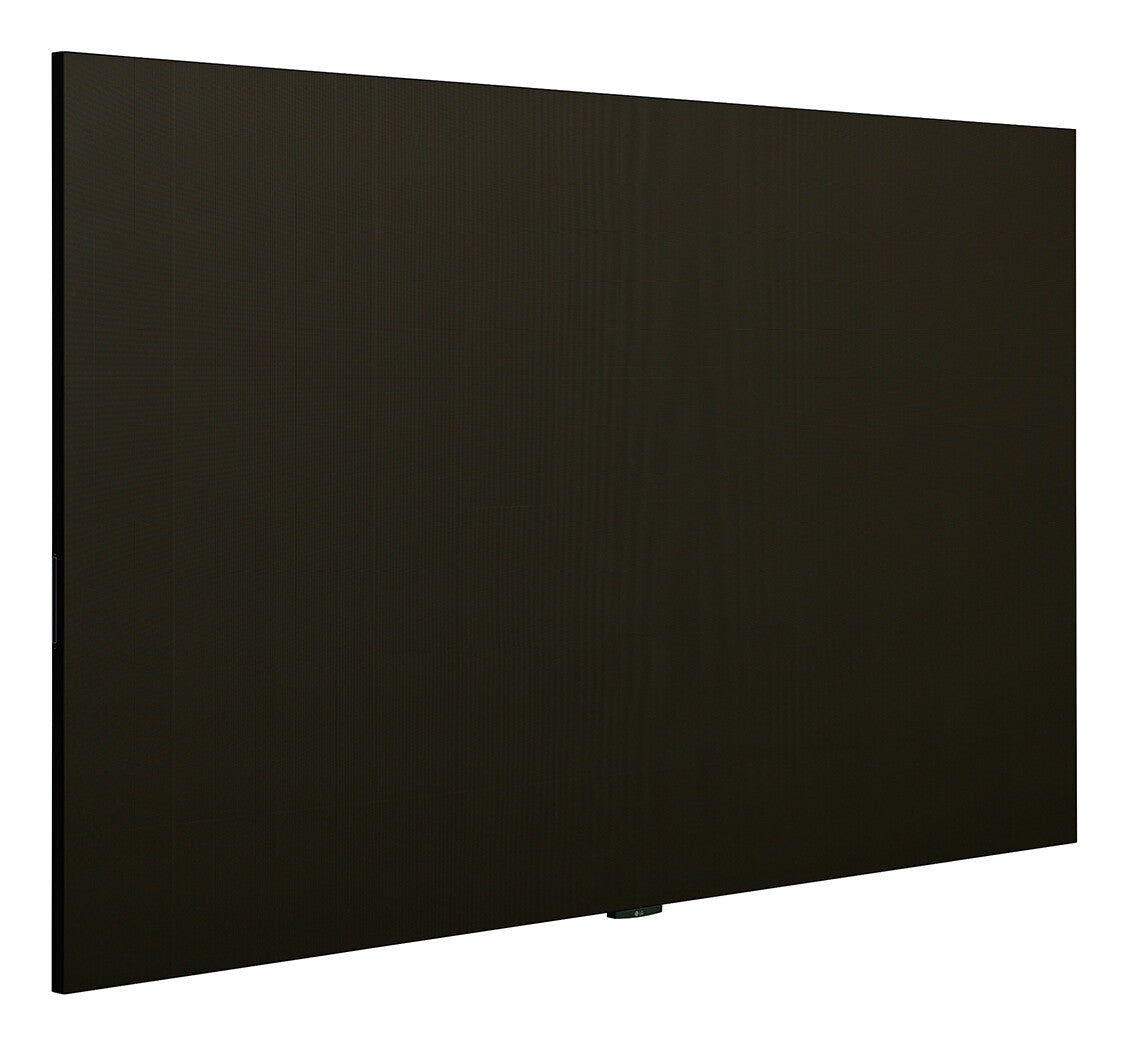

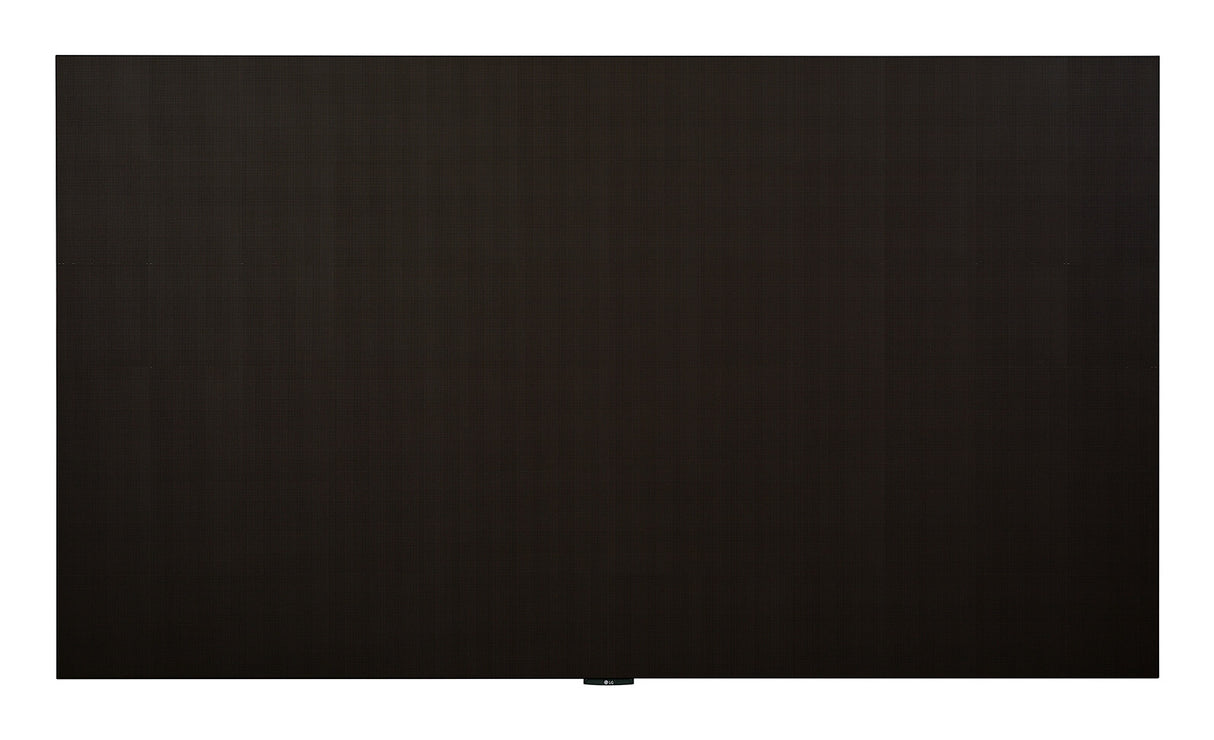

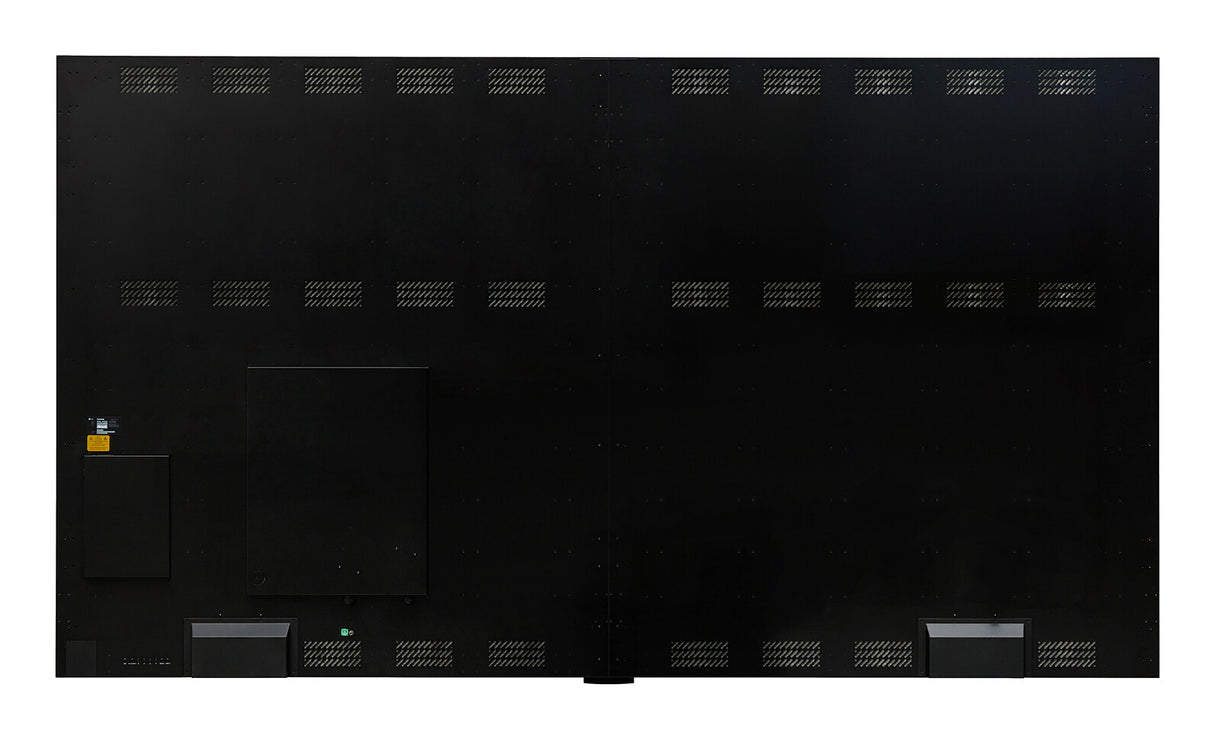

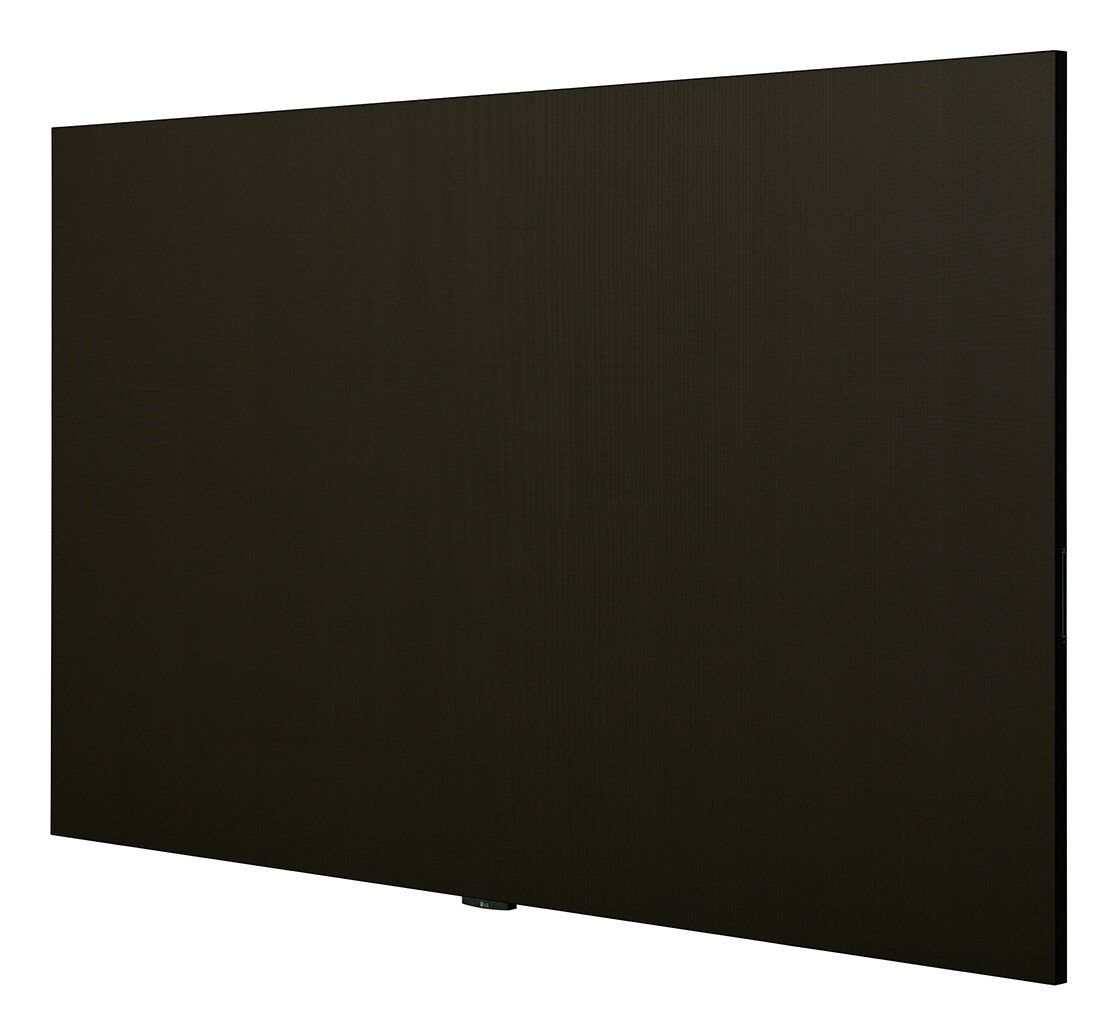

All-in-One LED Display, 163”, 1920 x 1080 px, 190 kg, 9W + 9W, 3604 × 2029 × 45.5 mm
All-in-One LED Screen with Built-in Speaker
LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
High Performance with webOS
Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.
Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
| Display |
|---|
| Rated lifetime |
100000 h |
| Pixel pitch |
1.88 x 1.88 mm |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
160° |
| Contrast ratio (typical) |
3000:1 |
| HD type |
Full HD |
| Display brightness |
500 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LED |
| Display diagonal |
4.14 m (163") |
| Audio |
|---|
| RMS rated power |
18 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| International Protection (IP) code |
IP30 |
| Purpose |
Universal |
| Power |
|---|
| Heat dissipation |
7506 BTU/h |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
2200 W |
| Power consumption (typical) |
880 W |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Computer system type |
System on Chip (SoC) |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
190 kg |
| Display height |
2029 mm |
| Display depth |
45 mm |
| Display width |
3604 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CE, FCC, ETL, CB |
