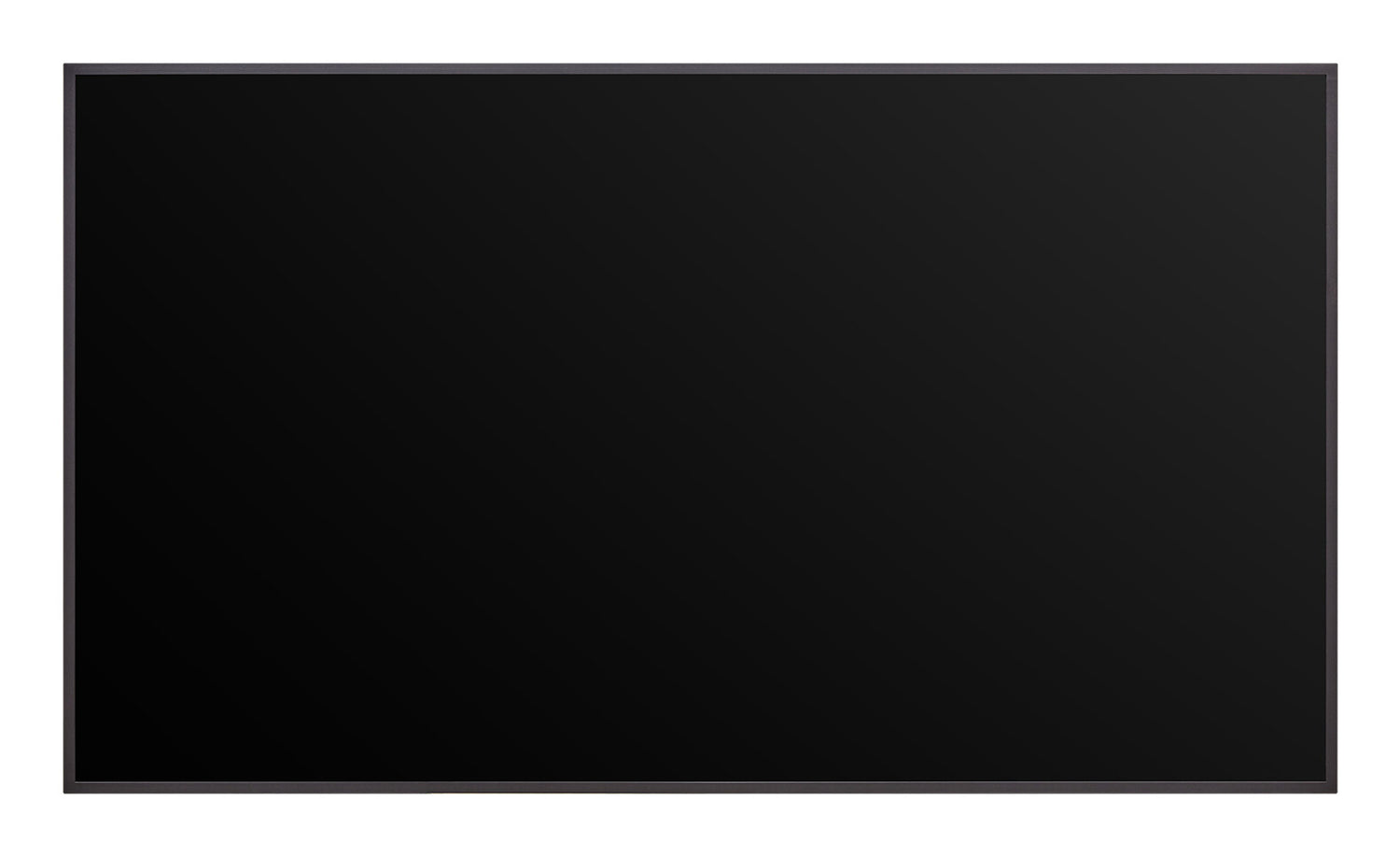

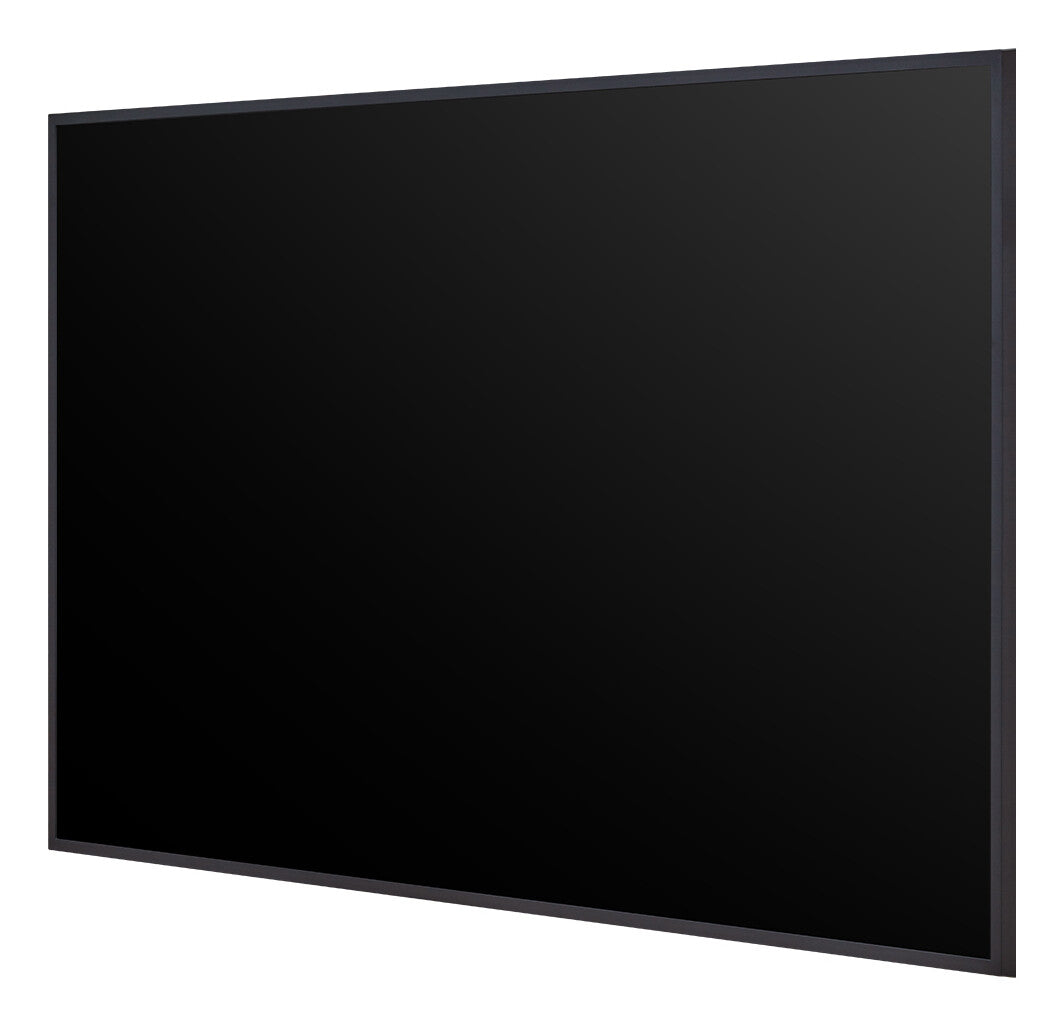

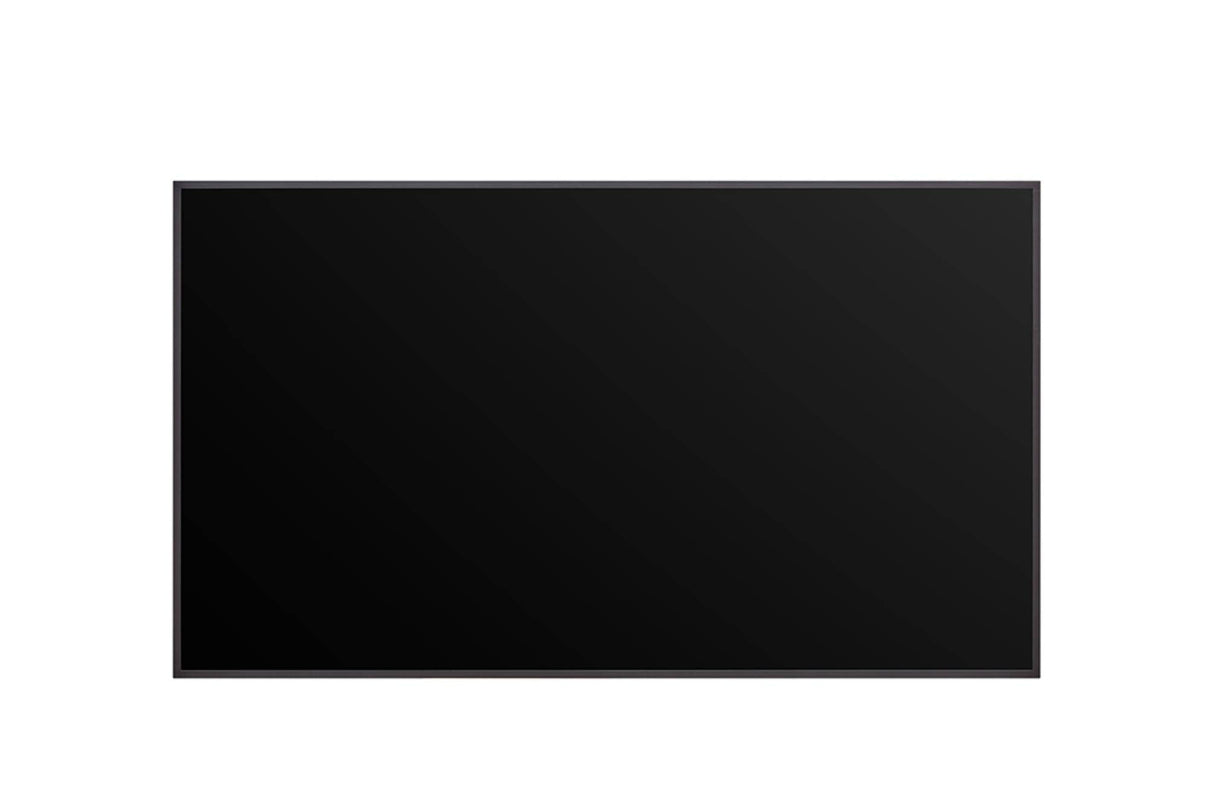

LG UH7Q-E Digital signage flat panel 109.2 cm (43") LED 700 cd/m² 4K Ultra HD Black WebOS 24/7
Sendes fra fjernlager
Beskrivelse
Beskrivelse
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic.
Even & Slim Bezel Design
The UH7Q-E series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience..
Convenient webOS Platform
The UH7Q-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fitsyou.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 109.2 cm (43") |
| Display technology | LED |
| LED backlight | Yes |
| Panel type | ADS |
| LED backlighting type | Edge-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 700 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Rated lifetime | 50000 h |
| Colour depth | 10 bit |
| High Dynamic Range (HDR) supported | Yes |
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| Colour gamut | 95% |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-C |
| USB Power Delivery (USB PD) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel colour | Black |
| Performance | |
|---|---|
| Purpose | Universal |
| On Screen Display (OSD) languages | Multi |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
| Power | |
|---|---|
| Power consumption (typical) | 127 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 83 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 67.7 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | No |
| Operating system installed | WebOS |
| Weight & dimensions | |
|---|---|
| Display width | 1104.3 mm |
| Display depth | 29.7 mm |
| Display height | 645.5 mm |
| Display weight | 11.1 kg |
| Packaging data | |
|---|---|
| Package width | 1055 mm |
| Package depth | 142 mm |
| Package height | 660 mm |
| Package weight | 12.8 kg |
| Packaging content | |
|---|---|
| Tilt angle | 15° |
| Remote control included | Yes |
| Cables included | AC, USB Type-C |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Brand-specific features | |
|---|---|
| LG technologies (AV/TV) | Smart Energy Saving |
| Features | |
|---|---|
| Wall mountable | Yes |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), KC, CE |
| Sustainability certificates | ErP, ENERGY STAR |
| Other features | |
|---|---|
| Safety | CB / NRTL |
| Bezel width | 1.14 cm |
| Power supply type | Internal |
