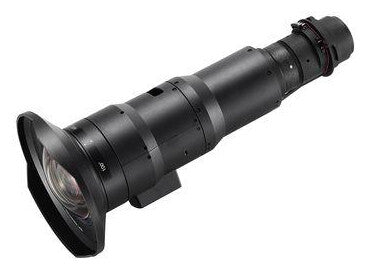

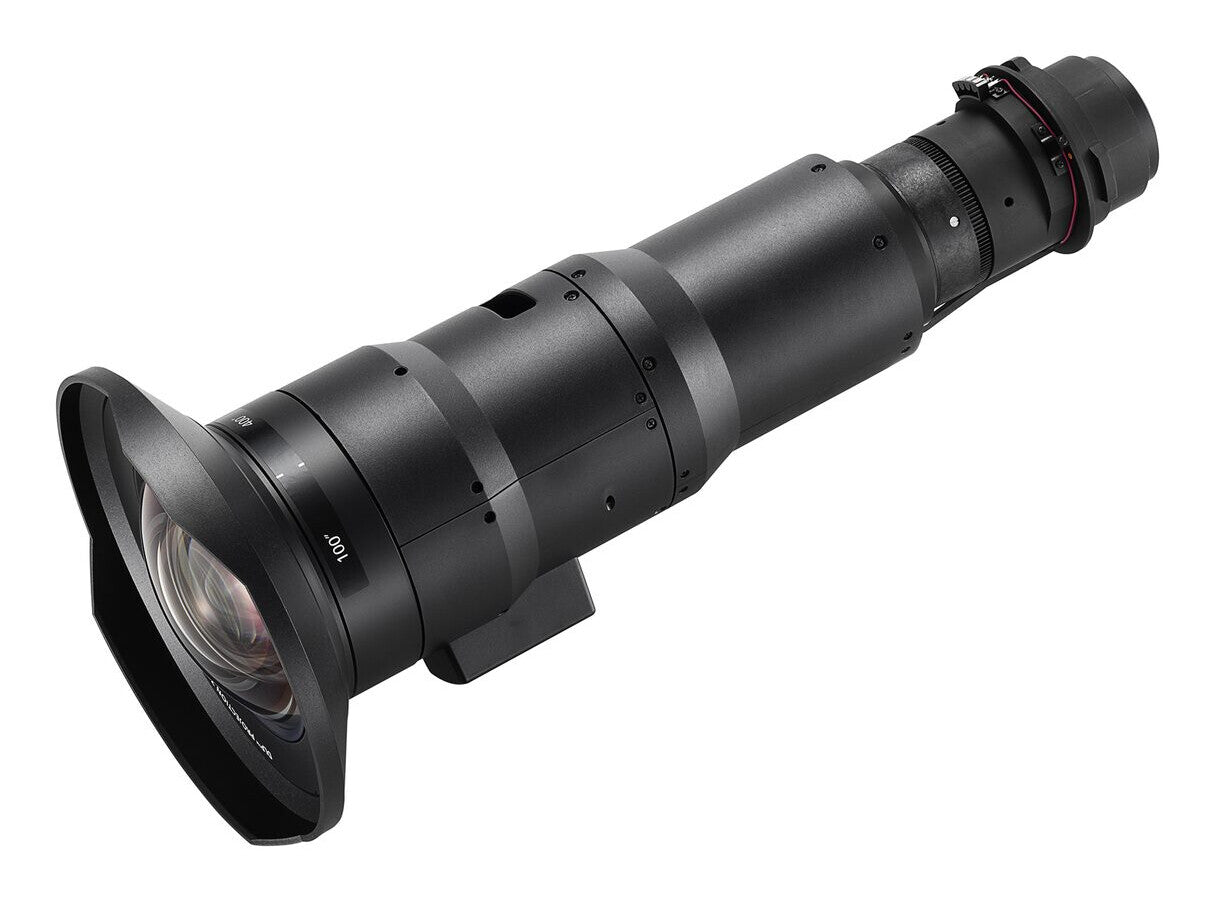

Panasonic ET-DLE020 projection lens PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620

Varenummer: ET-DLE020

Sendes fra fjernlager

Leveres normalt indenfor 4-8 uger

Beskrivelse

4.1-4.4mm f-f, 2F, 100-400", 170x391x170mm, 3.2kg, BLack

Superior Flexibility for Easy Installation

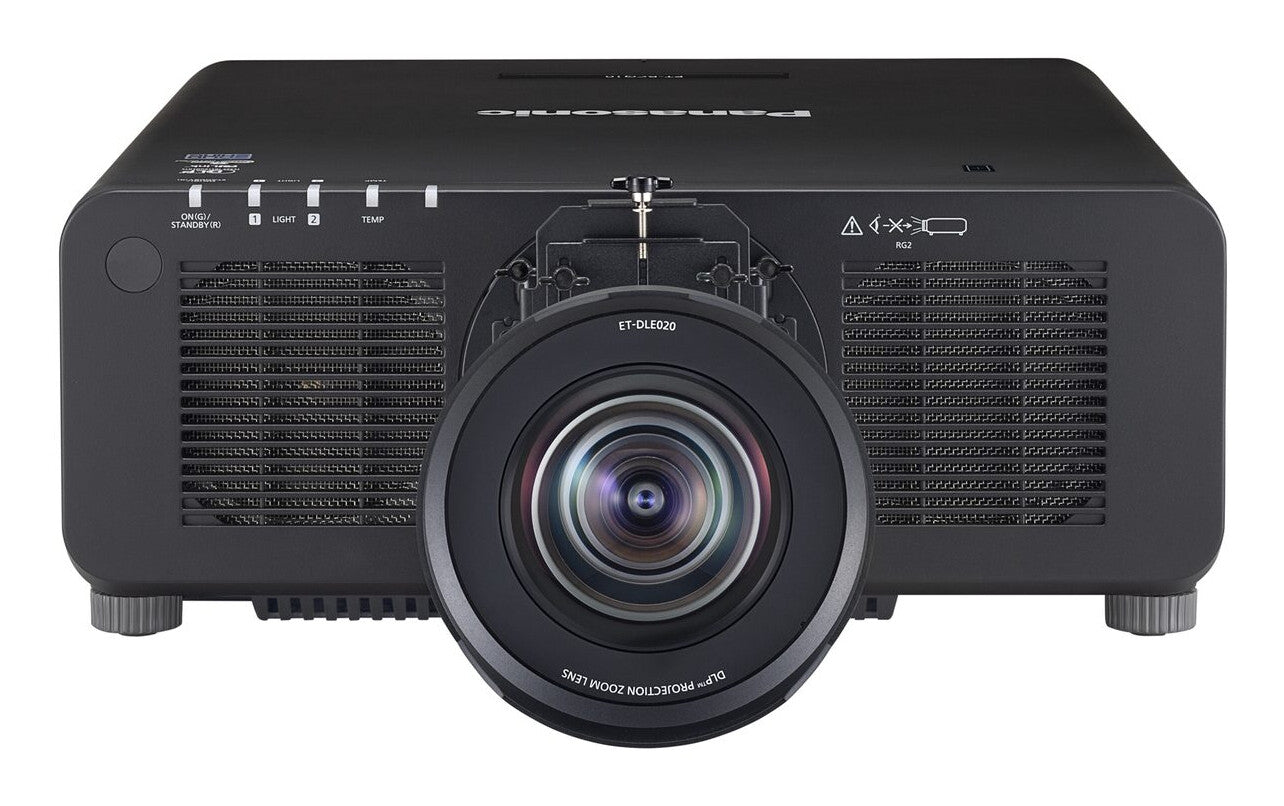

Conventional ultra-short-throw lenses demand accurate, time-consuming projector installation positioning with no margin for error. The ET-DLE020’s optical zoom, however, provides an installation margin of ±45 mm (±1.77˝) and easy image adjustment at a throw-ratio of 0.280:1, all with zero image offset. Combines with Panasonic laser projectors*1 to support Wide-range Vertical and Horizontal Lens-Shift, more than doubling movable shift area of comparable lenses, increasing installation flexibility, and expediting setup.

High Reliability for Continuous Operation
The ET-DLE020 features an aspherical all-glass lens that’s heat- and scratch-resistant. Durable construction enhances reliability for long-term use, and when combined with our dust-resistant laser projectors*, assures consistently brilliant images under continuous operation.

On-Axis Rear Projection

The ET-DLE020’s straight mirrorless design makes screen-centered projector installation possible in rear-projection applications.

Zero Offset and Flexible Setup for Multi-Screen Projection

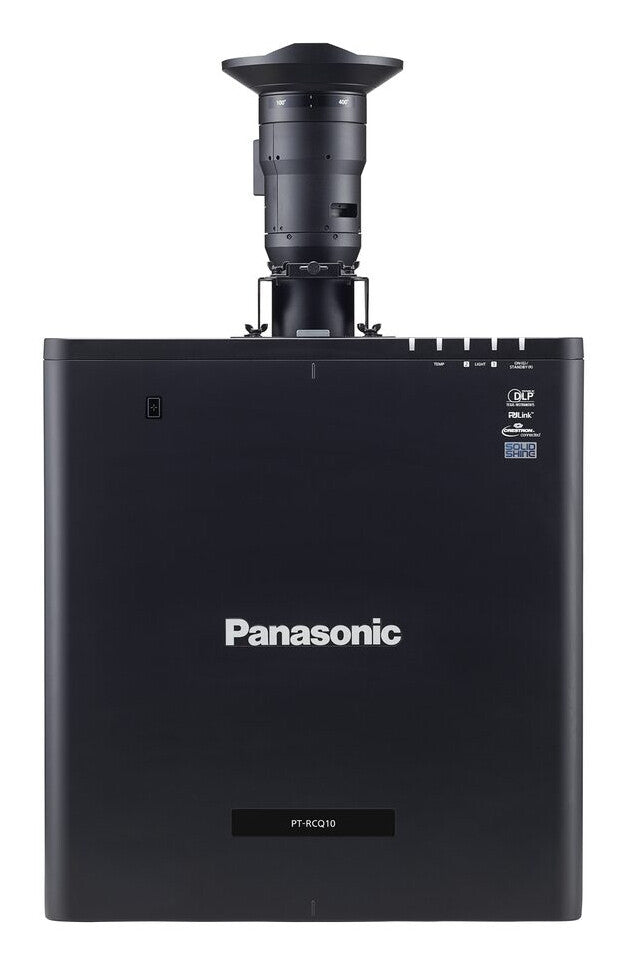

Install your Panasonic 1-Chip DLP™ laser projector on-ceiling and close to the wall for full top-to-bottom screen coverage with zero offset and minimal shadowing, even in low-ceiling applications. Zoom and wide-range V/H Lens Shift joins flexible edge-blending adjustment for multi-screen projection.

Specifikationer

Features
Compatibility PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620
Brand compatibility Panasonic
Product colour Black
F-number (relative aperture) 2
Projected image size 100 - 400
Focal length range 4.1 - 4.4 mm
Throw ratio 0.280 - 0.309:1
Weight & dimensions
Weight 3.2 kg
Diameter 17 cm
Dimensions (WxDxH) 170 x 391 x 170 mm
Depth 389 mm
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 90021100
