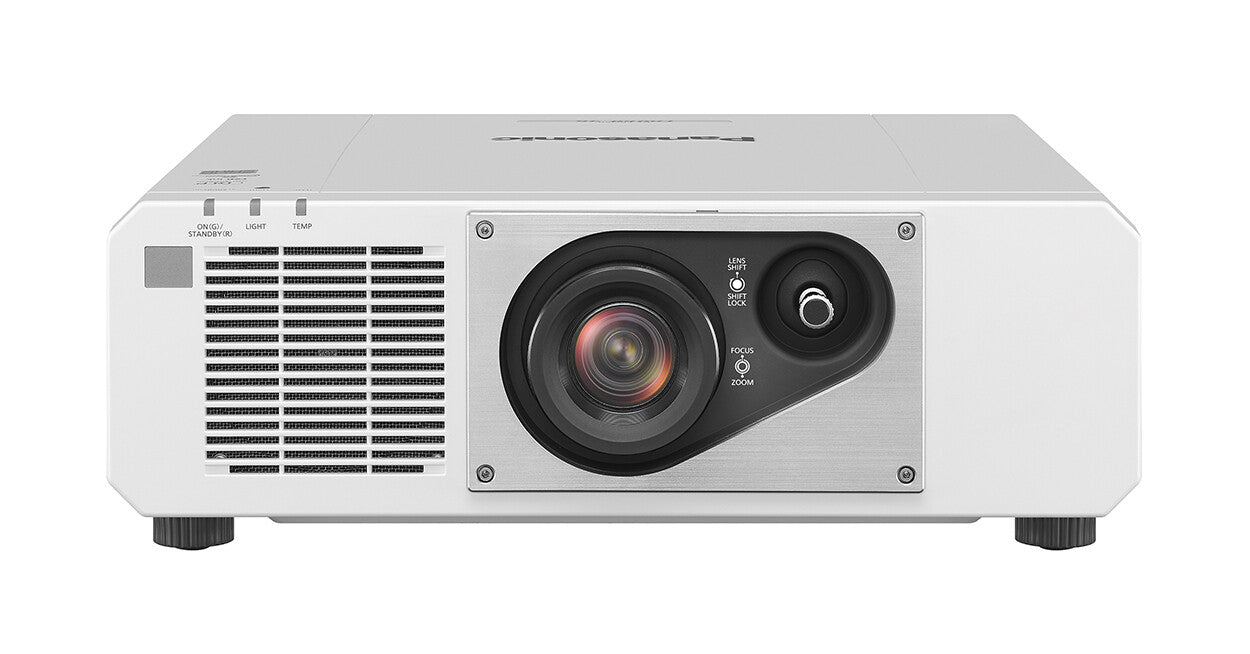

Fixed lens 1-Chip DLP™ Projector with True 4K resolution
Exceptionally Smooth and Detailed 4K Image Quality
Quad Pixel Drive 2-axis pixel-quadrupling technology creates detailed 4K images retaining natural sharpness and clarity, while Rich Color Enhancer produces vivid, accurate colors. High-speed 240 Hz processing creates smooth, grid-less images while supporting up to 240 Hz/1080p frame rates with a minimal latency of 8 ms or less.
Flexible, Simple to Use, and Easy to Integrate
Versatile 2.0x zoom supports flexible throw-distances while V/H Lens-Shift expands installation flexibility. Two CEC-compliant HDMI® inputs join DIGITAL LINK and LAN terminals for easy integration into 4K infrastructure. Preactivated upgrade kits for Geometry Manager Pro*1 and new Remote Preview Lite*2 secure an effortless 4K experience.
Highly Reliable Low-Maintenance Projection
Filterless heat-pipe-based cooling draws heat from the hermetically sealed optical block to support 20,000-hour*6 maintenance-free projection. Multi Monitoring & Control Software with optional Early Warning functions*7 prevents downtime by alerting the operator before problems occur, streamlining management and enhancing reliability in museums, classrooms, and offices.
| Projector |
|---|
| Keystone correction, horizontal |
-20 - 20° |
| Keystone correction, vertical |
-40 - 40° |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Smart projector |
No |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
20000:1 |
| Projector native resolution |
UHD 4K (3840x2160) |
| Projection technology |
DLP |
| Projector brightness |
6000 ANSI lumens |
| Light source |
|---|
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Vertical lens shift range |
-48 - 71% |
| Horizontal lens shift range |
-27 - 34% |
| Throw ratio |
1.46 - 2.93:1 |
| Zoom ratio |
2.0:1 |
| Zoom type |
Manual |
| Zoom capability |
Yes |
| Aperture range (F-F) |
2 - 3.4 |
| Focal length range |
21.5 - 43 mm |
| Focus |
Manual |
| Ports & interfaces |
|---|
| Serial interface type |
RS-232C |
| Audio (L/R) out |
1 |
| Audio (L/R) in |
1 |
| USB 2.0 ports quantity |
1 |
| DVI port |
No |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Noise level (standby) |
31 dB |
| Noise level |
36 dB |
| Interactive |
No |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Product colour |
White |
| Market positioning |
Business |
| Product type |
Large venue projector |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
505 W |
| Power source |
AC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Height |
168 mm |
| Depth |
492 mm |
| Width |
498 mm |
| Weight |
16.4 kg |
