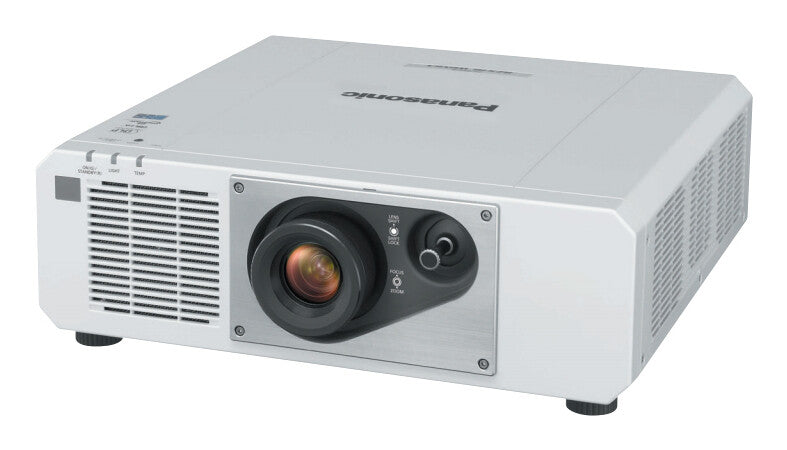

Panasonic PT-FRZ60WEJ data projector Standard throw projector 6000 ANSI lumens DLP WUXGA (1920x1200) White

Varenummer: PT-FRZ60WEJ

Sendes fra fjernlager

Leveres normalt indenfor 4-8 uger

Beskrivelse

1-Chip DLP laser projector, 6000 lm, 1920 x 1200, 20000:1, HDMI, USB, LAN, 35 dB, White

Brilliant, Dynamic Images in Bright Rooms
The PT-FRZ60 Series adds a new Dynamic Contrast 2 setting to its Dynamic Contrast function, which uses digitally controlled scene-linking to directly modulate laser output, to further enhance contrast accuracy. Quartet Color Harmonizer boosts vibrancy while Rich Color Enhancer adjusts wheel-timing to optimize image quality to suit different picture modes.

Light and Compact Projectors are Easy to Install and Work Silently
Projector operating noise is suppressed to an inaudible 27 dB*3 in Quiet Mode. A 2.0x optical zoom*4 improves installation flexibility while 4K signal input*5 via CEC-compatible HDMI® and DIGITAL LINK smooths integration with 4K infrastructure. There’s a separate LAN terminal, and a 5 V/2 A USB outlet to support wireless projection.

Proven SOLID SHINE Laser Reliability
The PT-FRZ60 Series features a high-efficiency filterless cooling system, hermetically sealed DMD block, and dust-resistant shielded laser drive to assure 20,000 hours*6 of stable maintenance-free projection. A linear brightness ramp and strong color retention preserve image quality for longer.

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
*2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
*3 FRZ50/FRZ55 only (TBD). FRZ60 operates at 30 dB in Quiet Mode (TBD).
*4 Excluding the PT-FRZ55.
*5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®.
*6 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast 2, temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % will vary depending on environment and usage conditions. Parts other than the light source may require replacement before 20,000 hours, and checkup is recommended around this time.

Specifikationer

Projector
Keystone correction, horizontal -20 - 20°
Keystone correction, vertical -40 - 40°
Matrix size 1.7 cm (0.67")
Uniformity 90%
Screen size compatibility 1016 - 7620 mm (40 - 300")
Native aspect ratio 16:10
Contrast ratio (typical) 20000:1
Projector native resolution WUXGA (1920x1200)
Projection technology DLP
Projector brightness 6000 ANSI lumens
Light source
Service life of light source 20000 h
Light source type Laser
Lens system
Vertical lens shift range -44 - 64%
Horizontal lens shift range -27 - 34%
Throw ratio 1.46 – 2.94:1
Zoom type Manual
Zoom capability Yes
Aperture range (F-F) 2 - 3.4
Focal length range 21.5 - 43 mm
Focus Manual
Video
Full HD Yes
Ports & interfaces
Serial interface type RS-232C
Audio (L/R) in 1
USB 2.0 ports quantity 1
HDBaseT port Yes
Composite video in 1
HDMI ports quantity 2
VGA (D-Sub) ports quantity 2
Network
Wi-Fi No
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN Yes
Storage
Card reader integrated No
Features
HDCP Yes
Noise level (economic mode) 30 dB
Noise level 35 dB
Design
Placement Ceiling, Floor
Product colour White
Housing material Plastic
Product type Standard throw projector
Display
Built-in display No
Power
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power source AC
Operational conditions
Operating relative humidity (H-H) 10 - 80%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 168 mm
Depth 492 mm
Width 498 mm
Weight 16.6 kg
Logistics data
Harmonized System (HS) code 85286200

Download

PDF download:
  • Type
    Standard-kast projektor
  • Indbygget skærm
    Ingen
  • Støjniveau
    35 dB
  • Indbygget kortlæser
    Ingen
  • Fokus
    Vejledning
  • Levetid for lyskilde
    20000 t
  • Lyskilde type
    Laser
  • Ethernet LAN
    Ja
  • Wi-Fi
    Ingen
  • Antal HDMI-porte
    2
  • Antal VGA-Porte D-sub
    2
  • Lyd LR indgang
    1
  • Sammensat videoindgang
    1
  • Serie l grænsefladetype
    RS-232C
  • Kontrastforhold typisk
    20000:1
  • Projektions teknologi
    DLP
  • Naturligt aspektforhold
    WUXGA (1920x1200)
  • Lysstyrke
    6000 ANSI lumens
  • Skærmstørrelse kompatibilitet
    1016 - 7620 mm (40 - 300")
  • Strømkilde
    Vekselstrøm
  • Vægt
    16,6 kg
  • Full HD
    Yes
  • Farve
    Hvid
Panasonic

Panasonic PT-FRZ60WEJ data projector Standard throw projector 6000 ANSI lumens DLP WUXGA (1920x1200) White
