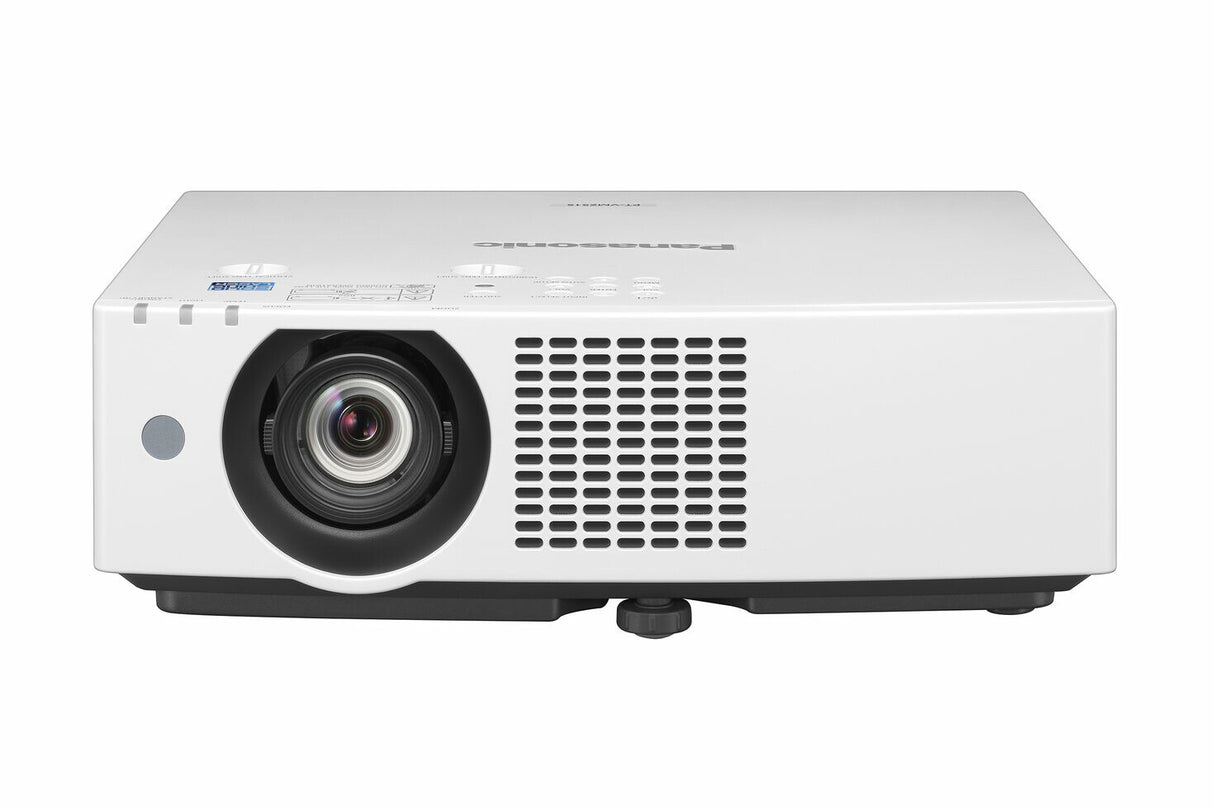

LCD, 16.3 mm (0.64"), 5200 lm, Laser, 0.76–7.62 m, WUXGA (1920 x 1200p)
High-Visibility Images in Bright Rooms
Deliver clear, striking images in well-lit open meeting spaces and classrooms from the smallest and lightest LCD laser projector in its class*1. High 7,000 lm brightness, 3,000,000:1 contrast, and vivid color creates an engaging presentation experience
Installation Flexibility Adapts Projection to Any Space
Compact 7.0 kg*2 (15.43 lbs) body takes less effort to install while 1.6x zoom, lens adjustment, and 6-Point Screen Correction allow projection almost anywhere, even in corners. Enjoy CEC command and 4K signal support via HDMI® for easy integration.
Smooth, Effortless Collaboration
Connect devices to the projector over wireless LAN just by snapping an on-screen QR Code with your phone. Share video, documents and more via PC software and apps. You can also project media from a USB flash drive.
| Projector |
|---|
| Keystone correction, horizontal |
35° |
| Keystone correction, vertical |
25° |
| Uniformity |
85% |
| Projection distance |
0.76 - 7.62 m |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Native aspect ratio |
16:10 |
| Contrast ratio (typical) |
3000000:1 |
| Projector native resolution |
1080p (1920x1080) |
| Projection technology |
LCD |
| Projector brightness |
5200 ANSI lumens |
| Light source |
|---|
| Service life of light source (economic mode) |
24000 h |
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Vertical lens shift range |
0 - 44% |
| Horizontal lens shift range |
-20 - 20% |
| Throw ratio |
1.09–1.77:1 |
| Zoom ratio |
1.6:1 |
| Aperture range (F-F) |
15.3 - 24.64 |
| Focal length range |
1.60–2.12 |
| Focus |
Manual |
| Video |
|---|
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |

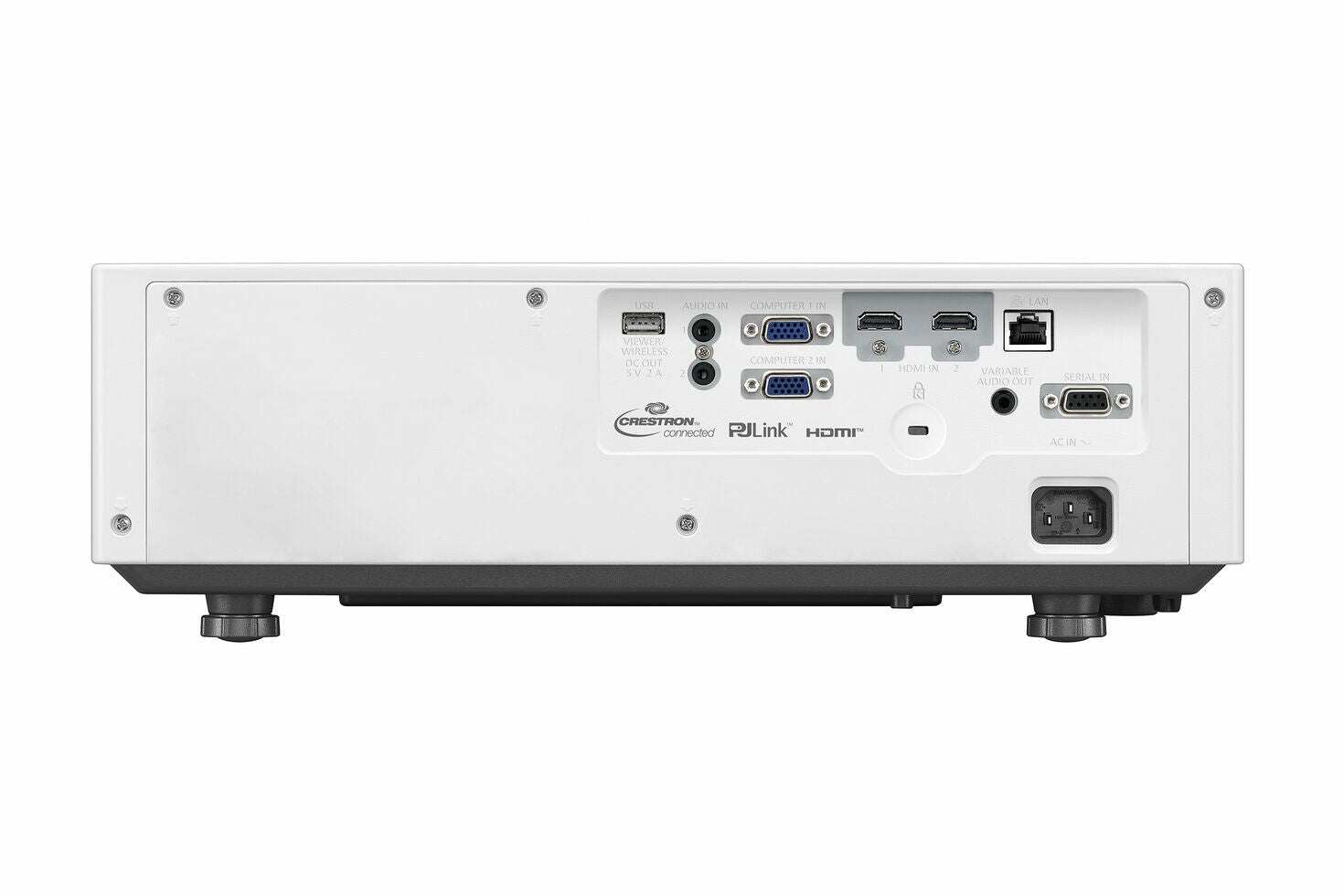

| Ports & interfaces |
|---|
| Serial interface type |
RS-232C |
| Audio (L/R) out |
1 |
| Audio (L/R) in |
2 |
| USB 2.0 Type-A ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
2 |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Features |
|---|
| HDCP |
Yes |
| Noise level (economic mode) |
26 dB |
| Noise level |
36 dB |
| Multimedia |
|---|
| RMS rated power |
10 W |
| Built-in speaker(s) |
No |
| Design |
|---|
| Product colour |
White |
| Housing material |
Plastic |
| Product type |
Standard throw projector |
| Display |
|---|
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
1.63 cm (0.64") |
| Built-in display |
Yes |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (economy mode) |
190 W |
| Power consumption (typical) |
300 W |
| Power source |
AC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Height |
115 mm |
| Depth |
348 mm |
| Width |
399 mm |
| Weight |
6.5 kg |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
