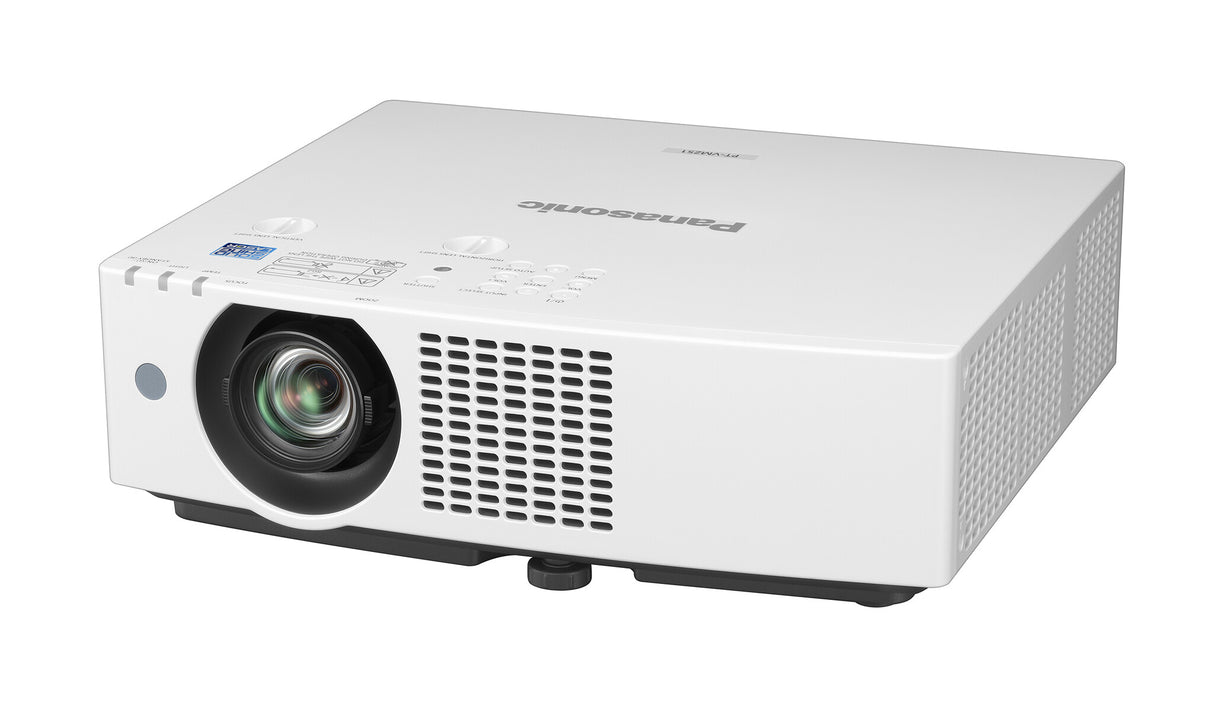

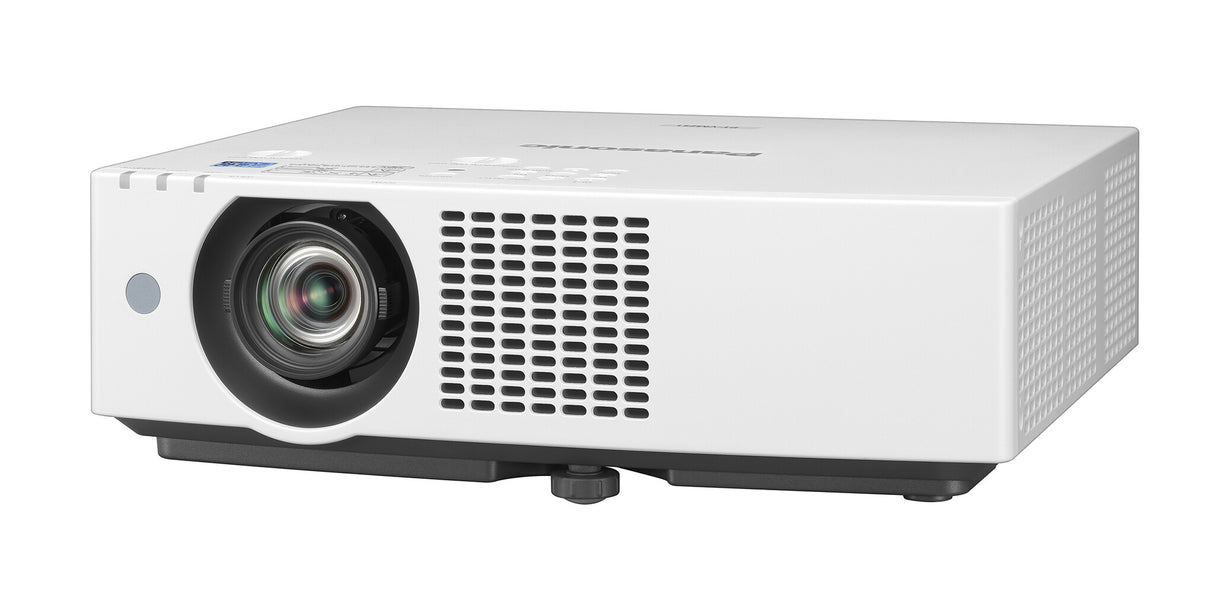

Panasonic PT-VMZ61EJ data projector Standard throw projector 6200 ANSI lumens LCD WUXGA (1920x1200) White

Varenummer: PT-VMZ61EJ

Beskrivelse

LCD, 6200 lm, WUXGA (1920 x 1200 pixels), 16:10, 3.000,000:1, AC 100 V–240 V, 50/60 Hz

Introducing the world’s smallest and lightest LCD laser projector in its class, bringing smooth styling and quiet operation to seamlessly harmonise with your interior space

Weighing just 7.0 kg, the PT-VMZ71 series is the smallest and lightest LCD laser projector in its class with up to 7,000 lm of brightness from a compact, easy-to-manage body. Its lightweight design makes it portable enough to carry from room to room, and simple to install on almost any ceiling. The projector’s smooth styling and quiet operation will harmonise with your interior space, blending in and keeping attention focused on the presentation.

Bright, High-Visibility Images in Well-Lit Spaces
Because office and classroom projectors are used with the room lights on and window blinds open, they need high light output to produce a bright image. Thanks to a carefully refined optical engine, the PT-VMZ71 series generates up to 7,000 lm of brightness, more than most professional projectors of a similar size. Dim, washed out projections are history: expect big, bright, vivid pictures in bright environments to stimulate viewer engagement with the lesson or meeting content.

New 6-Point Screen Adjustment for Projection into Room Corners
The PT-VMZ71 series is the first Panasonic projector to feature 6-Point Screen Correction. It allows you to perform 4-Corner and Horizontal/Vertical Keystone Correction via remote control to remove trapezoidal distortion when projecting from an angle, such as a high ceiling. An extra two control points located at center top and bottom of the screen can be used to remove distortion when projecting an image into the corner of a room.

New Digital Zoom Extender Function
In some cases, the throw-distance required to produce an image at the desired size might exceed the projector’s optical zoom range. Panasonic answers the problem with a new Digital Zoom Extender function equipped for the first time on the PT-VMZ71 series. It provides a convenient way to fit the image to your screen beyond optical zoom range, reducing the need to relocate your projector mounts and potentially saving you time, money, and hassle on your next refreshment cycle.

Specifikationer

Projector
Keystone correction, horizontal -35 - 35°
Keystone correction, vertical -25 - 25°
Matrix size 1.63 cm (0.64")
Uniformity 85%
Projection distance 0.76 - 7.62 m
Screen size compatibility 762 - 7620 mm (30 - 300")
Smart projector No
Supported aspect ratios 16:10
Native aspect ratio 16:10
Contrast ratio (typical) 3000000:1
Projector native resolution WUXGA (1920x1200)
Projection technology LCD
Projector brightness 6200 ANSI lumens
Light source
Service life of light source (economic mode) 24000 h
Service life of light source 20000 h
Light source type Laser
Lens system
Vertical lens shift range 0 - 44%
Horizontal lens shift range -20 - 20%
Throw ratio 1.09 - 1.77:1
Zoom ratio 1.6:1
Zoom type Manual
Zoom capability Yes
Aperture range (F-F) 1.6 - 2.12
Focal length range 15.3 - 24.64 mm
Focus Manual
Video
3D No
Ports & interfaces
Consumer Electronics Control (CEC) support Yes
DC-in jack Yes
PC in (D-Sub) Yes
AUX in Yes
PC Audio out Yes
PC Audio in Yes
Serial interface type RS-232C
Headphone outputs 1
USB 2.0 ports quantity 1
DVI port No
HDMI ports quantity 2
VGA (D-Sub) ports quantity 2
Network
Wi-Fi No
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN Yes
Smart TV No
Storage
Card reader integrated No
Features
Air filter Yes
AirPlay Yes
On Screen Display (OSD) Yes
HDCP Yes
Noise level (economic mode) 26 dB
Noise level 36 dB
Interactive No
Multimedia
RMS rated power 10 W
Number of built-in speakers 1
Built-in speaker(s) Yes
Design
LED indicators Yes
Placement Ceiling, Floor
Product colour White
Housing material Plastic
Market positioning Portable
Product type Standard throw projector
Display
Built-in display No
Power
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power consumption (economy mode) 240 W
Power consumption (max) 370 W
Power consumption (standby) 0.5 W
Power consumption (typical) 335 W
Power source AC
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Height 115 mm
Depth 348 mm
Width 399 mm
Weight 6.9 kg
Packaging content
Remote control included Yes
Logistics data
Quantity per pack 1 pc(s)
