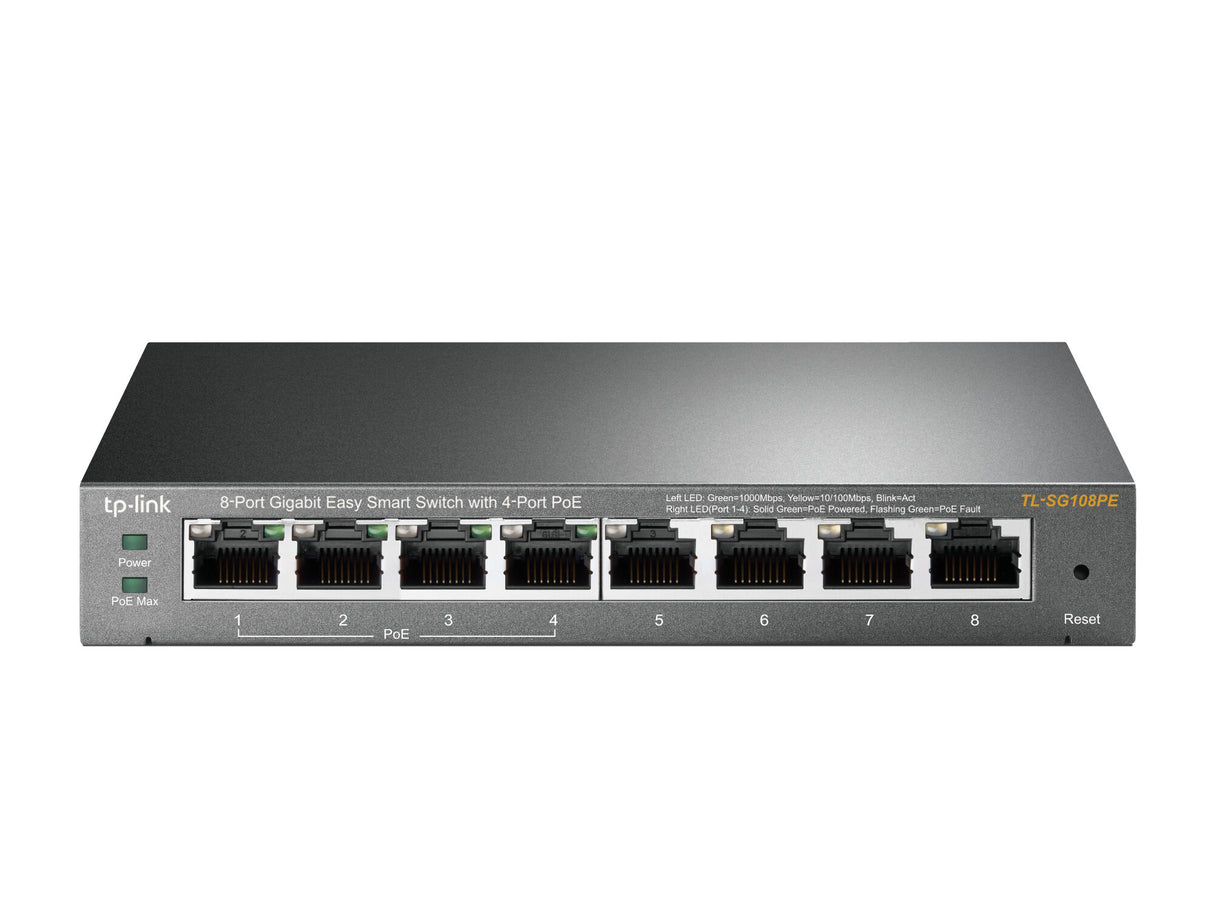

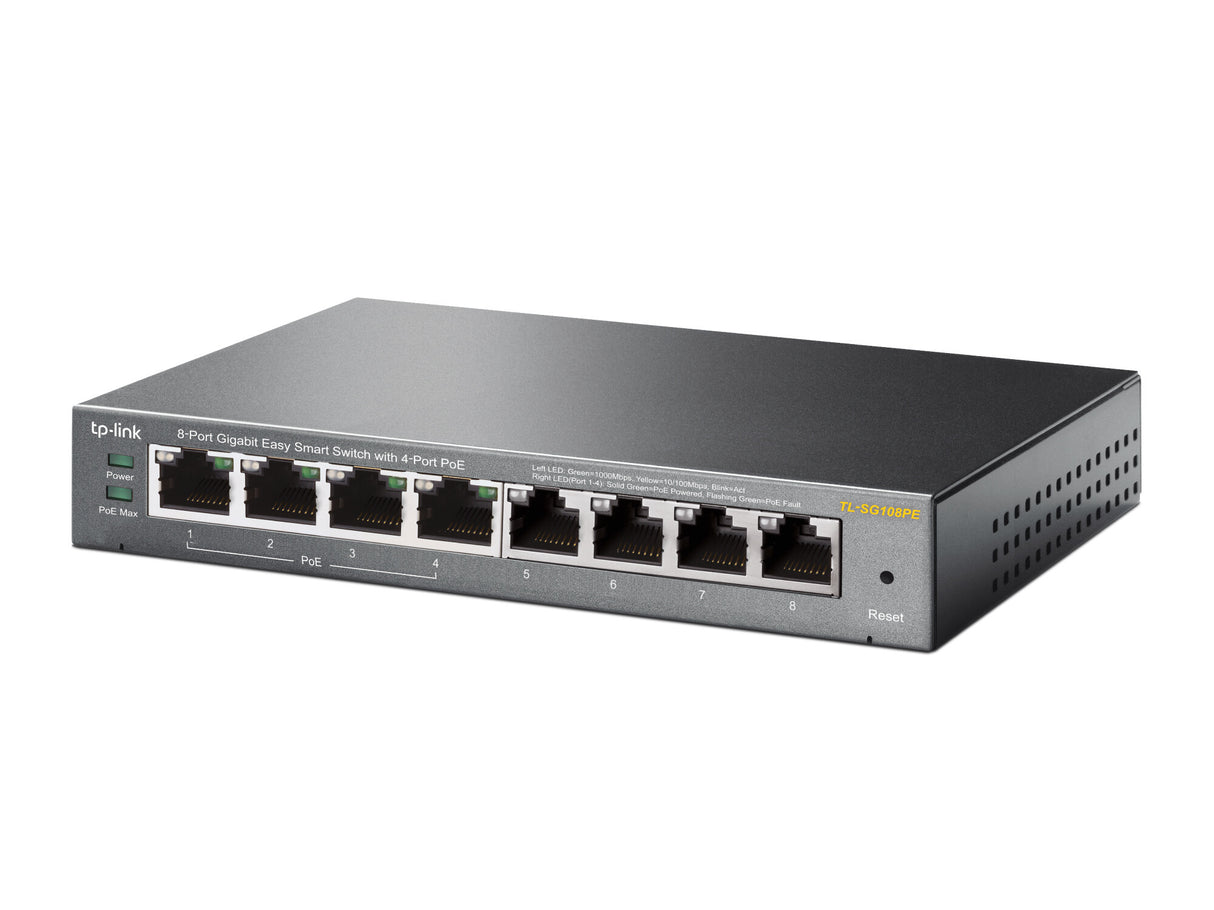

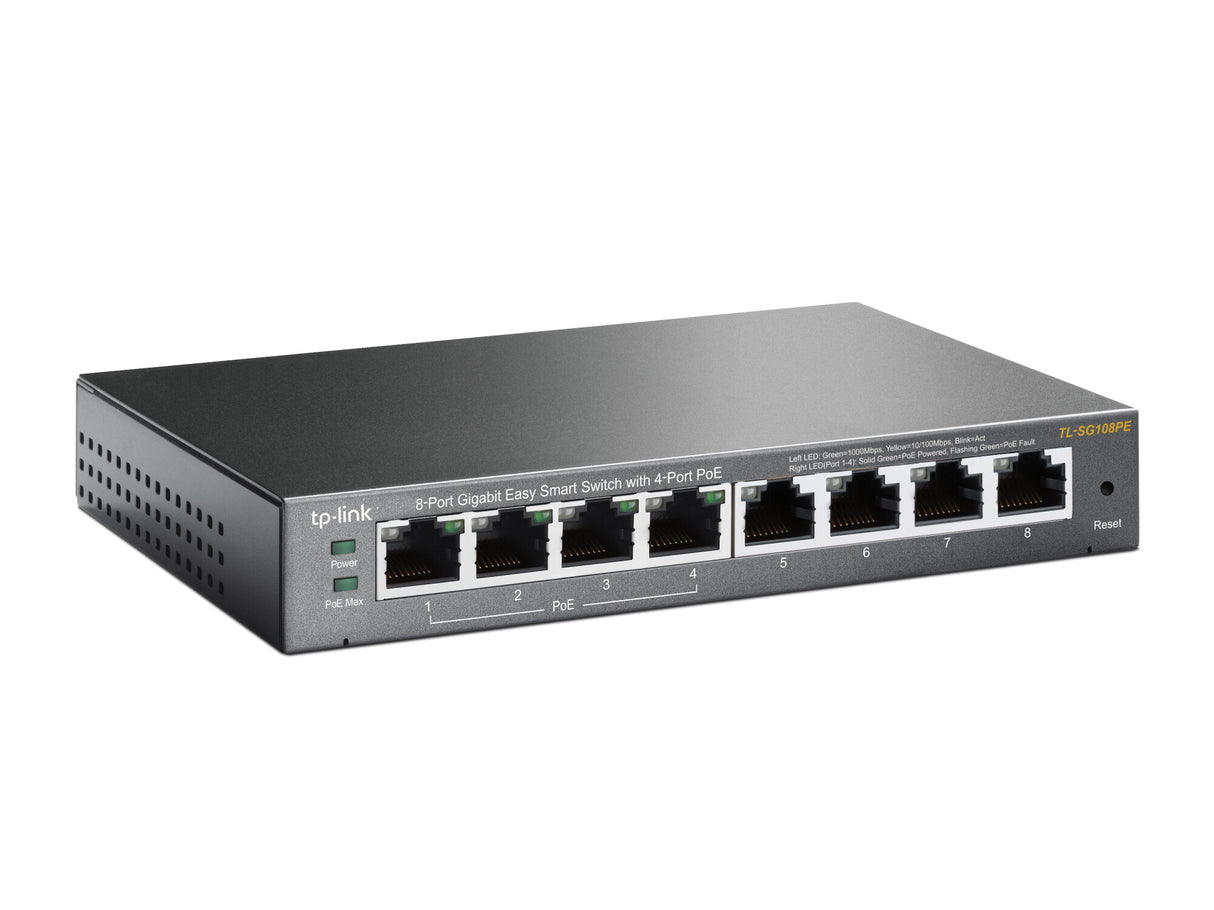

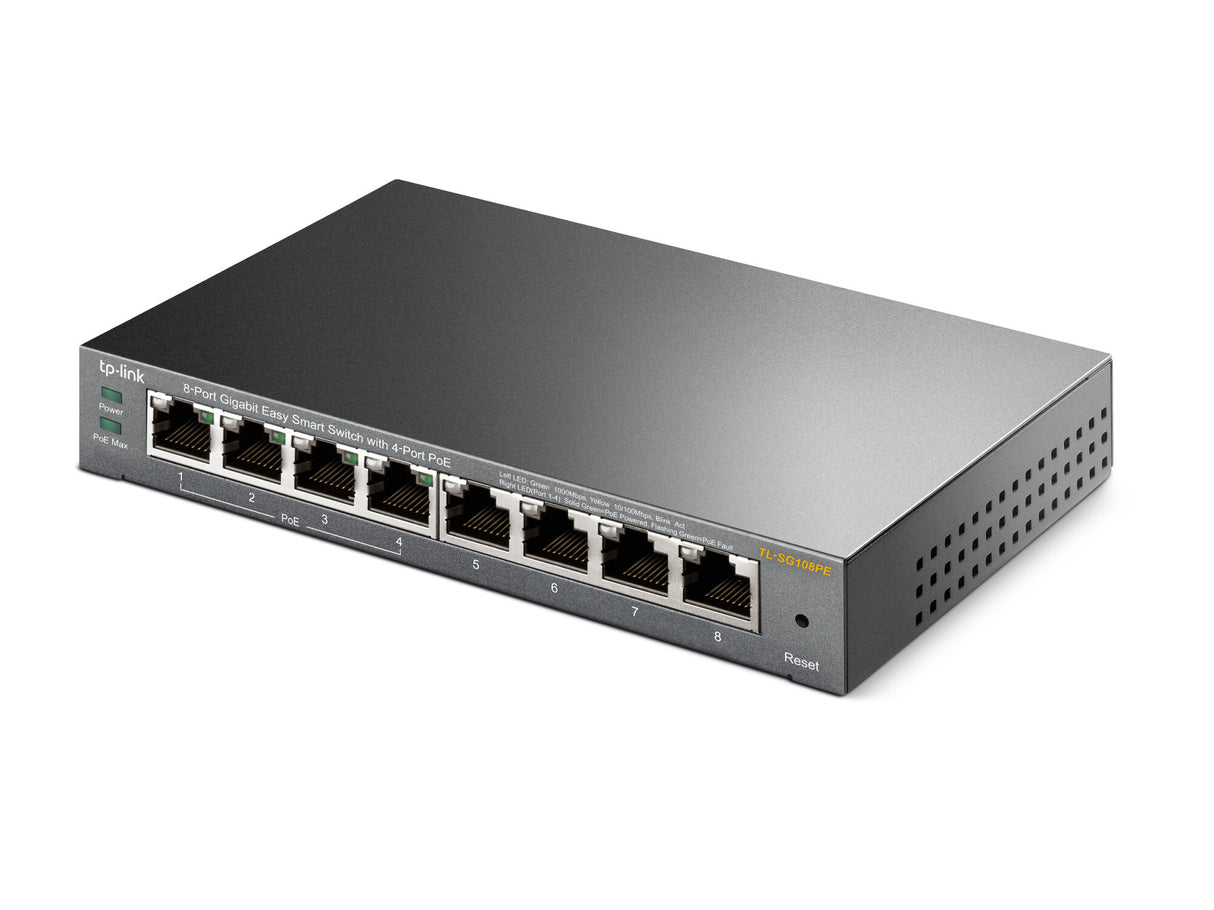

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE
Beskrivelse
Beskrivelse
PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifikationer
Specifikationer
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Packet forwarding rate (1 Gbps) | 11900000 pps |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 11.9 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
|---|---|
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (max) | 65.2 W |
| Input voltage | 48 V |
| Input current | 1.25 A |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 256.19 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 101 mm |
| Width | 158 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package weight | 890 g |
| Package height | 121 mm |
| Package depth | 196 mm |
| Package width | 131 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Certification | FCC, CE, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
