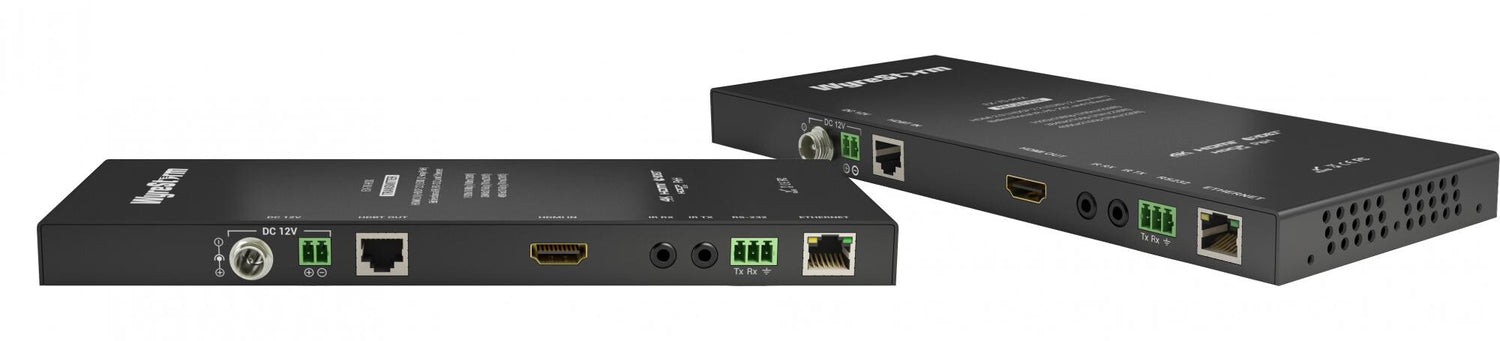

EX-70-H2X - 4K UHD HDBaseT Extender Set with 5Play™ (4K: 70m/230ft | 1080p: 100m/328ft)
As our latest flagship HDBaseT extender supporting HDR, HDMI 2.0 video standards and HDCP 2.2 encryption, the EX-70-H2X is designed for unrivalled compatibility with the very latest 4K Ultra HD content, sources and displays for unmatched point-to-point delivery of stunning HDR content.
With feature-rich Class A HDBaseT 5Play™, the EX-70-H2X handles all signal distribution needs in any environment where 4K UHD HDR video, 2ch PCM and multichannel audio up to 7.1, DTS-X/Dolby Atmos, bidirectional IR and RS-232, Ethernet passthrough and power is required along a single Cat6 cable over an distances up to 70m/230ft (4K).
Featuring an enhanced chipset to ensure compatibility with current and future UHD source devices, including those outputting 4K HDR content, the EX-70-H2 offers full compatibility with the latest UltraHD content and HDMI 2.0 video standards for transmission up to 4K UHD @30hz 4:4:4 24bit and 4K HDR @24Hz 4:2:0 10bit (BT.2020).
With the ultimate convenience and ease of installation in mind, the EX-70-H2X features transmitter EDID adjustment, 2-way PoH to enable the EX-70-H2X to be remotely powered from either TX or RX, and a slimline chassis for discreet and flexible placement behind even the slimmest wall mount.
- 4K UltraHD extender set capable of transmitting AV content over long distances using single cable Cat6 cable
- Supports all high definition resolutions up to and including 4K UHD @30hz 4:4:4 24bit | 4K HDR @24Hz 4:2:0 10bit (BT.2020) - see specification tab for full details
- Robust Class A HDBaseT transmission technology for stable distribution and control of 4K HDR transmission up to 70m/230ft or 1080p @60Hz 36bit up to 100m/328ft
- HDBaseT 5Play feature set supporting distribution of video, audio, control, power and Ethernet passthrough
- Revised chipset increases compatibility with new 4K UHD source devices
- Two-way PoH (Power over HDBaseT) enables either transmitter or receiver to be remotely powered by the other locally powered so mains power connectivity is not required at both source and display location
- Transmits discreet wide-band two-way IR control signal / serial control commands together within HDMI signal over a single Cat5e/6

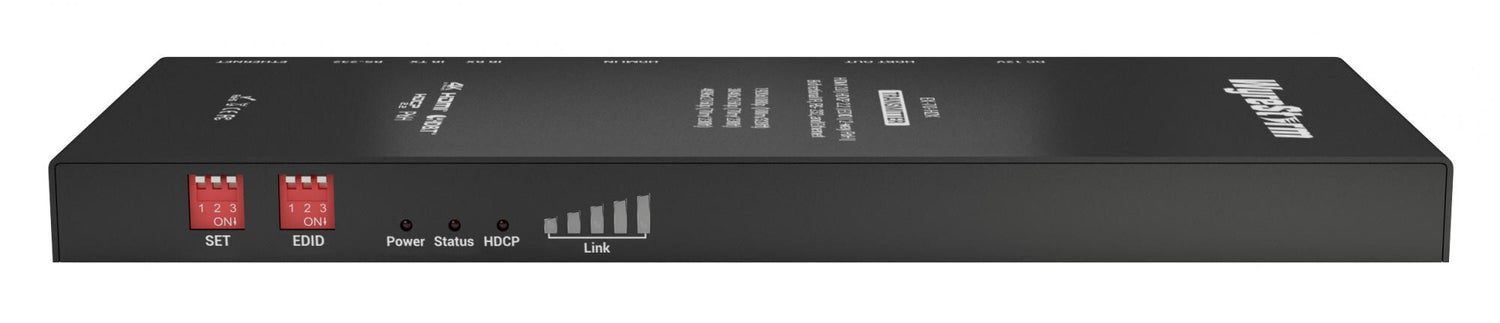

- EDID adjustment on transmitter (TX)
- Slimline chassis of 25mm for easier, more convenient installations behind screens at display zones.
- 2ch PCM audio and multichannel HD audio supports 7.1, DTS-X and Dolby Atmos
- HDCP 2.2 compliant
- 3D compatible
- Switchable RS-232 function mode on transmitter and receiver for firmware update
