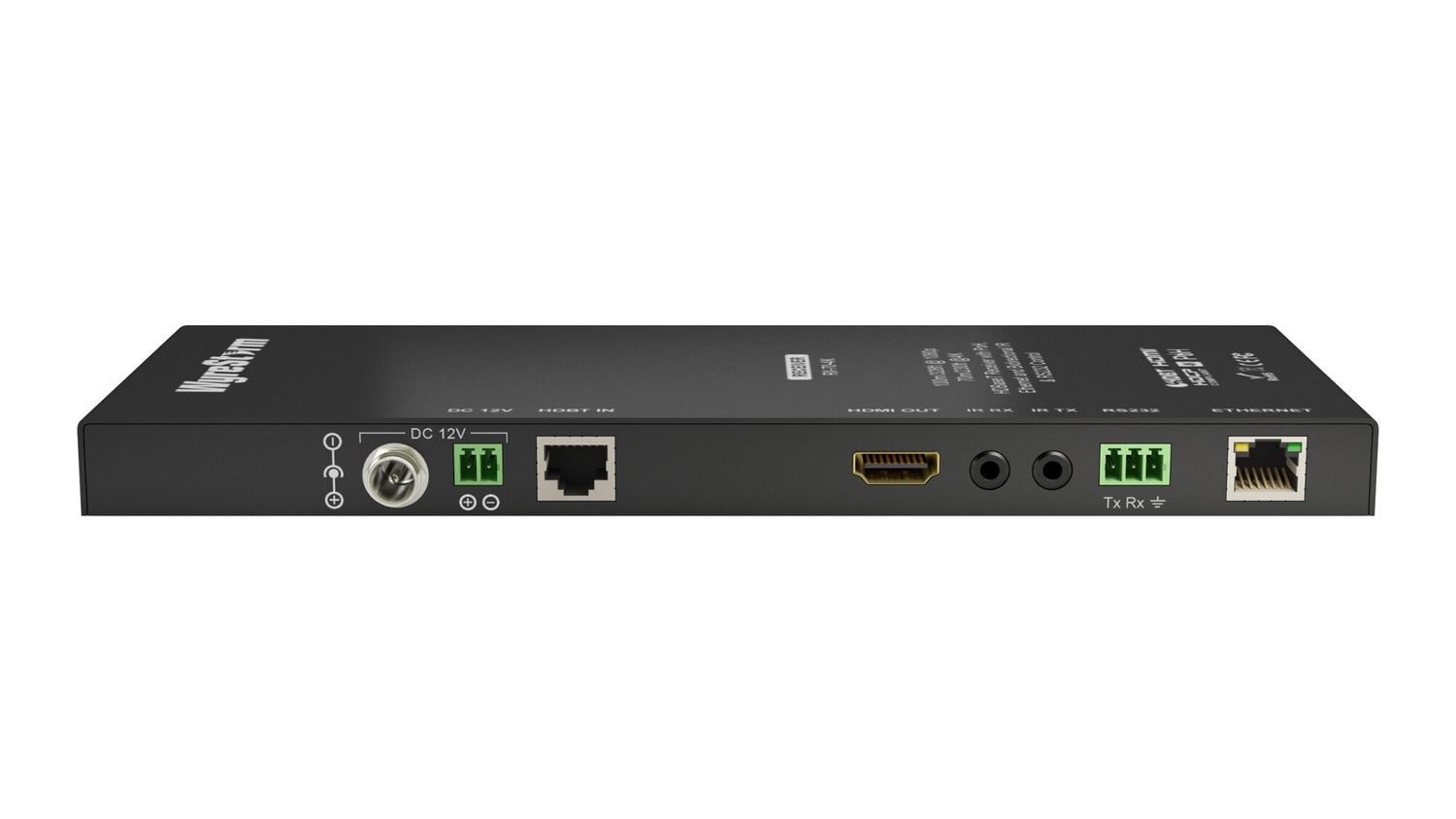

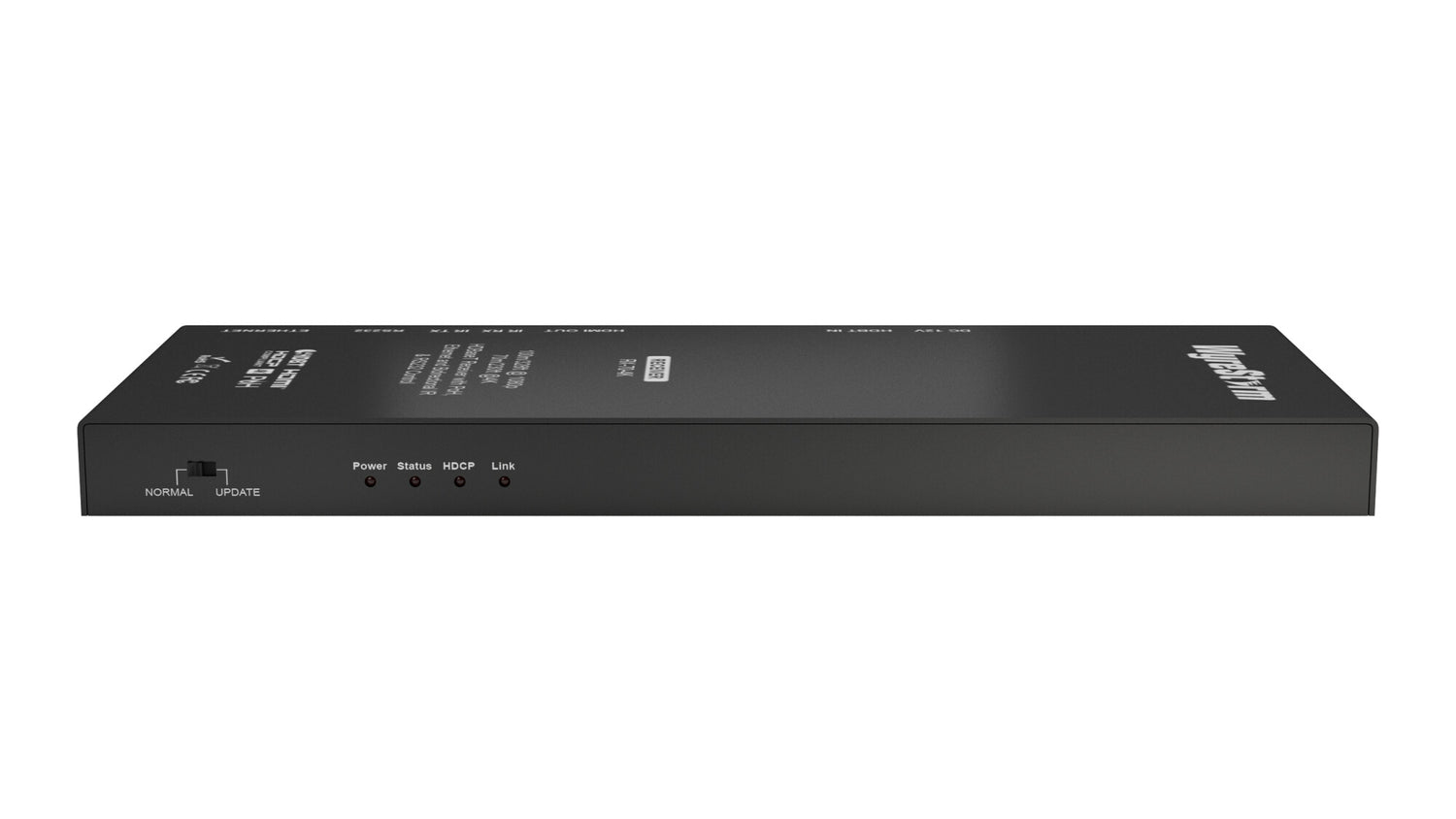

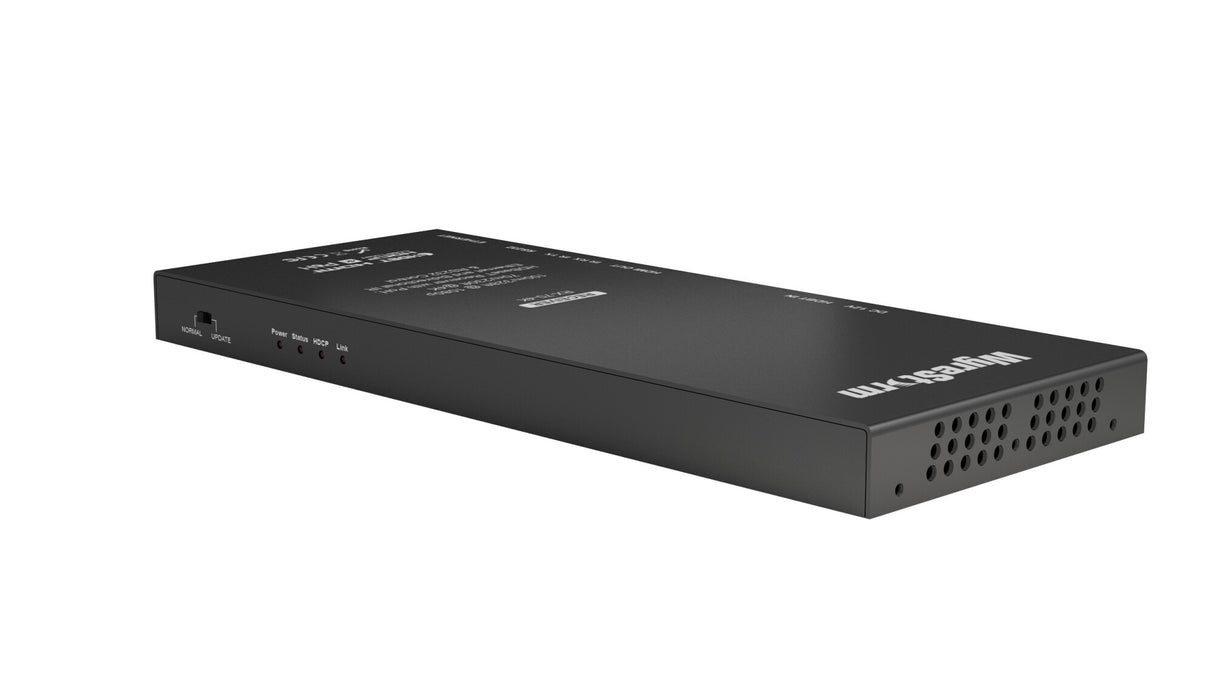

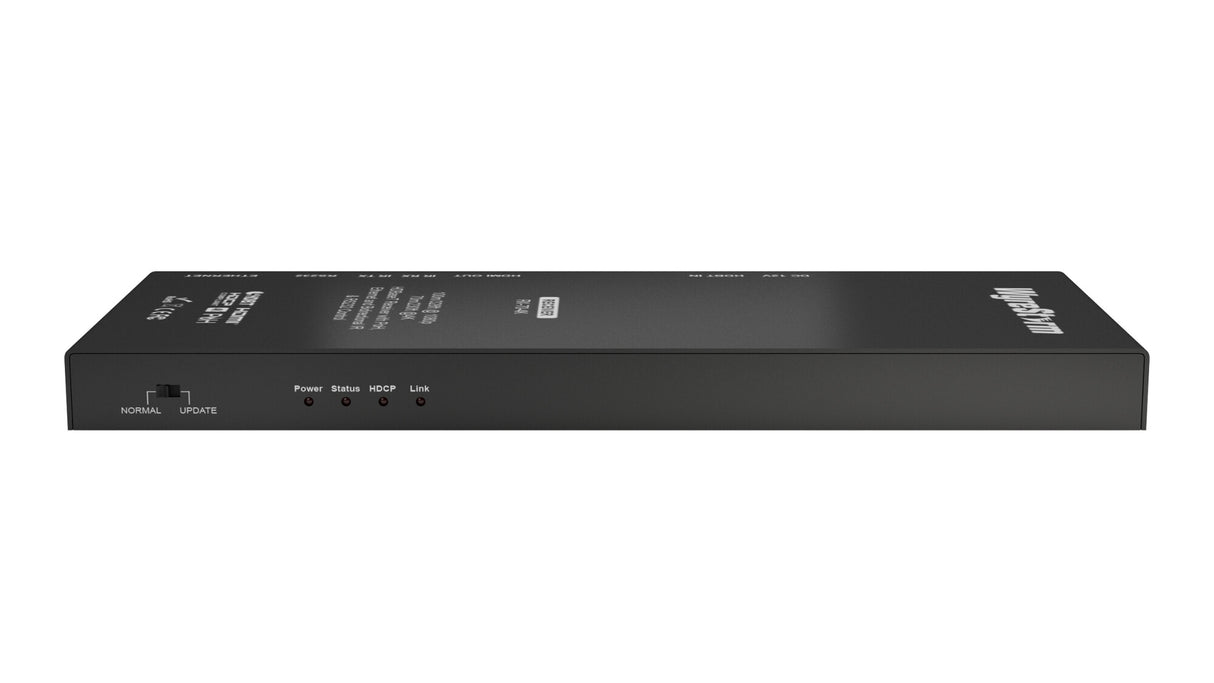

WyreStorm RX-70-4K video switch HDMI
Beskrivelse
Beskrivelse
UltraHD, Ultra Thin.
The perfect compliment to the MX-0808-PP-POH-4K matrix switcher, the RX-70-4K ultraHD, ultra slim display receiver supports 4K video up to 70m/230ft and 1080p/48bit @60Hz to 100m/328ft.
HDBaseT 5Play compliance offers, HD video, HD audio, bidirectional control via IR and RS-232, PoH remote power of device and Ethernet passthrough, all wrapped up in an impossibly thin chassis for an ease of installation that represents unrivalled function, flexibility and reliability for residential or commercial applications of any kind.
Key Features:
- Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft
- HDBaseT 5Play support: video, audio, 2-way IR and Ethernet, Power-over-HDBaseT (PoH)
- Supports serial routing when used as part of an MX-0808-PP-POH-4K matrix system
- CEC pass-through
- Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall plates
Specifikationer
Specifikationer
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RS-232 ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Video port type | HDMI |
| Features | |
|---|---|
| HDCP | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480i, 576i, 576p, 720p, 1080i, 1080p |
| LED indicators | Power, Status |
| Maximum operating distance | 100 m |
| Bandwidth | 297 MHz |
| 3D | Yes |
| Dolby technologies | Dolby TrueHD |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (typical) | 11.8 W |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 172 x 94 x 18 mm |
| Weight | 400 g |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
