WyreStorm TX-SW-0201 AV extender AV transmitter & receiver Black
Beskrivelse
Beskrivelse

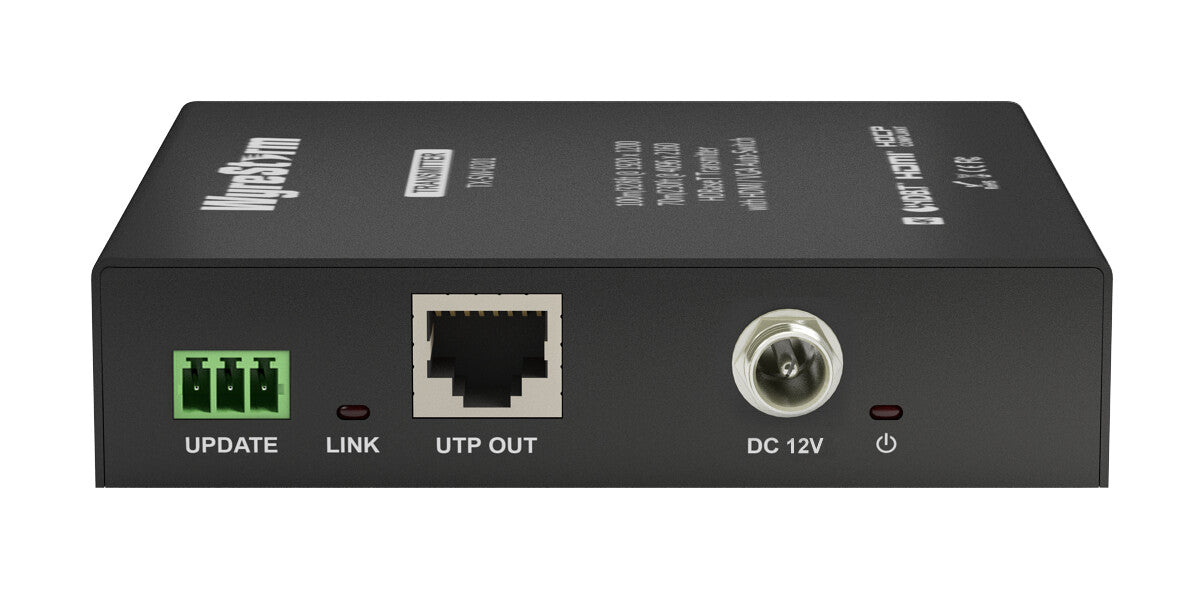

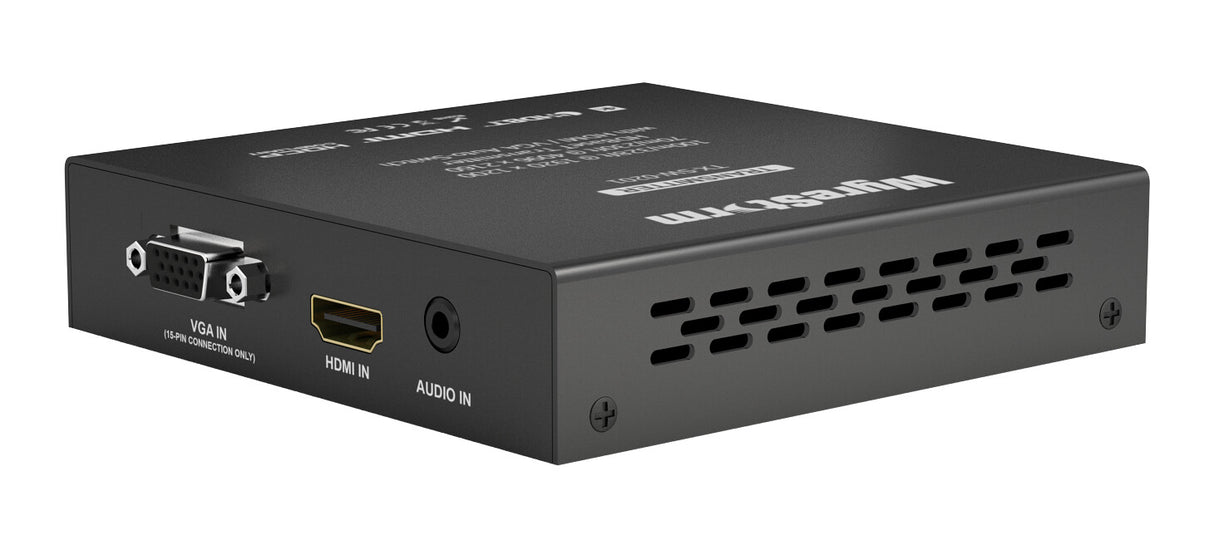

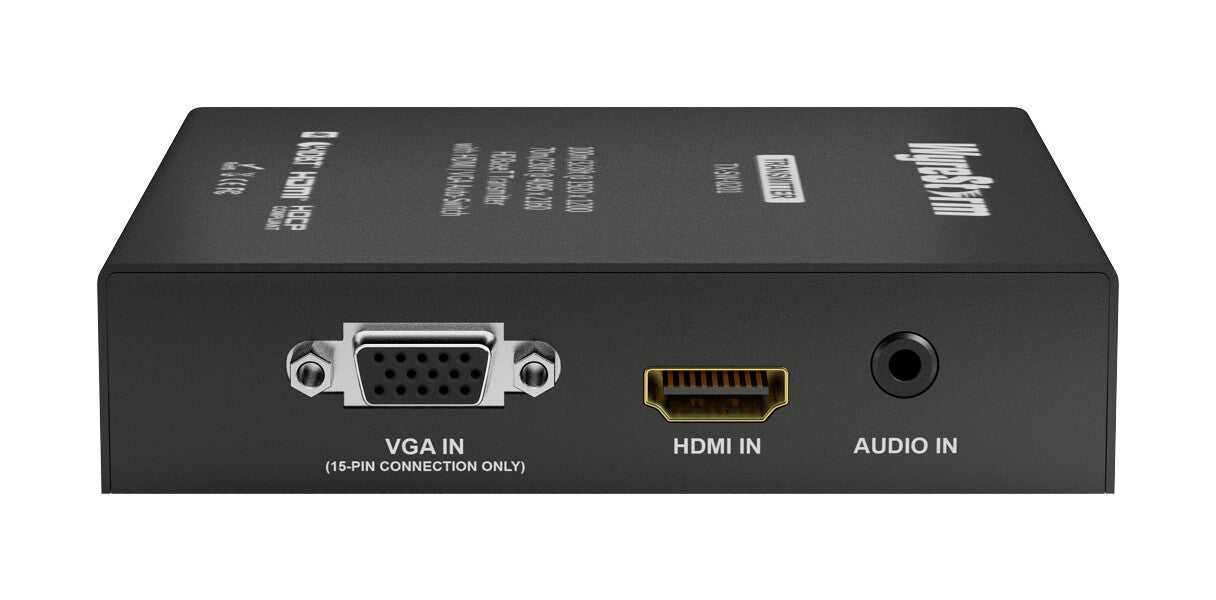

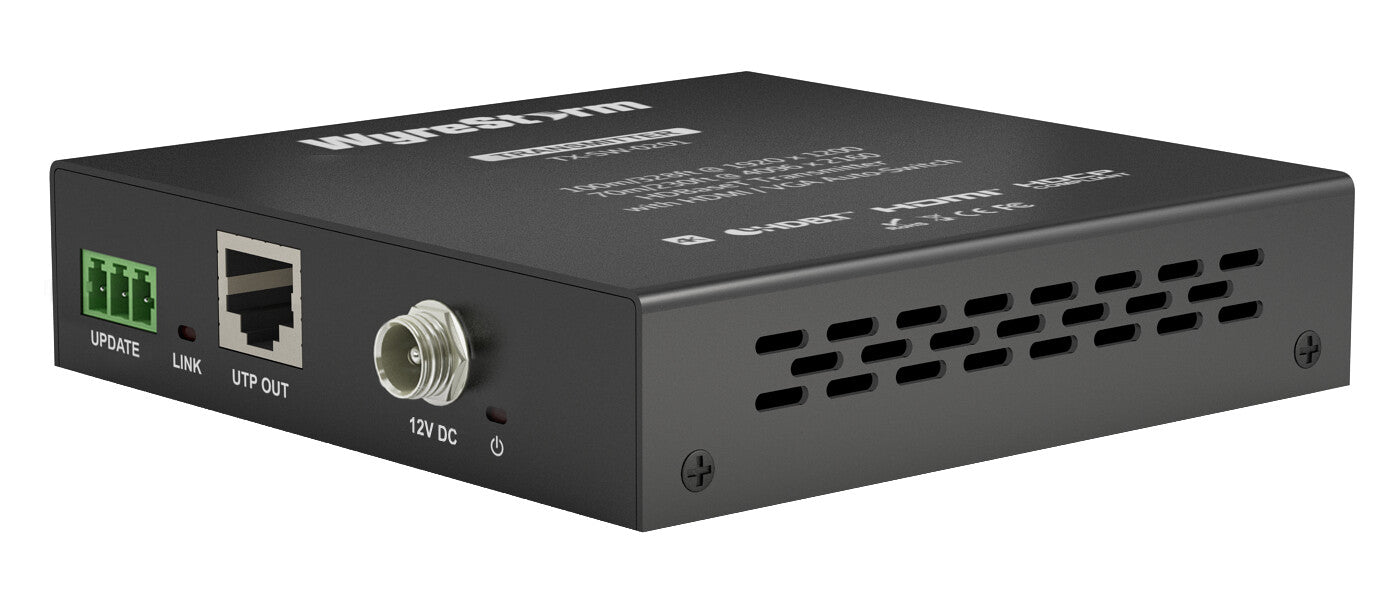

The WyreStorm TX-SW-0201 is a 4K compatible dual-input transmitter designed to distribute a VGA or HDMI signal to a display device with integrated HDBaseT receiving capabilities, such as a display or projector, over distances up to 70m/230ft (4K) and 100m/328ft (HD) using a single Cat5e/6 cable.
With simple plug-and-play connectivity and auto-switching between connected inputs, the TX-SW-0201 is ideal for small meeting room or classroom environments where effortless switching between VGA and HDMI sources is required.
Key Features:
- Transmits 4K and HD video and audio using HDBaseT via a single Cat5/6 cable directly into an HDBaseT-enabled projector or display
- Connect, auto-switch and transmit signals from both VGA and HDMI sources
- Audio input embeds audio with the VGA signal
- Fully compatible with HDBaseT input-enabled projectors from leading manufactures such as Epson, Sony, Panasonic and Digital Projection
- Can create highly scalable AV distributions systems by combining with WyreStorm modular matrixes, presentation switchers and audio amplifier receiver, any HDBaseT display receivers and scaler/downmixer
Specifikationer
Specifikationer
| Features | |
|---|---|
| Certification | CE, FCC |
| Product colour | Black |
| Supported video modes | 1080p |
| LED indicators | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Colour depth | 48 bit |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat7 |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Audio input | 1 |
| HDMI version | 1.4a |
| HDMI in | 1 |
| VGA (D-Sub) input ports | 1 |
| RJ-45 output ports | 1 |
| Ethernet LAN | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 35 W |
| Input current | 1 A |
| Operating voltage | 12 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Dimensions (WxDxH) | 108 x 106.7 x 25 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
