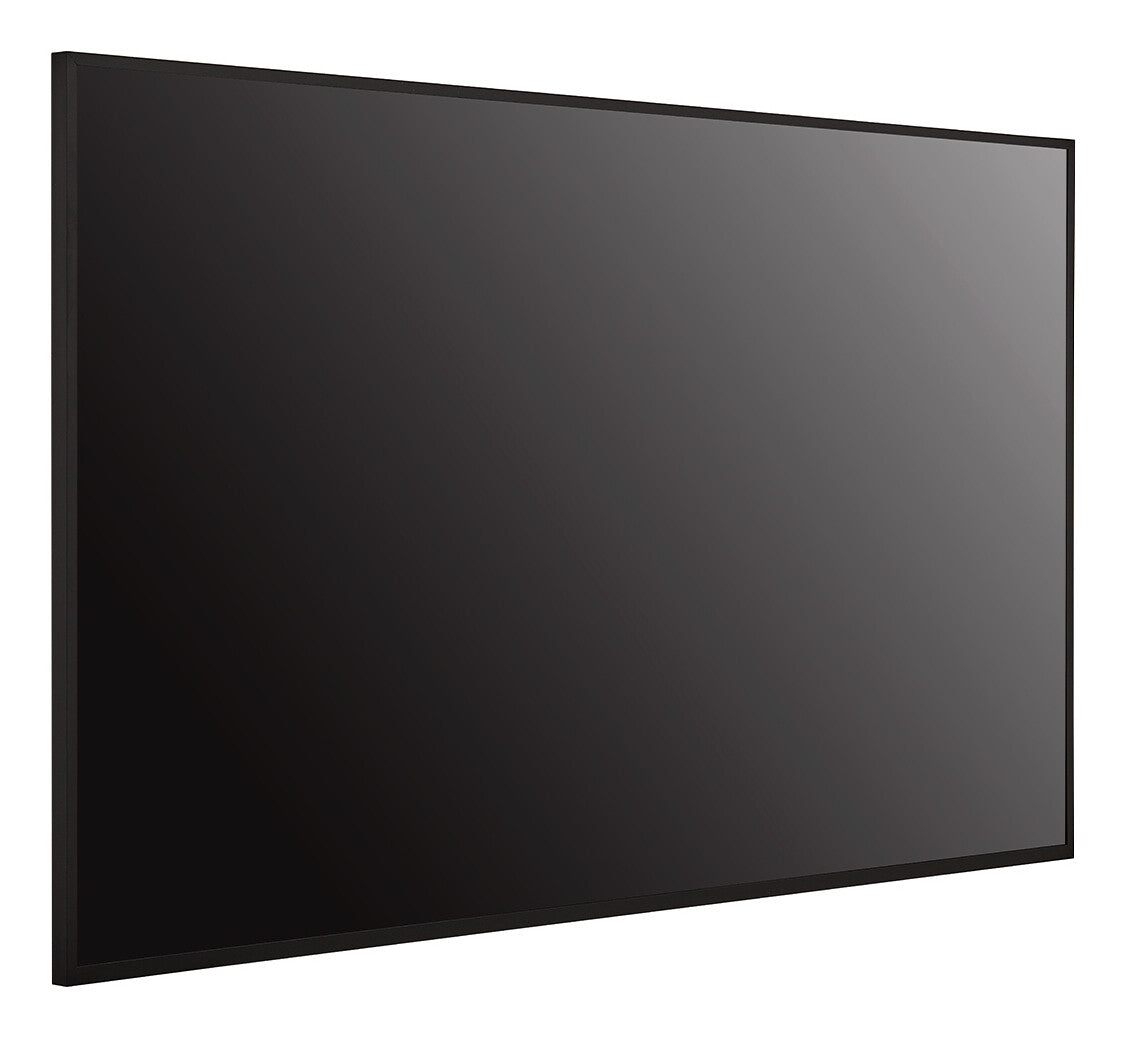

55", 4K UHD (3840 x 2160), IPS, 500 nit, 8 ms, IP5X, SoC, Wi-Fi, PIP, PBP, Pro:Idiom, Beacon, Control Manager, SuperSign CMS, webOS 6.0
UHD Signage Display with LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
Design for Space Utilization

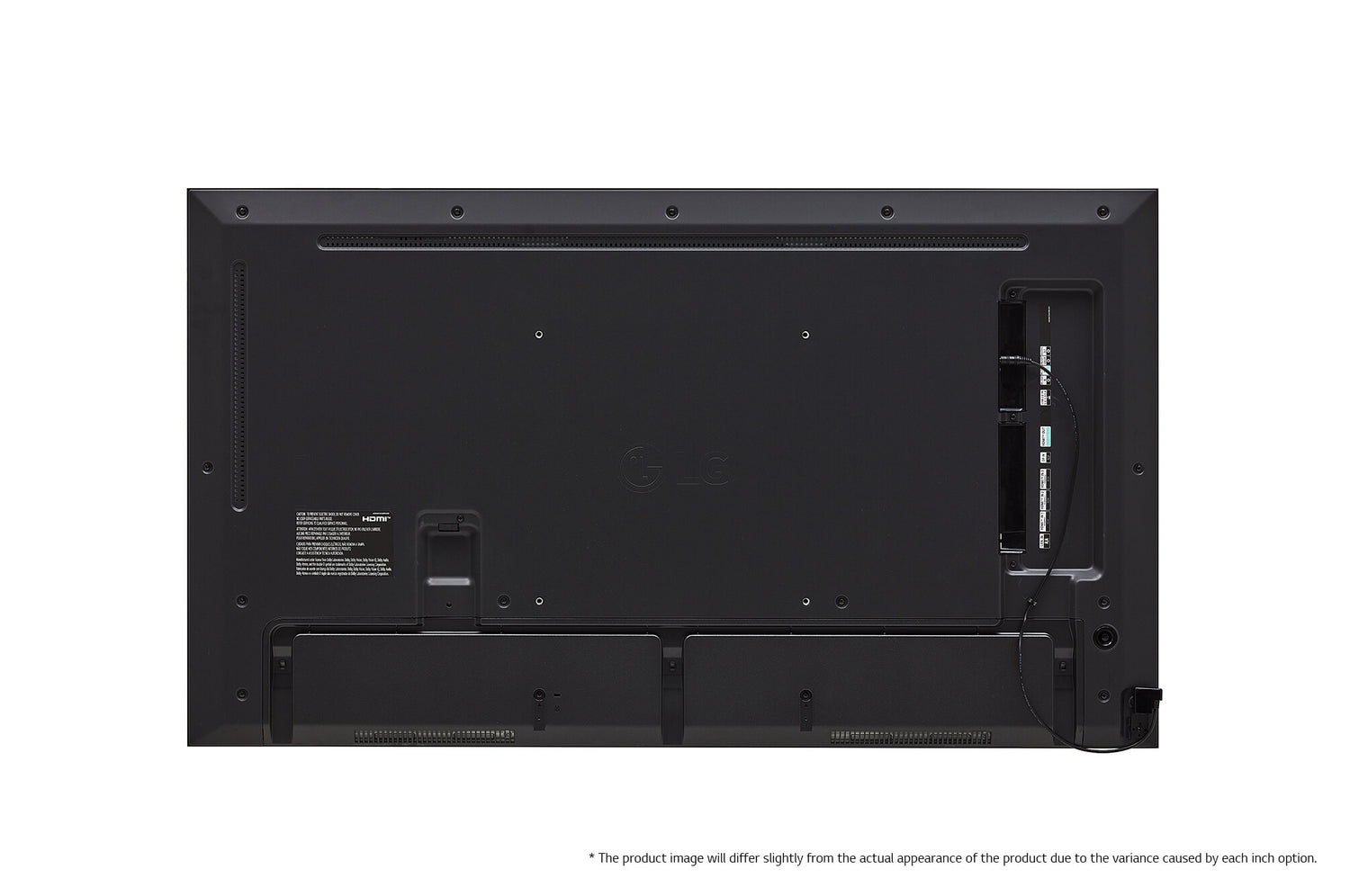

Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.
Enhanced Security Features
The UH5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
| Display |
|---|
| Colour gamut |
95% |
| Colour depth |
10 bit |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| Panel life |
50000 h |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
1000000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Edge-LED |
| Panel type |
IPS |
| LED backlight |
Yes |
| Display technology |
LCD |
| Display diagonal |
139.7 cm (55") |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB connector type |
USB Type-A |
| USB version |
2.0 |
| USB ports quantity |
1 |
| USB port |
Yes |
| DisplayPorts quantity |
1 |
| DVI port |
No |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
3 |
| HDMI ports quantity |
4 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel width (top) |
8.9 mm |
| Bezel width (side) |
8.9 mm |
| Bezel width (bottom) |
1.29 cm |
| Panel mounting interface |
300 x 300 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| International Protection (IP) code |
IP5X |
| HDCP version |
1.4/2.2/2.3 |
| Automatic brightness control |
Yes |
| Operating hours (hours/days) |
24/7 |
| On Screen Display (OSD) |
Yes |
| Picture-in-Picture |
Yes |
| Purpose |
Universal |
| Power |
|---|
| AC input frequency |
50-60 Hz |
| AC input voltage |
100-240 V |
| Energy efficiency class (SDR) |
G |
| Power consumption (max) |
160 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
110 W |
| Computer system |
|---|
| Operating system version |
6.0 |
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Computer system type |
System on Chip (SoC) |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
16.1 kg |
| Display height |
707.2 mm |
| Display depth |
29.7 mm |
| Display width |
1231.4 mm |
| Packaging data |
|---|
| Package weight |
20.5 kg |
| Package height |
801 mm |
| Package depth |
161 mm |
| Package width |
1360 mm |
| Packaging content |
|---|
| Cables included |
AC, Phone |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Real Time Clock (RTC) |
Yes |
| Other features |
|---|
| Plug and Play |
Yes |
| Power consumption (PowerSave) |
77 W |
| Audio output |
1 |
